2.3.2 Activity and Link LEDs

2.3.2.1 Verifying the Network Connectivity and Data Rate
When you plug in the Ethernet cable or power supply to the Intercom, the following occurs:
•
•
Operations Guide
The square, GREEN Link/Activity LED blinks when there is network activity (see
The square, AMBER 100 Mb Link LED above the Ethernet port indicates that the 
network 100 Mb connection has been established (see
Installing the Singlewire InformaCast Office Ringer
Connecting an Auxiliary RGB Strobe to the Device

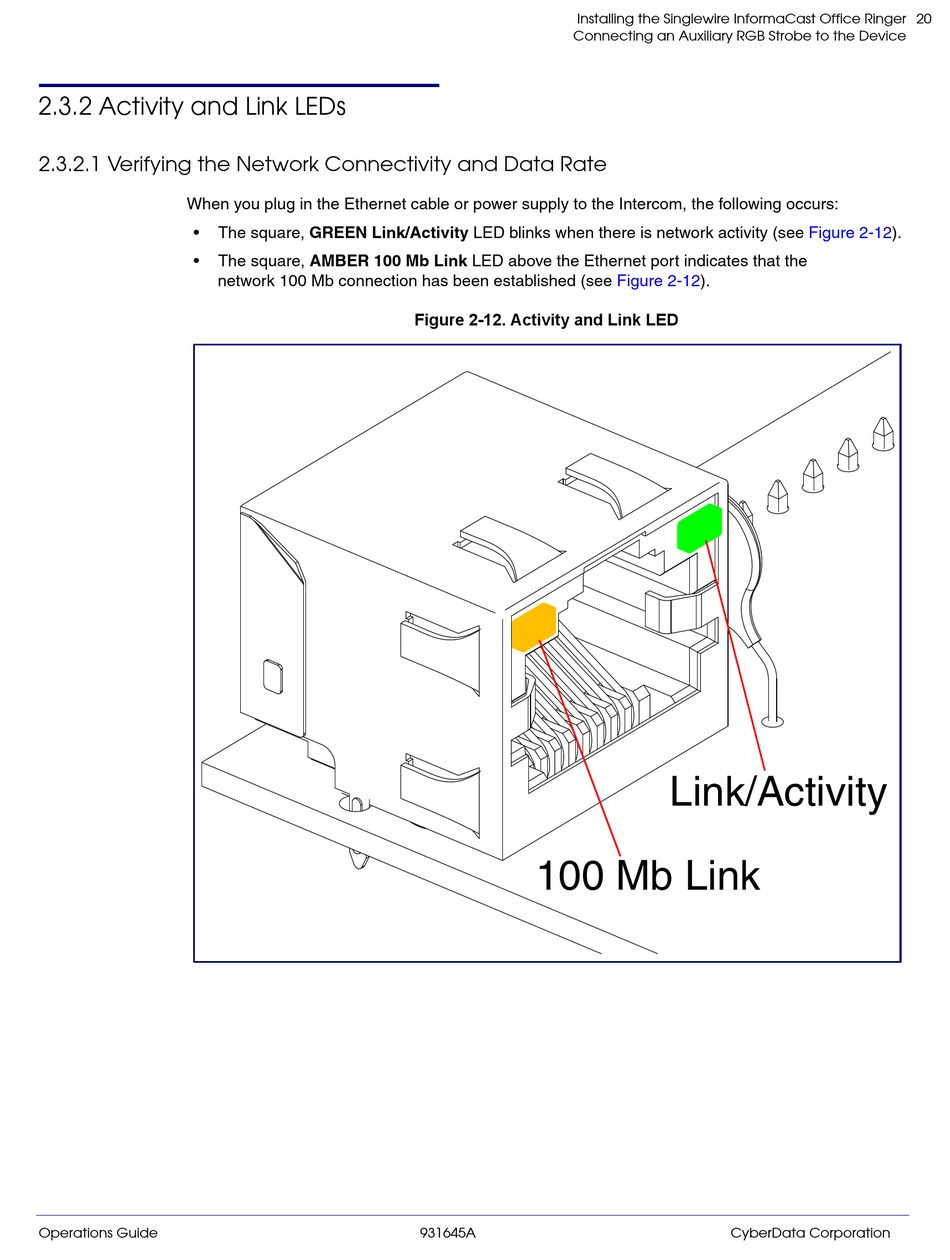

Figure 2-12. Activity and Link LED
100 Mb Link
931645A
Figure 2-12).
Link/Activity
CyberData Corporation
20
Figure 2-12).
