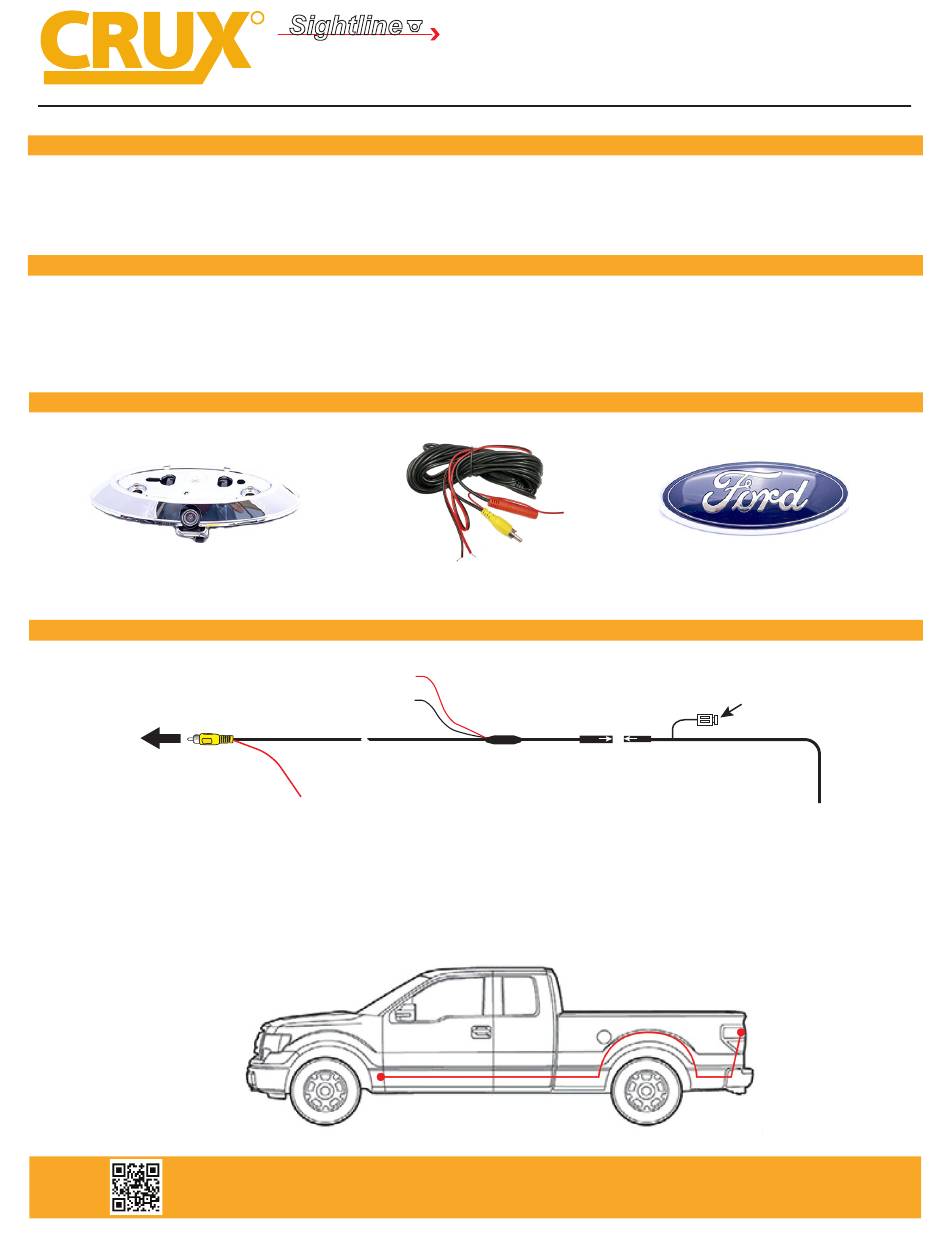

Crux CFD-03E Quick Start Manual

INTERFACING SOLUTIONS
PRODUCT FEATURES:
- Specially designed for the Ford truck for an OEM look.
- 160 degree wide view angle for excellent visibility.
- Super CMOS technology provides a sharper picture day and night.
VEHICLE APPLICATIONS:
FORD
2004 - 2012 F-150
2008 - 2014 F-250
2008 - 2014 F-350

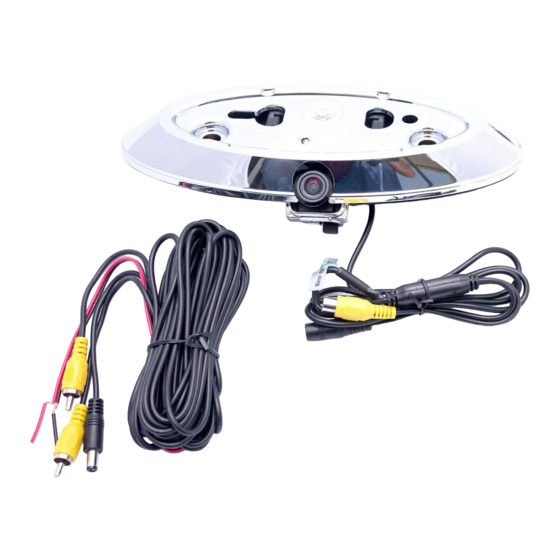

PARTS INCLUDED:
CFD-03E CAMERA BASE
WIRING DIAGRAM:
To Aftermarket Radio
Backup Camera Input
OR
Reverse Camera Interface
Backup Camera Input
*NOTE: To power the camera, use RED Wire A or B. If tapping power from the radio or RVC Interface, make sure to
insulate RED Wire A to avoid it from shorting. If you will be tapping power from the reverse light +12V, insulate RED
Wire B to avoid it from shorting. With either connection the Black GROUND wire needs to be connected to a solid chassis
ground. For vehicles with manual transmission, we recommend tapping +12V power from the reverse light.
PARKING LINES: Unplug the jumper to turn on parking guide lines.
Crux Interfacing Solutions • 6860 Canby Ave., Suite 116, Reseda, CA 91335
Sightline
R
CAMERAS
RED Wire (A)*
GROUND
Extension Coax Cable
RED Wire (B)*
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
EXTENSION CABLE
Make sure the arrows
Regulator
line up and push in
the connectors well.
1 / 2
CFD-03E
FORD Emblem Camera
for Select Ford Trucks
OEM FORD EMBLEM
WHITE Wire
Parking Guideline
(see Instructions below)
rev.052318
