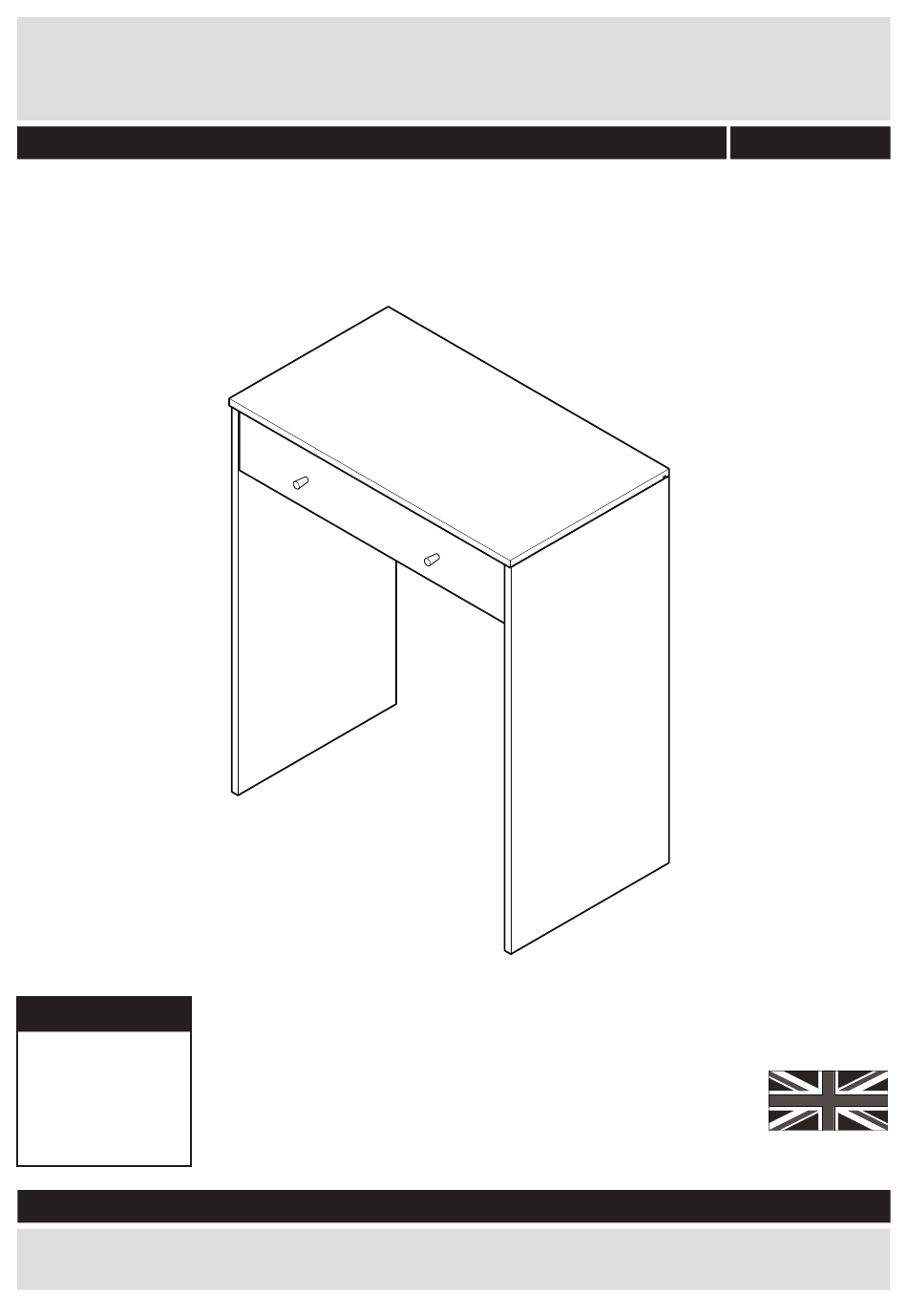

1 Drawer Dresser
Assembly Instructions
004 xx 9414
- Please keep for future reference
Dimensions
Width - 68.5cm
Depth - 38.8cm
Height - 83.1cm
MADE IN
GREAT BRITAIN
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 01709 534123
Please turn to back page for important information when contacting Customer Helpline.
Rev A - 09/04/19
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for JD Williams Taylor
Summary of Contents for JD Williams Taylor
- Page 1 1 Drawer Dresser Assembly Instructions 004 xx 9414 - Please keep for future reference Dimensions Width - 68.5cm Depth - 38.8cm Height - 83.1cm MADE IN GREAT BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 01709 534123 Please turn to back page for important information when contacting Customer Helpline.
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly Do not stand or put weight on Check you have all the We do not the product, this could cause components and tools listed on recommend the damage.
- Page 3 Components - Panels Please check you have all the panels listed below Important - Thick lines indicate finished edges 0855 Drawer Front (64.7x12.7cm) 0834 (68.5x38.8cm) 0575 0853 0854 Drawer Bottom Left End Panel Right End Panel (61.2x34.8cm) 0108 Back Rail (81.6x38.6m) (81.6x38.6cm) (65.1x35.1cm)
-
Page 4: Exploded View
Exploded View 0834 0108 0853 624xx7010 622xx7014 0854 0575 0855 623xx7014 Tools required Eye protection Cross headed screwdriver Tape Measure (when using a (medium & large ) hammer) Small Hammer Ruler - Use this ruler to help correctly identify the screws... - Page 5 Assembly Instructions Step 1 These holes Fitting dowels to top not used panel. Insert 4 metal dowels into the top panel 0834 Note: Tighten metal 0834 dowels up fully against the panel. Do not over-tighten. Step 2 Fitting cams to the back rail panel.
- Page 6 Assembly Instructions Step 4 Diagram 1 Attaching the left bracket to the left end. Using 2 screws secure the bracket the left end panel 0853 as shown in diagram 1. 0853 Diagram 2 Use 1 screw secure the front of the bracket.
- Page 7 Assembly Instructions Step 6 Fitting dowels to the drawer front. Insert 2 metal dowels into the the drawer 0855 front 0855 Step 7 Insert small cams Right hand side 622xx7014 into left 623xx7014 and right 623xx7014 drawer sides. Note: Ensure cam arrow points towards the edge with hole.
- Page 8 Assembly Instructions : Locate the metal dowels (already inserted) in the drawer front into the small cams in the left and right hand drawer sides. Ensure drawer sides are pressed against drawer front. Turn cams 180 degrees to 0855 lock. : Fit bolts through the pre-drilled holes in...
- Page 9 Assembly Instructions Step 9 Connect back rail to the right hand end Connect the dowels in the right end 0854 to the 0108 cams in the back rail 0854 Turn cams 180 degrees to lock. 0108 Edged face. (This can be attached with fittings at the rear if customer chooses).
- Page 10 Assembly Instructions Step 11 Connect top to the end panels. Connect the dowels in the top 0834 to the cams in the end panels 0834 0853 0854 and rail 0854 Turn cams 180 degrees to lock. 0853 0836 Step 12 Fit the drawers.
- Page 11 Assembly Instructions Step 13 Fixing to wall We recommend that this unit is fixed to a suitable wall to prevent possible overbalancing. We have included a fixing bracket for this. No fixing screws are provided as they will need to suit the wall type, and the length of screw will depend on the distance from the...
- Page 12 Assembly Instructions Congratulations! Your unit is complete. Important Information If you need help or have damaged or missing parts, call the Customer Helpline: 01709 534123 8am - 4.30pm (Monday to Thursday) 8am - 2.30pm (Fridays) (by contacting the customer service line your statutory rights are not affected) Please have the following information to hand: >>...
