CAN BUS

The FATBOX G3 supports a CAN bus interface (option), for example to read ODB2 ISO15765 (road vehicles) data for on-board vehicle diagnostics.
Data can then be processed on-board or sent to a server or cloud IoT back-end platform.
4. 1 CAN Bus

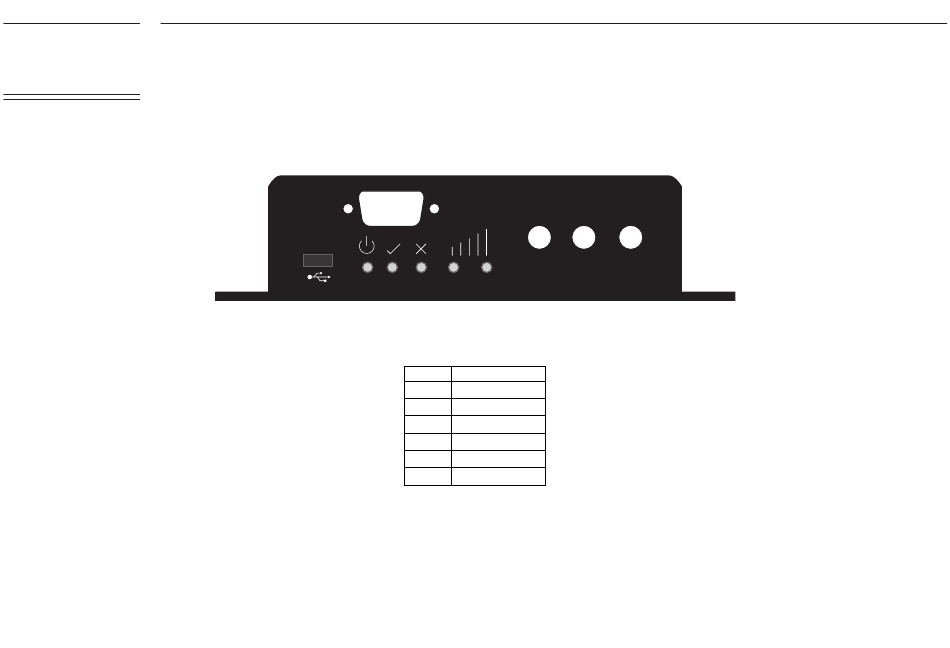

CAN Bus Version End Plate
CANBUS
fatbox G3
amplified
engineering
Male 9-pin D-sub connector
Diagram
PIN
7
-
3
-
-
2
cel l 1 gps cel l 2
SIGNAL
CAN_HI
-
CAN_GND
-
-
CAN_LO
