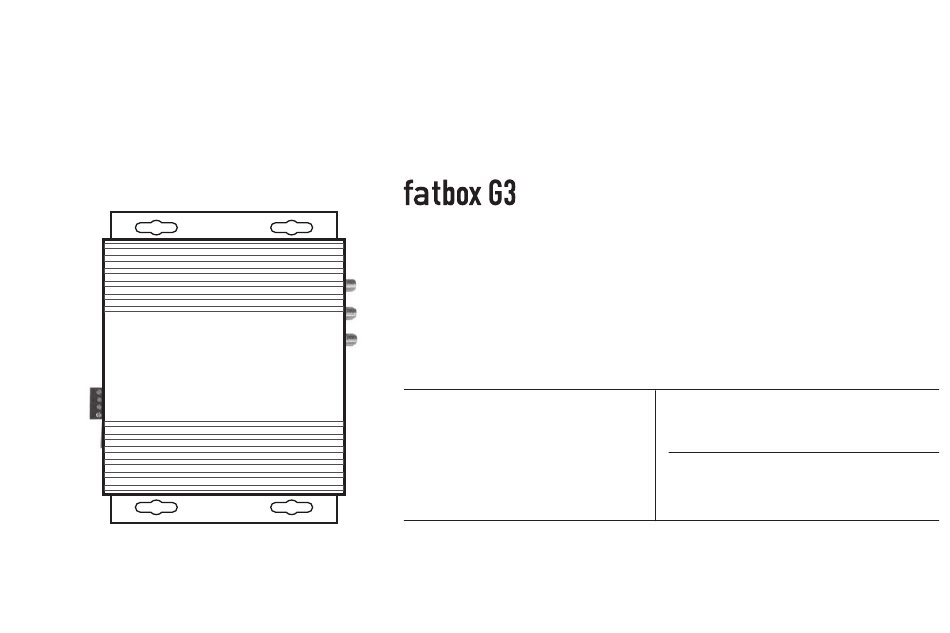

- Page 1 IIOT GATEWAY EDITION 4.1 / MAY 2020 / PROGRAMMABLE INDUSTRIAL FIRMWARE VERSION 4.4.4 LTE/4G/3G IOT GATEWAY ROUTER FOR MODBUS TCP/RTU, DESIGNED IN AUSTRALIA. CAN BUS, ETHERNET & ASSEMBLED IN USA. ZIGBEE DEVICES...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY OF USE ABOUT G3 Specifications Hardware Board Interface SETTING UP SIM Installation Logging In WEB MANAGEMENT Quickstart LAN Ethernet WIFI & Bluetooth WAN Cellular Port Forwarding Dynamic DNS IPSEC VPN Port Settings IoT Hardware IoT Client SNMP Management System Status... -
Page 3: Safety Of Use
G3 SAFETY OF USE All specialist electronic devices must be operated with due care to avoid damage or injuries and should be installed and ALL CONDITIONS operated by a trained personnel. DO NOT OPERATE THIS EQUIPMENT IN ENVIRONMENTS CONTAINING POTENTIALLY EXPLOSIVE GASES OR LIQUIDS, EXAMPLE, GAS STATIONS AND CHEMICAL PLANTS AND EXPLOSIVE STORES. -
Page 4: About
G3 ABOUT MANAGEMENT CELLULAR INTERFACE · HSPA+ 14.4Mbps downlink and 5.76Mbps uplink NETWORK · Designed for maximum uptime from available over 850/900/1900/2100MHz bands ROBUSTNESS network · GSM 850/900/1800/1900 for GPRS and EDGE · End-to-End PING connectivity testing with 1. 1 ·... -
Page 5: Hardware

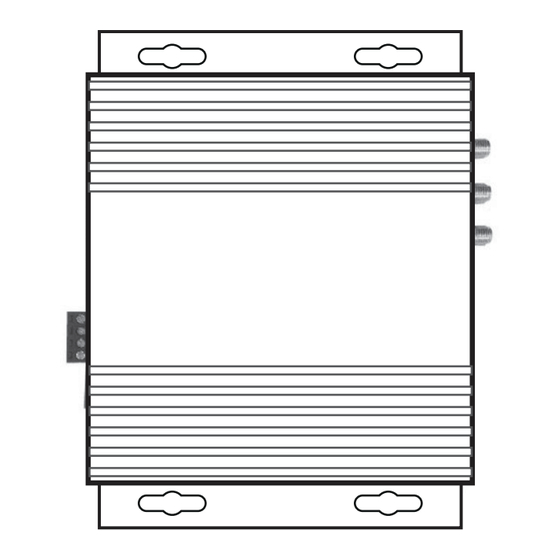

G3 129mm ABOUT STANDARD VERSION VERSION SPECIFICATIONS With rugged anodised STANDARD aluminium chassis INTERFACE - LAN 1. 2 - SERIAL HARDWARE - I/O - USB NOTE: The client is required to have their own mounting DIMENSION screws (M3 size) to suit the... -
Page 6: Board Interface
G3 ABOUT LED: POWER ON GENERIC ‘YES’ GENERIC ‘NO’ SIGNAL STRENGTH LEVEL AUTOPING/ AUTOPING/ LOW LED; HIGH LED 1,0 (<-95dBm) connection poor IPSEC/ Custom Custom Program 0,1 (<-80dBm) connection medium Program 1,1 (>-80dBm) connection good 1. 3 Antenna Port 1... -
Page 7: Setting Up
You would need to get this information from your operator. (SIM card’s orientation fits as shown) STEP 3 of 6 - Connect the power adapter/antenna and plug the Ethernet cable to your pc. STEP 4 of 6 - Power up the FATBOX G3. -
Page 8: Logging In
G3 SETTING UP STEP 5 of 6 - Launch your browser and enter address as 192.168.1.1 STEP 6 of 6 - Log in. 2. 2 LOGGING IN FATBOX CONSOLE 192.168.1.1/cgi-bin/G3 When you have connected up the hardware to the... -
Page 9: Web Management
G3 MANAGEMENT FATBOX_G3 Click to open our Quick Start Guide to assist you with getting a connection MENU OPTIONS Basic Settings for FATBOX 3G Router for 3G/4G Internet access 3. 1 QUICK START Quick Start Quick Start Guide v1.0.pdf... -
Page 10: Lan Ethernet
G3 Sets the IP address of LAN port on FATBOX MANAGEMENT FATBOX_G3 Setup the FATBOX G3 to automatically MENU OPTIONS LAN Port Settings 3. 2 assign IP addresses to your connected LAN LAN ETHERNET devices. Quick Start ETH0 IP Address 192.168.1.1... -
Page 11: Wifi & Bluetooth
G3 MANAGEMENT FATBOX_G3 Click to enable WiFi backhaul mode Enter in the SSID of your local WiFi MENU OPTIONS WiFi-over-usb Settings 3. 3 WIFI & Quick Start Enabled WiFi mode Enter in the WiFi Password BLUETOOTH LAN Settings SETTINGS 192.168.1.1... -
Page 12: Wan Cellular
G3 MANAGEMENT FATBOX_G3 Please check with your telco/service provider to obtain these settings 3G/4G Cellular Settings MENU OPTIONS 3. 4 Setup the PIN code (usually 4-8 digit WAN CELLULAR SIM1 Settings Quick Start numerics) if SIM PIN lock is enabled... - Page 13 Dynamic DNS IPsec VPN This is the number of times it retries before Disabled Enable Reboot on Ping Failure In the example, the FATBOX G3 Port Settings the FATBOX G3 would attempt to IoT Hardware would send a PING to Google's PING Remote Host 8.8.8.8...
-
Page 14: Port Forwarding
G3 MANAGEMENT FATBOX_G3 Enter the source port. This is the port to access the device from outside. You can also enter a range of ports as the example Port Forwarding MENU OPTIONS 3. 5 below PORT Quick Start Add a new Port Forwarding Rule... -
Page 15: Dynamic Dns
Update to save your settings A data sim card with a public IP [You can check this The FATBOX G3 would connect to your with your operator.] account and point the domain you set to the FATBOX after you reboot. -
Page 16: Ipsec Vpn
After the remote end-point (e.g. a CISCO ASA520 security appliance with internet access and connected to the customer’s SCADA or IPSEC VPN payment processing server) is configured to accept remote IPSEC site-to-site connections. FATBOX G3 integrates Strongswan 5.0 IPSEC VPN client to enable secure... - Page 17 Port Forwarding VPN Server IP address yourvpngateway Dynamic DNS Key in the IP subnet set for the LAN on the FATBOX G3 configuration IPsec VPN VPN Server Subnet IP Address/ Mask 192.168.1.0/24 remote server side (i.e. 192.168.1.0/24) for Site-to-Site IPSEC VPN...
-
Page 18: Port Settings
115200 E.g. 9600, 19200, 38400, 57600, 115200 WiFi & BT Settings WAN Settings Data Bits E.g. 7, 8 FATBOX G3 has built in TCP Setting to match attached serial device Port Forwarding Serial server and client Parity None Dynamic DNS mode. -
Page 19: Iot Hardware
G3 MANAGEMENT FATBOX_G3 Choose 'Modbus Master' to send request packet & read response value from the slaves MENU OPTIONS HARDWARE :: Setting 3. 9 IOT HARDWARE Choose 'Query mode' to send request Quick Start packet & read response values. Choose Modbus mode [iotasset.pdf]... - Page 20 IMPORTANT :: log in again for security purposes. OTA Configurations Updating Please upload to FATBOX G3 gateway folder /user the following If the update failed, check that the iotasset.txt (Settings for hardware devices e.g. Modbus addresses) connection to the gateway is stable. Or connstr.txt (Azure only, Azure IoT device id token)
-
Page 21: Iot Client
Enter the Device Token that you copy from your Ubidots account Enable client Enabled G3 Azure IoT Quick Start Guide.pdf Give your Fatbox G3 a unique device name (no spaces or special characters) Client Setup :: AWS IoT meter001 Thing Name... -
Page 22: Snmp
G3 MANAGEMENT FATBOX_G3 SNMP Settings MENU OPTIONS 3. 11 SNMP Quick Start SNMP Guide.pdf Enable or Disable SNMP LAN Settings WiFi & BT Settings WAN Settings Port Forwarding Enable or Disable SNMP via WAN port 161 Enabled Dynamic DNS... - Page 23 G3 MANAGEMENT FATBOX_G3 Enter your system hostname if necessary System Management MENU OPTIONS This login name is only used for web. SSH 3. 12 always login as root MANAGEMENT Quick Start System Hostname fatbox LAN Settings Enable or disable remote https access via WAN port 443.
- Page 24 Files (e.g. firewall.user, user.lua, user.py or connstr.txt) must be in /user folder. CROSS COMPILE C CODE To input your own LUA or Python program: The FATBOX G3 is an open 1. Write your LUA or Python program and Download /user to FATBOX Execute user.lua Script Lua.pdf]...
- Page 25 G3 MANAGEMENT FATBOX_G3 System Management MENU OPTIONS 3. 12 MANAGEMENT Ensure that the gateway HTTPS console must Quick Start be accessible before proceeding with this LAN Settings steps. WiFi & BT Settings 1. Click on the 'UPDATE FIRMWARE' button.
-
Page 26: System Status
G3 MANAGEMENT FATBOX_G3 System Status MENU OPTIONS 3. 13 SYSTEM STATUS Main Quick Start Firmware Version fw_G3_2_4_16rc1 3.0.35 LAN Settings System Date & Time Fri Nov 23 02:08:21 UTC 2018 WAN Settings Port Forwarding Upload and CPU Load (1,5,15m) 02:08:21 up 19 min, load average 0.53, 0.59, 0.58... -
Page 27: Wan Failover To 3G
G3 MANAGEMENT 3. 14 WAN FAILOVER TO 3G Workstation Data Server e.g. SCADA Server When it is critical to maintain 192.168.1.20/24 consistent connection with remote stations or applications, the FATBOX G3 gateway provides a way to automatically switch to... - Page 28 G3 To set up WAN failover to 3G, first go to the WAN Settings page of the web console and input the following settings. MANAGEMENT FATBOX_G3 Enable the FATBOX to reboot upon the 3. 14 failure to PING your selected IP address...
-
Page 29: Can Bus
CAN BUS The FATBOX G3 supports a CAN bus interface (option), for example to read ODB2 ISO15765 (road vehicles) data for on-board vehicle diagnostics. Data can then be processed on-board or sent to a server or cloud IoT back-end platform. -
Page 30: Contact Us
Our Service Support means that we make the security and integration of the network our responsibility. SERVICE TECHNICAL SUPPORT SUPPORT: SUPPORT@AMPLIFIED.COM.AU SALES: SALES@AMPLIFIED.COM.AU amplified engineering Amplified Engineering Pty Ltd Suite 4 Enterprise Unit 3, 9 De Laeter Way, Bentley WA 6102, Australia ABN 44127163035 amplified.com.au...
