WAN FAILOVER TO 3G

When it is critical to maintain
consistent connection
with remote stations or
applications, the FATBOX
G3 gateway provides a way
to automatically switch to
a 3G failover when AUTOPING
sequence fails in the
Ethernet WAN connection.
This greatly increases the
stability and reliability of
online systems. The G3 will
also persistently check back
with the status of the original
Ethernet connection and
if its back online, the box
will reboot and revert back
to primary Ethernet WAN
mode.security sectors.

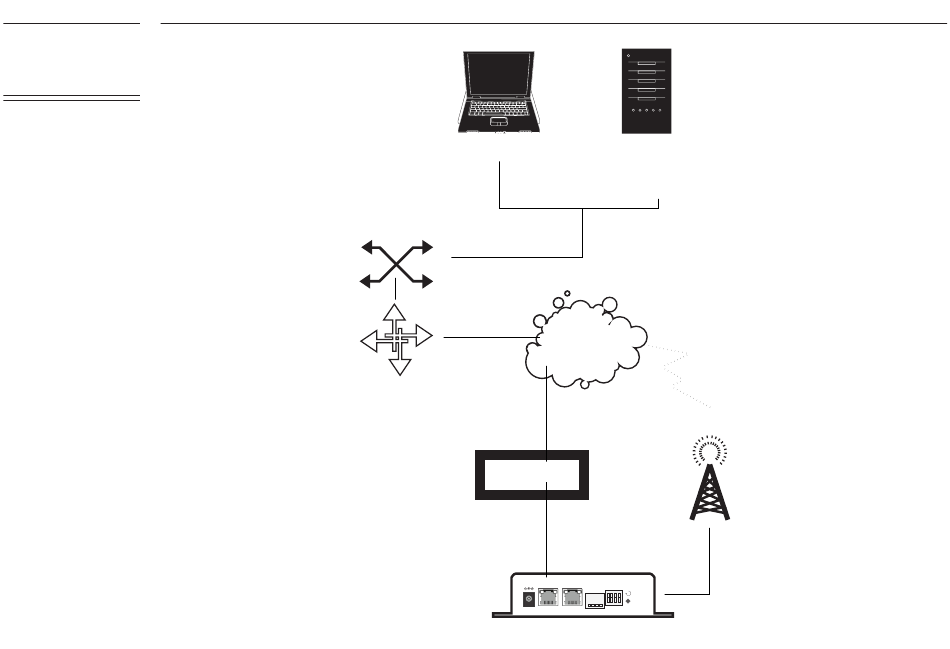

Switch
Firewall
e.g. CISCO ASA5520
192.168.1.0/202.200.XXX.XXX
Factory/ Office
router (ADSL/
Fiber)
Workstation Data Server
e.g. SCADA
Server
192.168.1.20/24
NET
fatbox G3
dc et h1 et h0 ser i al di p
TX RX I N GND 1 2 3 4
fatbox G3
D- D+
amplifie d
R
engineerin g
HSPA Cellular
fatbox G3
