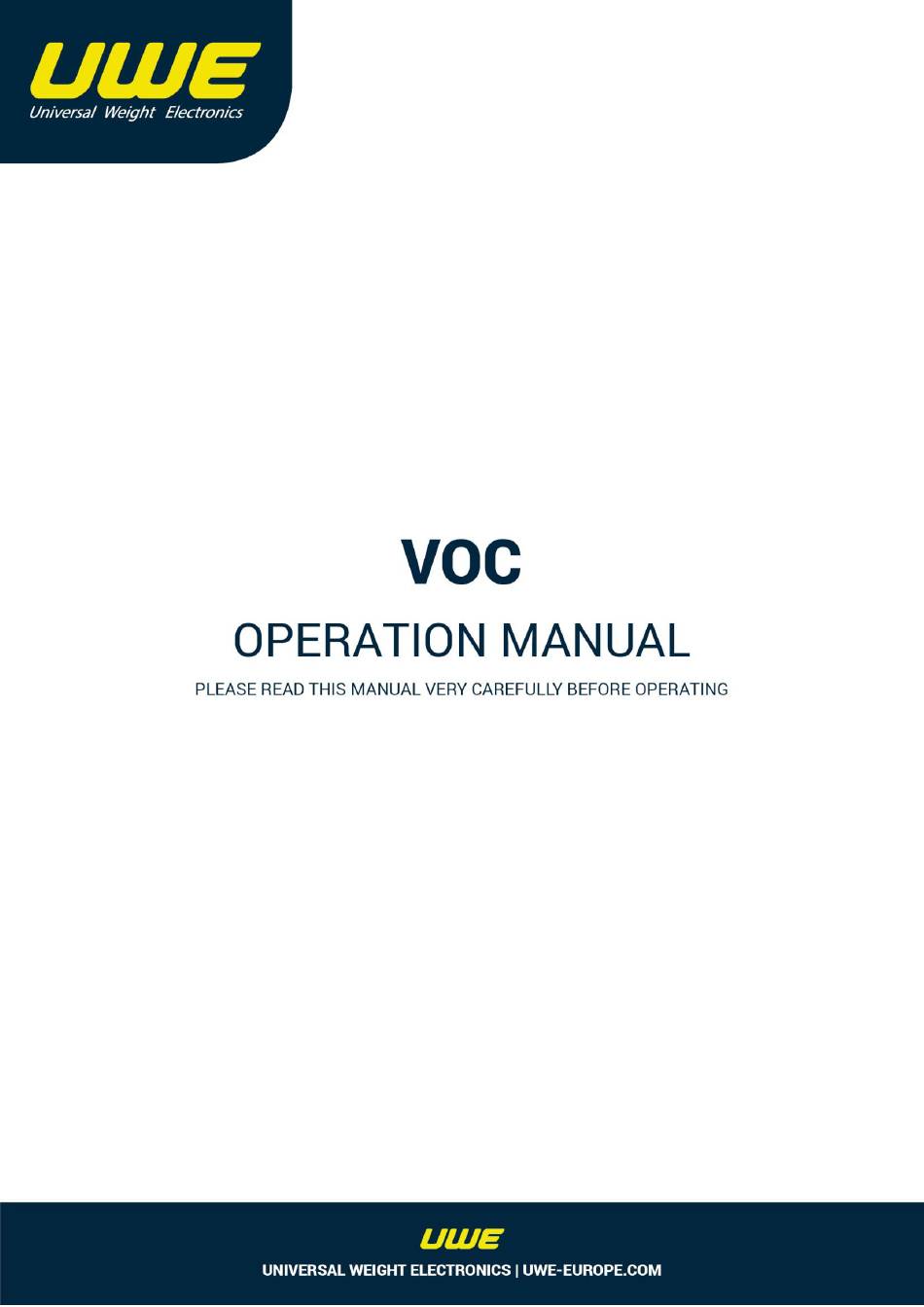

UWE VOC Series Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VOC Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for UWE VOC Series

Summary of Contents for UWE VOC Series

  • Page 2: Table Of Contents

    TABLE OF CONTENT 1. BEFORE USE FOR THE FIRST TIME 2. INTRODUCTION 3. PANEL AND KEYBOARD 4. INTERNAL FUNCTIONS 5. INSTRUCTION TO USE 6. DAILY CARE AND MAINTENANCE APPENDIX: ERROR CODES DISPLAY SEGMENT DEFINATION...

  • Page 3: Before Use For The First Time

    1. BEFORE USE FOR THE FIRST TIME  Thank you for purchasing a HHi product, please read this instruction carefully before start using. You shall find the following items inside the box: VGC/VOC scale x 1 Switch power adaptor x 1 Operation manual x 1 If you don’t find all the items as described above, please contact your dealer for further assistance.

  • Page 4: Introduction

    2. INTRODUCTION 2.1 SPECIFICATION 3000 DIVISIONS Model No. Capacity (Max) Readability (e) 1500g 1500g 0.5g 3000g 3000g 6000g 6000g 15kg 15kg 30kg 30kg 3000 DIVISIONS DUAL RANGE Model No. Capacity (Max) Readability (e) W1/W2 e1/e2 3000g 1500g/3000g 0.5g/1g 6000g 3000g/6000g 1g/2g 15kg 6kg/15kg...

  • Page 5: Panel And Keyboard

    Operating C / 40 C (14 F / 104 Temperature Non-condensed. R.H.≦ 85% 3 PANEL AND KEYBOARD 3.1 PANEL 1. ZERO INDICATOR It appears when scale is at zero weight status 2. NEGATIVE INDICATOR It appears when weighing result is below true zero 3.
  • Page 6 7. M+ INDICATOR This indicates memory contains data 8. TOTAL INDICATOR This indicator appears when value shown on the display is the total saved value 9. BATTERY STATUS This indicates the power level of the rechargeable battery, and should be charged immediately when the sign starts flashing to prolong the time of rechargeable battery 10.
  • Page 7 3.2 KEYBOARD Press this key to turn on the scale, or press and hold this key to turn off the ON/OFF scale Press this key to manually set the display value to zero, please refer to ZERO specification for manual zero range 1.

  • Page 8: Internal Functions

    4 INTERNAL FUNCTION Below table defines all the internal function, and kindly note some functions are for dealer only. DO NOT try to open the scale or break with the hardware seal when the unit is metrological approved. Please contact your dealer for more information. DISPLAY FUNCTION SETTING ACCESS CONDITION...
  • Page 9 4.1 FUNCTION DEFINITION AND SETUP 4.1.1 LCD Segment Check and Backlight Adjustment Under this function all segments and indicators will be in flashing mode as well as backlight for user to check if function properly. Backlight brightness also has 5 level selections for optimal viewing. a.
  • Page 10 g. Press ZERO to enter the next function, or press M+ to exit. When M+ is pressed, display will show SAVE, user can either press ZERO for yes to save the changes made or press CL for not to save the changes. 4.1.4 Auto Power Off Under this function, user can select auto power off timing among 5 minutes, 10 minutes, 15 minutes and 20 minutes or disable the function.
  • Page 11 e. Press MR to select between Sd.on or Sd.oFF f. Press ZERO to confirm and exit the current function, display shows F19(or Fx) g. Press ZERO to enter the next function, or press M+ to exit. When M+ is pressed, display will show SAVE, user can either press ZERO for yes to save the changes made or press CL for not to save the changes.
  • Page 12 bAud: baud rate ProtL: transmission protocol trAns: transmission type ForMt: transmission format 4.1.8.1 Transmission Mode Under this function, user can select the transmission interface, speed, mode and format for RS-232 or RS485, and also the communication protocol. f. Indicator is off g.
  • Page 13 When format setting is Ser.2, data is sent once when pressing M+, and print total value when pressing MC 64.3 0.53589 120 <-print single date when pressing M+ 137.7 0.53592 257 168.8 0.53590 315 101.3 0.53591 189 ++++ <-M+ manually enter the quantity without weighing 472.1g/981pcs <-print total result when pressing MC Auto: data is sent once when weighing result stables When format setting is Ser.1, data is sent once when weighing result exceeds 10e and stabilized, but...
  • Page 14 e. Press MR to select between rtC.on or rtC.oF f. Press ZERO to confirm and exit the current function, display shows F17 g. Press ZERO to enter the next function, or press M+ to exit. When M+ is pressed, display will show SAVE, user can either press ZERO for yes to save the changes made or press CL for not to save the changes.
  • Page 15 h. Press M+ to exit, display will show SAVE, user can either press ZERO for yes to save the changes made or press CL for not to save the changes.

  • Page 16: Instruction To Use

    5 INSTRUCTION TO USE The counting scale VGC/VOC is easy to use and user friendly. Everyone can start using the scale by following the below steps: a. The scale is placed on a solid surface b. Use adjustable feet and referring to the bubble level to make sure scale is in a level position c.
  • Page 17 5.2.1 How To Clear Tare Function (auto tare, manual tare, preset tare) a. To clear auto tare, remove the initial weight/load from the platter and NET indicator will turn off. Press ZERO key to return to zero weight status if ZERO indicator does not appear. b.
  • Page 18 c. UNIT WEIGHT window shows “Add. XX”, for “XX” is the number of transactions saved in memory, while the TOTAL COUNT window will show the accumulated result with TOTAL indicator on. Both information will remain on display for 1 second and return to normal weighing d.
  • Page 19 In order to have auto piece weight enhancement function working properly, there are two conditions to meet: 1. Unit weight is obtained by automatic sampling, the direct entry method will only have fix unit weight. 2. After the initial sampling, the next load place on the platter must not exceeds 100% of the original count 5.7 HOW TO CONNECT RS-232 (D-sub 9 pin female connector) Refer to 4.1.8 to set the transmission protocol...

  • Page 20: Daily Care And Maintenance

    6. DAILY CARE AND MAINTENANCE -Do not attempt to open the scale or try to repair except authorized technicians only -Always aware of the operating environment to avoid excessive moisture and extreme temperature -Use original factory supplied switch adaptor for charging only -Recharge the battery immediately when the battery level indicator starts flashing to avoid permanent damage to the rechargeable battery -Do not put anything on the platter after weighing completes to avoid causing damage to the load...

  • Page 21: Appendix

    APPENDIX: ERROR CODES ERROR CODE DESCRIPTION SOLUTION Err 0 Flash memory accessing error Change MCU, contact dealer for assistance Err 1 A/D accessing error Check A/D, contact dealer for assistance ------ No load cell signal/load cell reading error Check load cell and connection Err 2 Load cell wiring error Check load cell wiring pin assignment...
