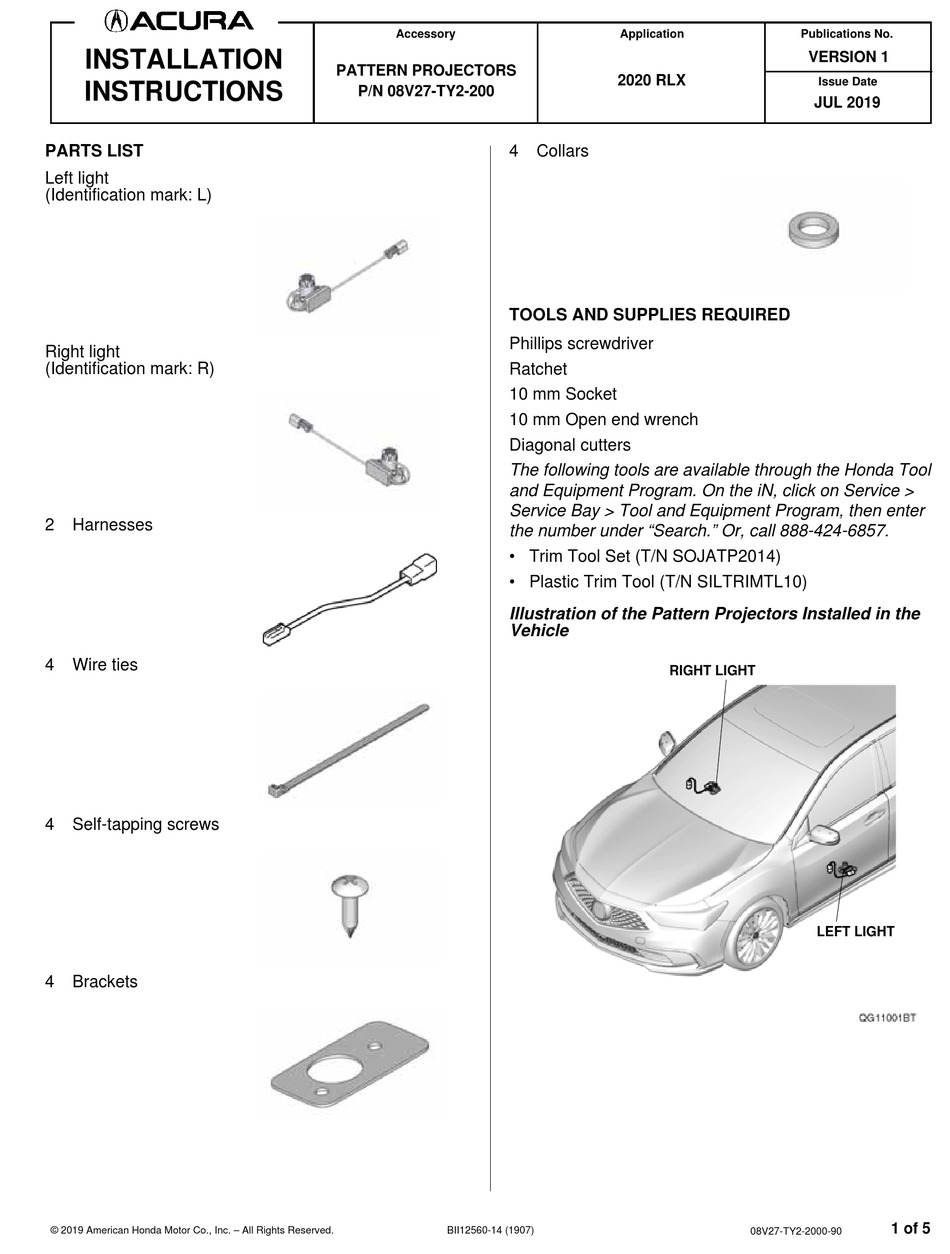

INSTALLATION
INSTRUCTIONS
PARTS LIST
Left light
(Identification mark: L)
Right light
(Identification mark: R)
2
Harnesses
4
Wire ties
4
Self-tapping screws
4
Brackets
© 2019 American Honda Motor Co., Inc. – All Rights Reserved.
Accessory
PATTERN PROJECTORS
P/N 08V27-TY2-200
4
TOOLS AND SUPPLIES REQUIRED
Phillips screwdriver
Ratchet
10 mm Socket
10 mm Open end wrench
Diagonal cutters
The following tools are available through the Honda Tool
and Equipment Program. On the iN, click on Service >
Service Bay > Tool and Equipment Program, then enter
the number under "Search." Or, call 888-424-6857.
• Trim Tool Set (T/N SOJATP2014)
• Plastic Trim Tool (T/N SILTRIMTL10)
Illustration of the Pattern Projectors Installed in the
Vehicle
BII12560-14 (1907)
Application
2020 RLX
Collars
RIGHT LIGHT
Publications No.
VERSION 1
Issue Date
JUL 2019
LEFT LIGHT
1 of 5
08V27-TY2-2000-90
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Acura 08V27-TY2-200
Summary of Contents for Acura 08V27-TY2-200
- Page 1 Accessory Application Publications No. INSTALLATION VERSION 1 PATTERN PROJECTORS 2020 RLX Issue Date INSTRUCTIONS P/N 08V27-TY2-200 JUL 2019 PARTS LIST Collars Left light (Identification mark: L) TOOLS AND SUPPLIES REQUIRED Phillips screwdriver Right light (Identification mark: R) Ratchet 10 mm Socket...
-
Page 2: Installation
INSTALLATION Remove the left front door panel and unplug the vehicle connectors. Client Information: The information in this installation 5 CLIPS instruction is intended for use only by skilled VEHICLE CONNECTORS technicians who have the proper tools, equipment, and LEFT FRONT LEFT FRONT ... - Page 3 Remove the courtesy light and unplug the vehicle Install the left light to the left front door panel with two connector. self-tapping screws, two collars, and two brackets. INSTALLING LEFT FRONT VEHICLE DOOR PANEL POSITION CONNECTOR (inside) TOP SIDE VIEW SECTION VIEW COLLARS FRONT...
- Page 4 Plug the harness 2-pin connector into the left light 10. Install the right light to the right front door panel with harness 2-pin connector and plug the vehicle 2-pin two self-tapping screws, two collars, and two connector into the remaining harness 2-pin brackets.
- Page 5 11. Plug the harness 2-pin connector into the right light harness 2-pin connector and plug the vehicle 2-pin connector into the remaining harness 2-pin connector. Secure the 2-pin connectors and harness to the vehicle harness with one wire tie. RIGHT LIGHT HARNESS ...
