5 PROGRAM THE FLASH

Please note that the most likely reason for this step to fail is due to an issue or configuration problem
with the test equipment. For this reason please verify that the steps below can be performed on a
known working WR44V2 without issue.

5.1 Using Flashwriter

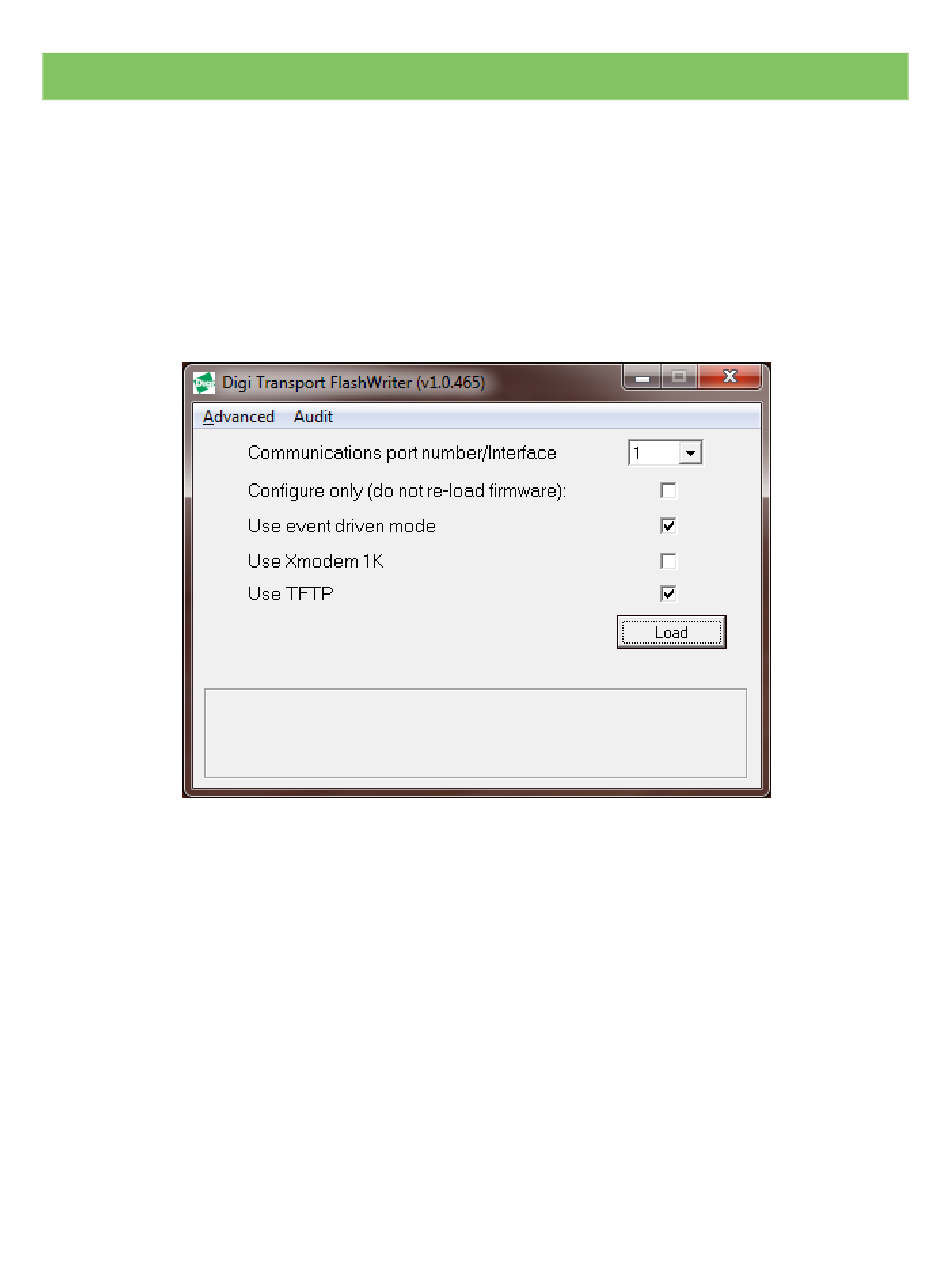

Launch Flashwriter from the start menu. Select the communications port number (PC comm. port
number) to which the WR44v2 is connected. (On most PC's with a built in serial port, this will be "1"
OR "2". Leave the other settings are their default values (TFTP and Event driven mode ONLY ticked):
If your PC has more than one network adapter, be sure to select the one that represents the
connection to LAN illustrated in section 0. If your PC only has a single network adapter this screen will
not appear:
