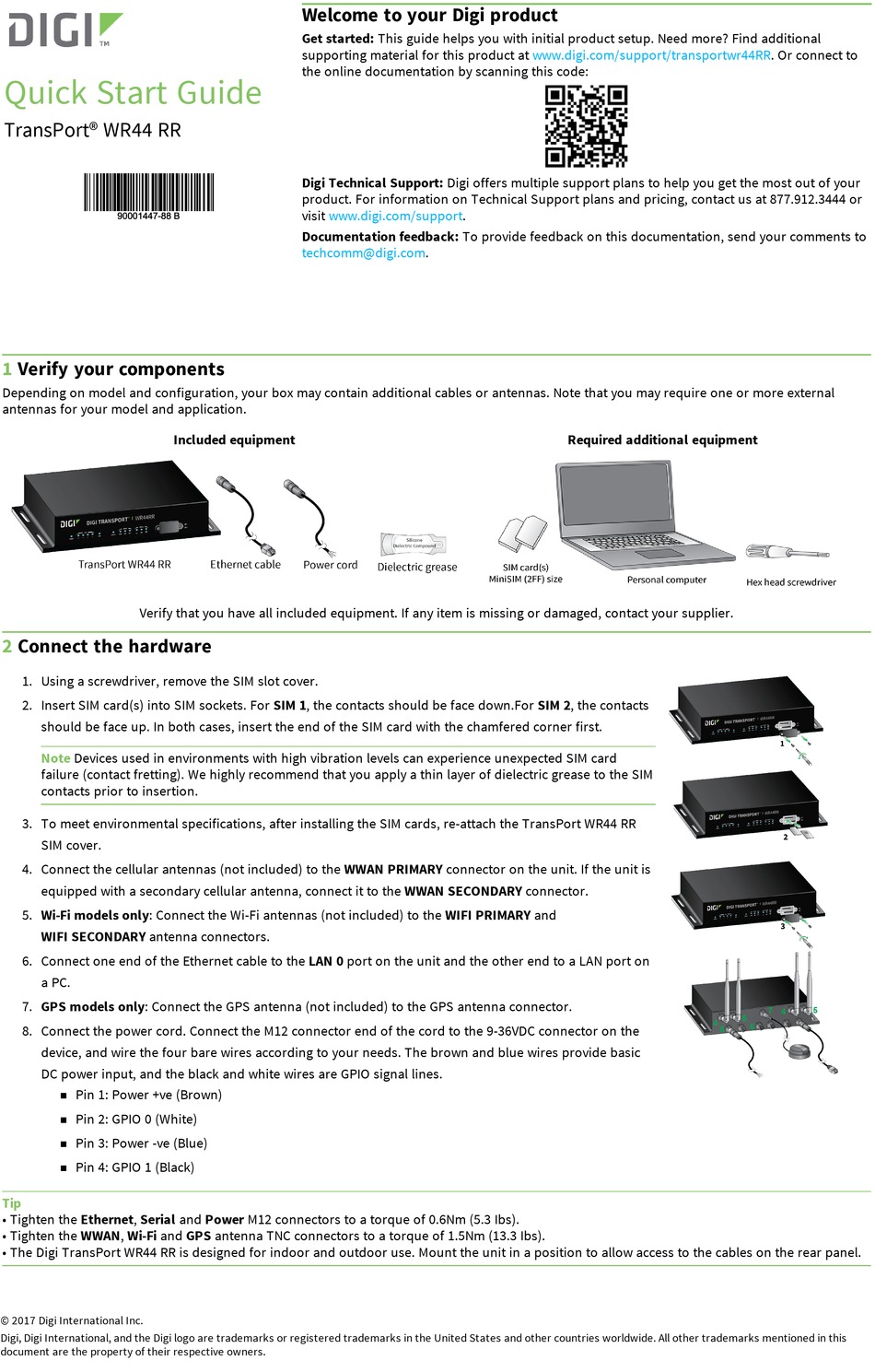

Quick Start Guide
TransPort® WR44 RR
1

Verify your components

Depending on model and configuration, your box may contain additional cables or antennas. Note that you may require one or more external
antennas for your model and application.
Verify that you have all included equipment. If any item is missing or damaged, contact your supplier.
2

Connect the hardware

1. Using a screwdriver, remove the SIM slot cover.
2. Insert SIM card(s) into SIM sockets. For SIM 1, the contacts should be face down.For SIM 2, the contacts
should be face up. In both cases, insert the end of the SIM card with the chamfered corner first.
Note Devices used in environments with high vibration levels can experience unexpected SIM card
failure (contact fretting). We highly recommend that you apply a thin layer of dielectric grease to the SIM
contacts prior to insertion.
3. To meet environmental specifications, after installing the SIM cards, re-attach the TransPort WR44 RR
SIM cover.
4. Connect the cellular antennas (not included) to the WWAN PRIMARY connector on the unit. If the unit is
equipped with a secondary cellular antenna, connect it to the WWAN SECONDARY connector.
5. Wi-Fi models only: Connect the Wi-Fi antennas (not included) to the WIFI PRIMARY and
WIFI SECONDARY antenna connectors.
6. Connect one end of the Ethernet cable to the LAN 0 port on the unit and the other end to a LAN port on
a PC.
7. GPS models only: Connect the GPS antenna (not included) to the GPS antenna connector.
8. Connect the power cord. Connect the M12 connector end of the cord to the 9-36VDC connector on the
device, and wire the four bare wires according to your needs. The brown and blue wires provide basic
DC power input, and the black and white wires are GPIO signal lines.
Pin 1: Power +ve (Brown)
n
Pin 2: GPIO 0 (White)
n
Pin 3: Power -ve (Blue)
n
Pin 4: GPIO 1 (Black)
n
Tip
• Tighten the Ethernet, Serial and Power M12 connectors to a torque of 0.6Nm (5.3 Ibs).
• Tighten the WWAN, Wi-Fi and GPS antenna TNC connectors to a torque of 1.5Nm (13.3 Ibs).
• The Digi TransPort WR44 RR is designed for indoor and outdoor use. Mount the unit in a position to allow access to the cables on the rear panel.
© 2017 Digi International Inc.
Digi, Digi International, and the Digi logo are trademarks or registered trademarks in the United States and other countries worldwide. All other trademarks mentioned in this
document are the property of their respective owners.
Welcome to your Digi product
Get started: This guide helps you with initial product setup. Need more? Find additional
supporting material for this product at www.digi.com/support/transportwr44RR. Or connect to
the online documentation by scanning this code:
Digi Technical Support: Digi offers multiple support plans to help you get the most out of your
product. For information on Technical Support plans and pricing, contact us at 877.912.3444 or
visit www.digi.com/support.
Documentation feedback: To provide feedback on this documentation, send your comments to
techcomm@digi.com.
Included equipment Required additional equipment
