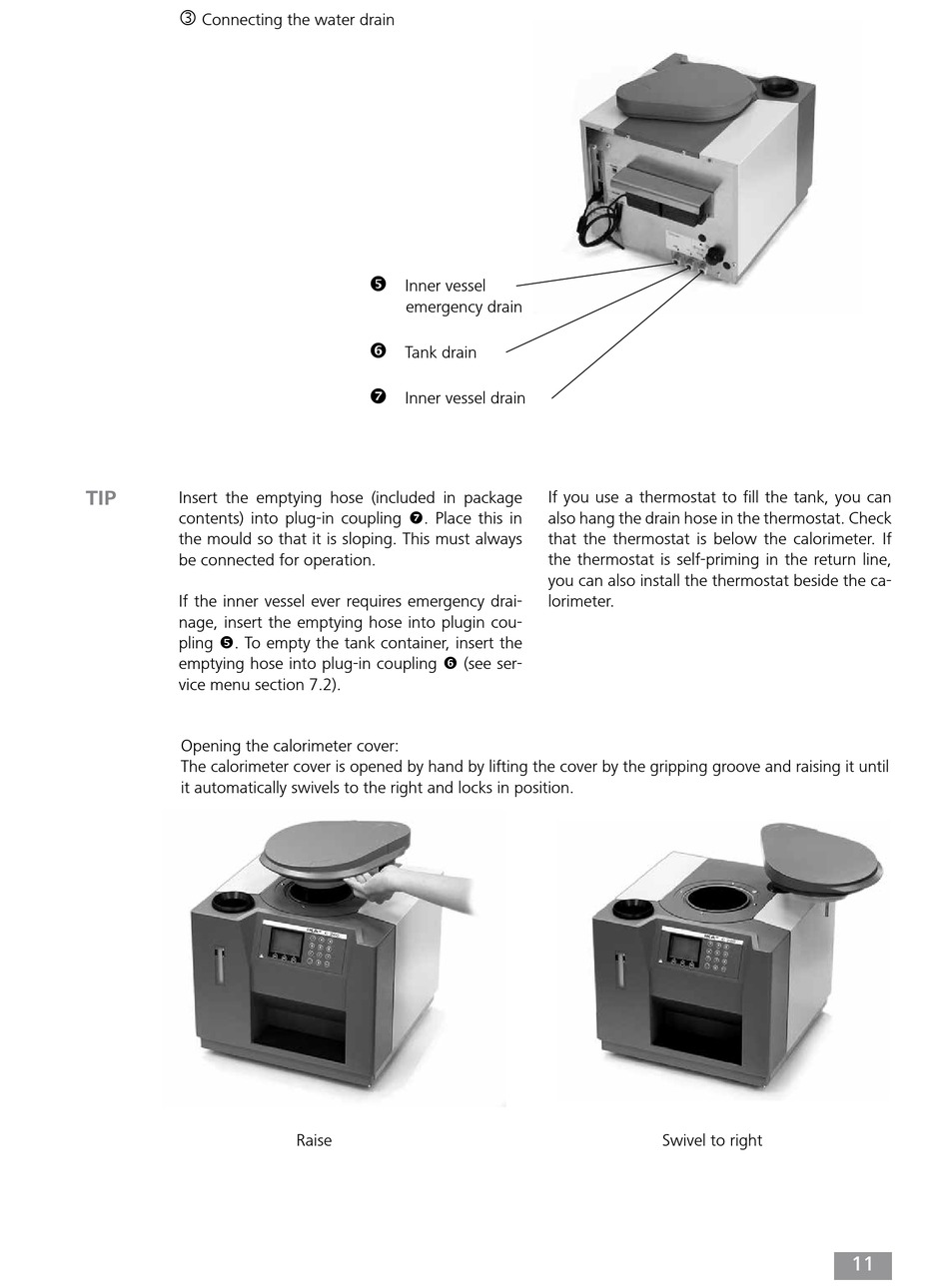

Connecting the water drain
TIP
Insert the emptying hose (included in package
contents) into plug-in coupling . Place this in
the mould so that it is sloping. This must always
be connected for operation.
If the inner vessel ever requires emergency drai-
nage, insert the emptying hose into plugin cou-
pling . To empty the tank container, insert the
emptying hose into plug-in coupling  (see ser-
vice menu section 7.2).
Opening the calorimeter cover:
The calorimeter cover is opened by hand by lifting the cover by the gripping groove and raising it until
it automatically swivels to the right and locks in position.

Inner vessel
emergency drain

Tank drain

Inner vessel drain
Raise
If you use a thermostat to fill the tank, you can
also hang the drain hose in the thermostat. Check
that the thermostat is below the calorimeter. If
the thermostat is self-priming in the return line,
you can also install the thermostat beside the ca-
lorimeter.
Swivel to right
