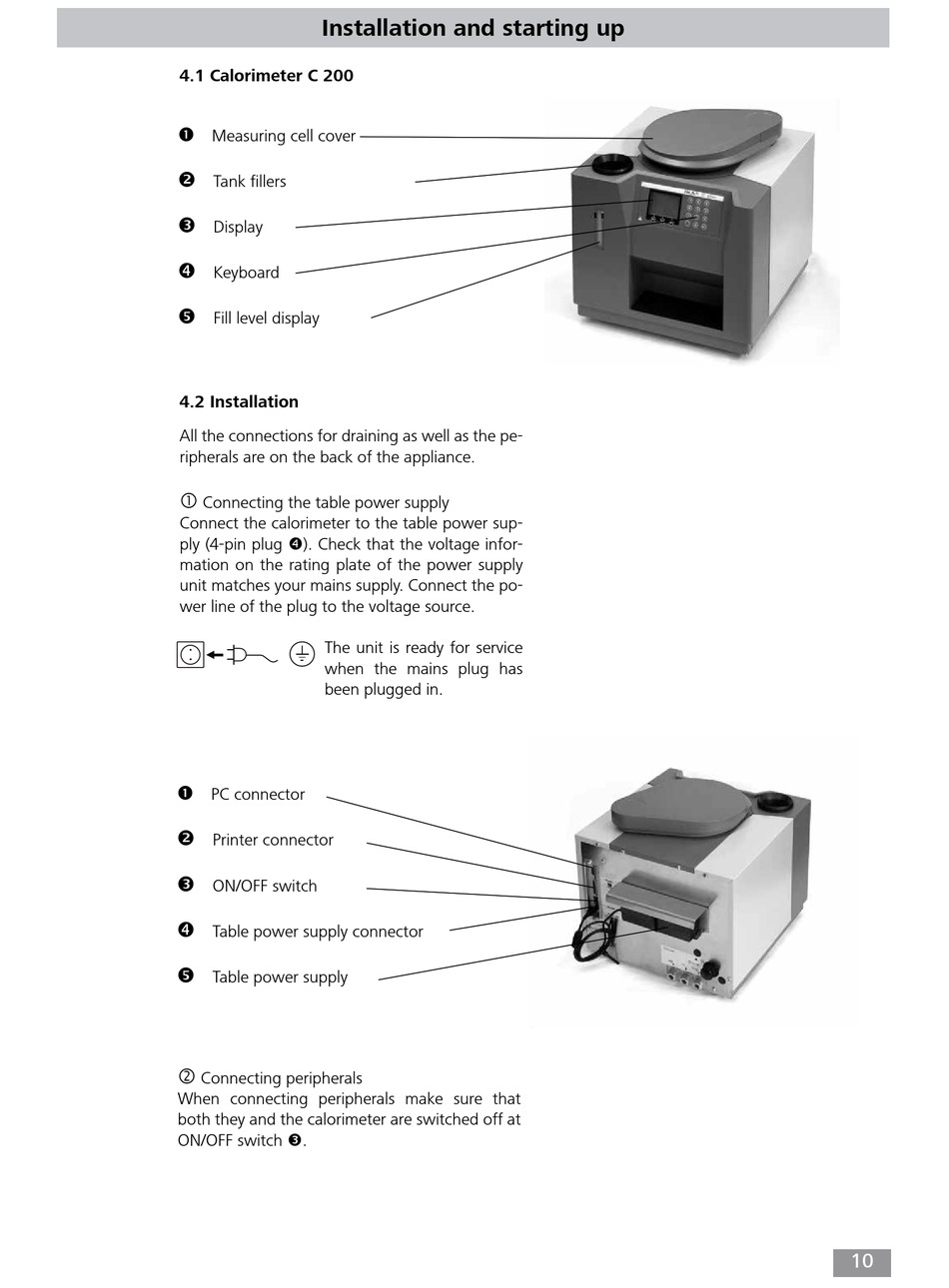

Installation and starting up

4.1 Calorimeter C 200


Measuring cell cover

Tank fillers

Display

Keyboard

Fill level display

4.2 Installation

All the connections for draining as well as the pe-
ripherals are on the back of the appliance.

Connecting the table power supply
Connect the calorimeter to the table power sup-
ply (4-pin plug ). Check that the voltage infor-
mation on the rating plate of the power supply
unit matches your mains supply. Connect the po-
wer line of the plug to the voltage source.
The unit is ready for service
when the mains plug has
been plugged in.

PC connector

Printer connector

ON/OFF switch

Table power supply connector

Table power supply

Connecting peripherals
When connecting peripherals make sure that
both they and the calorimeter are switched off at
ON/OFF switch .
