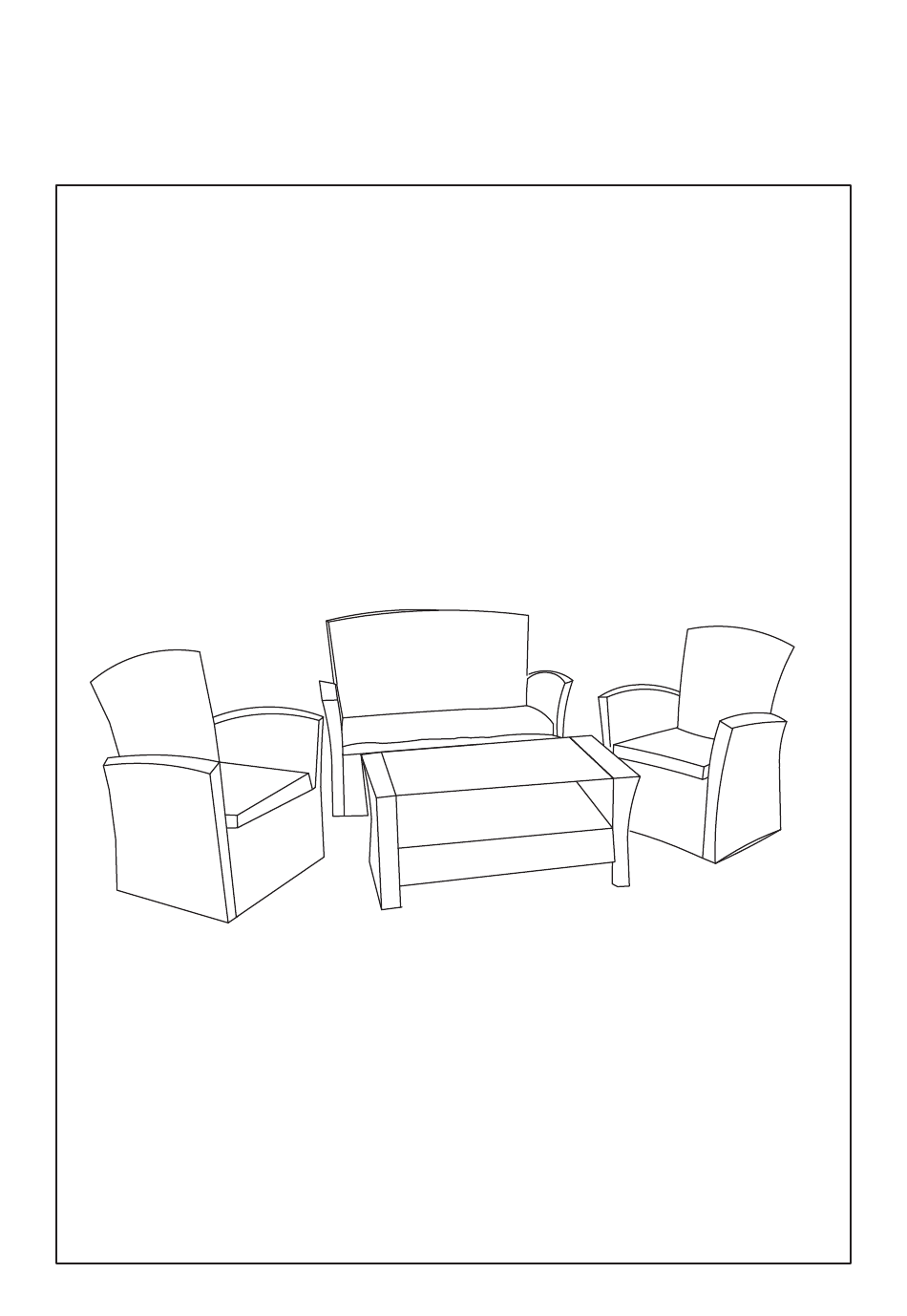

- Page 1 Kempton Coffee Set Assembly Instructions Product size: coffee table: W95xD50xH42CM chair: W73xD68xH81CM 2 seat sofa: W131xD68xH81CM IMPORTANT, RETAIN FOR FUTURE REFERENCE READ CAREFULLY 1/10...
-
Page 2: Before You Start
Kempton Coffee Set Assembly Instructions Before you start Warnings IMPORTANT, RETAIN FOR FUTURE REFERENCE Do not use scourer, abrasives, washing powders, READ CAREFULLY chemical cleaners or any other substances containing abrasives since these substances can damage the product, including the glass panel. - Page 3 Kempton Coffee Set Assembly Instructions Components ，fixtures & fittings （not actual size） Parts List Part Part Diagram Diagram 1 PC 2 PCS 2 PCS 1 PC 1 PC 1 PC 3 PCS 2 PCS 2 PCS 3 PCS 2 PCS...
- Page 4 Kempton Coffee Set Assembly Instructions Components ，fixtures & fittings （not actual size） Parts List Part Part Diagram Diagram 1 PC 20 PCS M6x25mm 2 PCS 12 PCS M6x30mm 32 PCS 1 PC 16 PCS M6x15mm 4/10...
- Page 5 Kempton Coffee Set Assembly Instructions Note: All Bolt Head Caps and Nut Caps should not be attached before finally tightening all Bolts with the Allen Key. Only tighten all bolts when you are satisfied with the alignment of all components.
- Page 6 Kempton Coffee Set Assembly Instructions Step Four Add the adjusting knob (Part O) to the bottom of the table leg. Put the table top part (Part C) into the table middle position. Step Five Put the table glass (Part K) on the table top.
- Page 7 Kempton Coffee Set Assembly Instructions Step Two Fasten the chair front part (Part E) with the right armrest part by bolts (Part L) and washers (Part N). Step Three Connect the chair left armrest part (Part J2) with the chair back part by insert and bolts (Part M) and washers (Part N).
- Page 8 Kempton Coffee Set Assembly Instructions Step Five Put the chair cushion (Part Q) on the seat. How to ... assemble the 2-seat sofa Step One Connect the sofa right armrest part (Part J1) with the sofa back part (Part G) by insert.
- Page 9 Kempton Coffee Set Assembly Instructions Step Two Fasten the sofa front part (Part H) with the right armrest part by bolts (Part L) and washers (Part N). Step Three Connect the sofa left armrest part (Part J2) with the sofa back part by insert and bolts (Part M) and washers (Part N).
- Page 10 Kempton Coffee Set Assembly Instructions Step Four Put the sofa seat part (Part I) into the sofa seat. Add the adjusting knob (Part O) to the bottom of the armrest. Step Five Put the sofa seat cushion (Part P) on the seat.
