2. Click Connection, select the port, specify the COM port the receiver is
connected to. Click Connect to connect to the receiver.

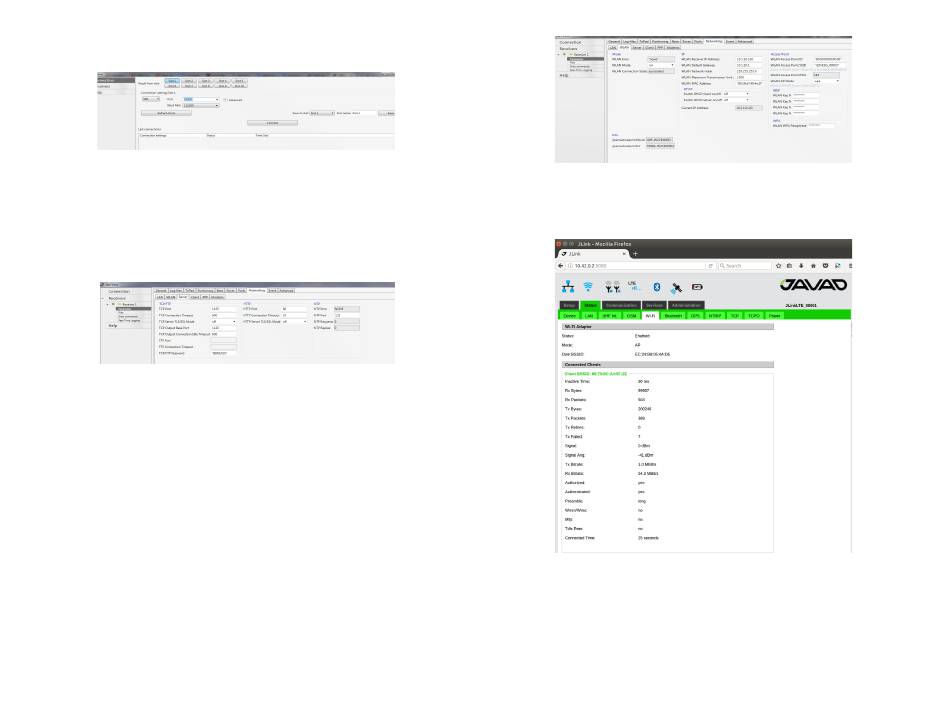

Figure 28. NetView connection tab
3. Select the receiver from the list of the connected receivers and click
Parameters/Networking/Server , to setup Service port.
• Set the TCP/FTP parameter: TCP Port (1125).
• Set the TCP/FTP parameter: TCP Output Base Port (1120).
• Click "Apply".
Figure 29. NetView Server tab
4. Select the receiver from the list of the connected receivers and click
Parameters/Networking/WLAN, to setup the Wi-Fi connection.
• Set the following IP parameters: WLAN Receiver IP Ad-
dress(10.1.10.120), WLAN Default Gateway (e.g, 10.1.10.1), and WLAN
Network Mask (e.g, 255.255.255.0).
• Set the AccessPoint parameters: WLAN Access Point ID (enter SSID
of HPT435BT JL), WLAN AP mode(wpa).
• Set the WPA parameter: WLAN WPA Passphrase (enter passphrase
of HPT435BT JL).
• Set the WLAN Mode to on and click "Apply".
18
Figure 30. NetView WLAN configuration tab
After restarting the device you can check the Wi-Fi connection in the
web interface Status/Wi-Fi tab of HPT435BT JL.
Figure 31. HPT435BT JL Wi-Fi status tab
Now TRIUMPH-2 can provide the services trough the Internet by 1120-
1125 port.
