Javad HPT435BT JL User Manual page 16

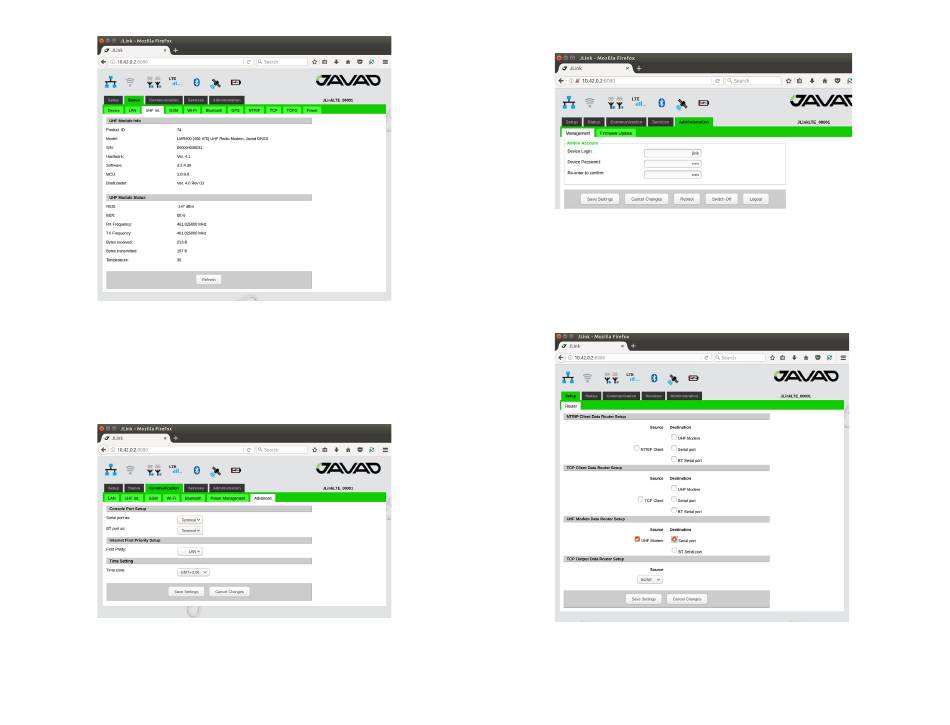

Figure 22. HPT435BT JL UHF Int. Status tab
3. Setup Serial Port
In the Communication/Advanced tab select "Serial port as" parameter
as Terminal.
Click "Save Setting" button and wait until finish.
Figure 23. HPT435BT JL Advanced tab
4. Reboot device
In the Administration/Management tab click "Reboot" button and wait
16
until reboot.
Figure 24. HPT435BT JL Administration Management tab
5. Setup Router
In the Setup/Router tab select following parameters "UHF Modem" as
Source and "Serial port" as Destination.
Click "Save Setting" button and wait until finish.
Figure 25. HPT435BT JL UHF Modem Router tab
6. Connect Serial Port
Use any application to connect serial port of HPT435BT JL with follow-
www.javad.com
