Javad HPT435BT JL User Manual page 13

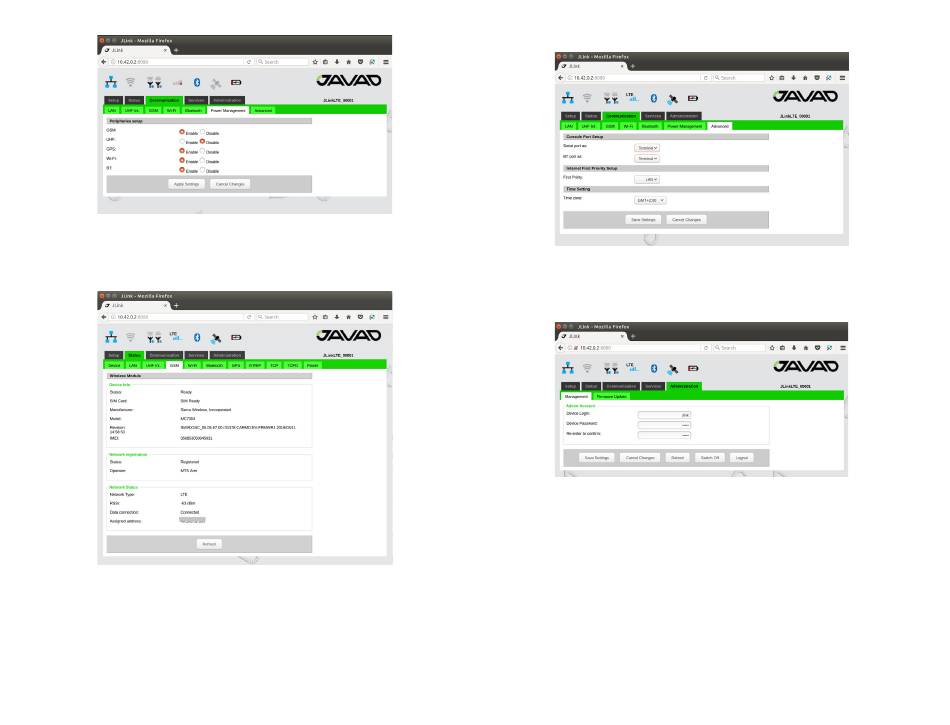

Figure 13. HPT435BT JL Power Management tab
Wait for registering in the network and Internet access availability .
Detailed connection status you can check in Status/GSM tab.
Figure 14. HPT435BT JL GSM Status tab
It is possible also to connect HPT435BT JL to Internet via LAN or Wi-Fi
using any Wi-Fi router, MiFi device or even smart-phone configured in
hot spot mode.
3. Setup Serial Port. In the Communication/Advanced tab select "Serial
port as" parameter as Terminal. Click "Save Setting" button and wait
www.javad.com
until finish.
Figure 15. HPT435BT JL Advanced tab
4. Reboot device. In the Administration/Management tab click "Reboot"
button and wait until reboot.
Figure 16. HPT435BT JL Administration Management tab
5. Setup Router. In the Setup/Router tab select following parameters
"NTRIP Client" as Source and "Serial port" as Destination. Click "Save
Setting" button and wait until finish.
13
