Javad HPT435BT JL User Manual page 11

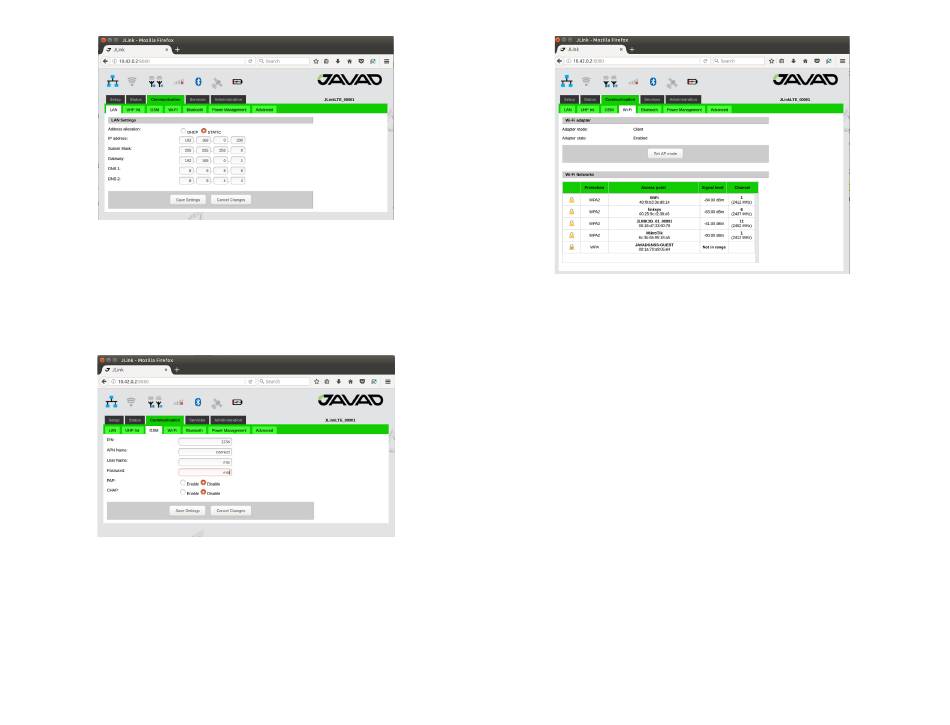

Figure 7. LAN configuration tab
GSM/LTE/4G: Configure this interface using Communication/GSM tab.
Set the APN parameters (if necessary) and select the SIM-card slot. In
the Communication/Power Management tab activate the interface and
wait for registering in the network and Internet access availability. More
detailed connection status you can check in Status/GSM tab see below.
Figure 8. GSM configuration tab
Wi-Fi client: In the Communication/Wi-Fi it is necessary to switch the in-
terface to the client mode. In the Communication/Power Management
tab turn the Wi-Fi interface on. Select the network you would like to con-
nect in the Communication/Wi-Fi tab, enter password to get access and
wait for the connection see below. More detailed connection status you
can check in Status/Wi-Fi tab.
www.javad.com
Figure 9. Wi-Fi client configuration tab
Access to Serial port via Network: In the Communication/Advanced tab
it is necessary to select Serial port as Console (see figure below) and
reboot deice from Administration/Management or do power cycle. After
reboot the device is ready for connection to serial port CLI interface with
user name "jlink" password "jLTEXXXXX" where "XXXXX" is serial number
of device which is written in device label. For connecting to HPT435BT
JL serial port needed to setup with following parameters:
• Baudrate 115200
• Parity none
• Data Bits 8
• Stop Bits 1
• Handshake hardware
11
