Commend SIP-WS 211V DA Manual

SIP station SIP-WS 211V DA with induction loop

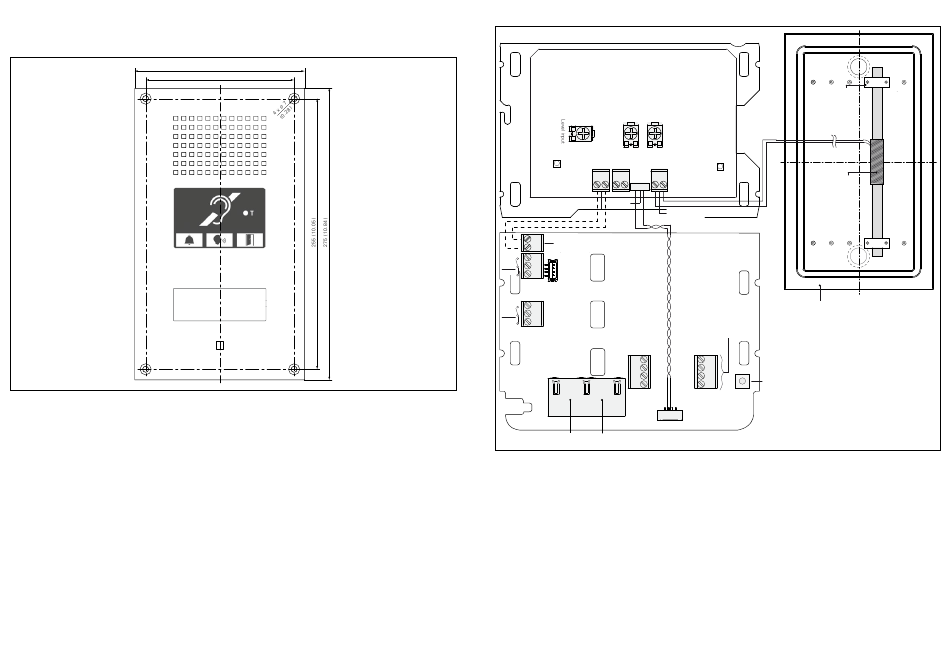

Dimensions and recommended mounting height
Measuring units in mm (in), not to scale! Front panel thickness: 3 mm (0.12 in)
Extent of supply
• SIP station
• Induction loop and mounting kit
• Mounting screws (4 x Torx TR 25 security countersunk screws, M5x10)
• Device identification document
• Short reference
Safety warnings
• This device shall be installed or replaced by trained and qualified personnel only.
• Do not install the device on unstable walls or on surfaces, which cannot support the device's weight.
• Only use recommended tools when installing the device.
• Only accessories that comply with the device's technical specifications shall be used.
• All connected circuits shall fulfil the requirements for Safety Extra Low Voltage (SELV) and Limited
Power Source (LPS) according to IEC/EN 60950-1.
• Use shielded Ethernet cables only.
• Before using the device, ensure all cables are correctly connected and not damaged.
• Disconnect the power supply (PoE or DC) for any maintenance of the device.
• Allow the device to cool down completely before touching parts inside.
• Do not make any unauthorised modifications to the device.
160 (6.3)
140 (5.5)
Connection diagram
MLC Loop
Current
LED "Power"
+ - - + - -
LINE IN
External power supply
Output
15 VDC – 26 VDC
Induction loop
DC– External power supply
24 VDC (± 2 V)
DC+
OUT 2
OUT 2
OUT 2
OUT 1
OUT 1
IN 1
IN 2
IN 3
GND
IP uplink IP downlink
+ PoE
Cleaning instructions
The device may only be cleaned with cleaning agents for stainless steel. Do not use cleaning agents
containing chlorine or isopropanol.
Mounting clip
LED
"Adjust"
Induction loop
Surface or flush mount kit
External
loudspeaker module
MUTE
GND
Factory
LINE–
Reset
LINE+
button
