Bowflex SelectTech 2080 Installation Manual page 3

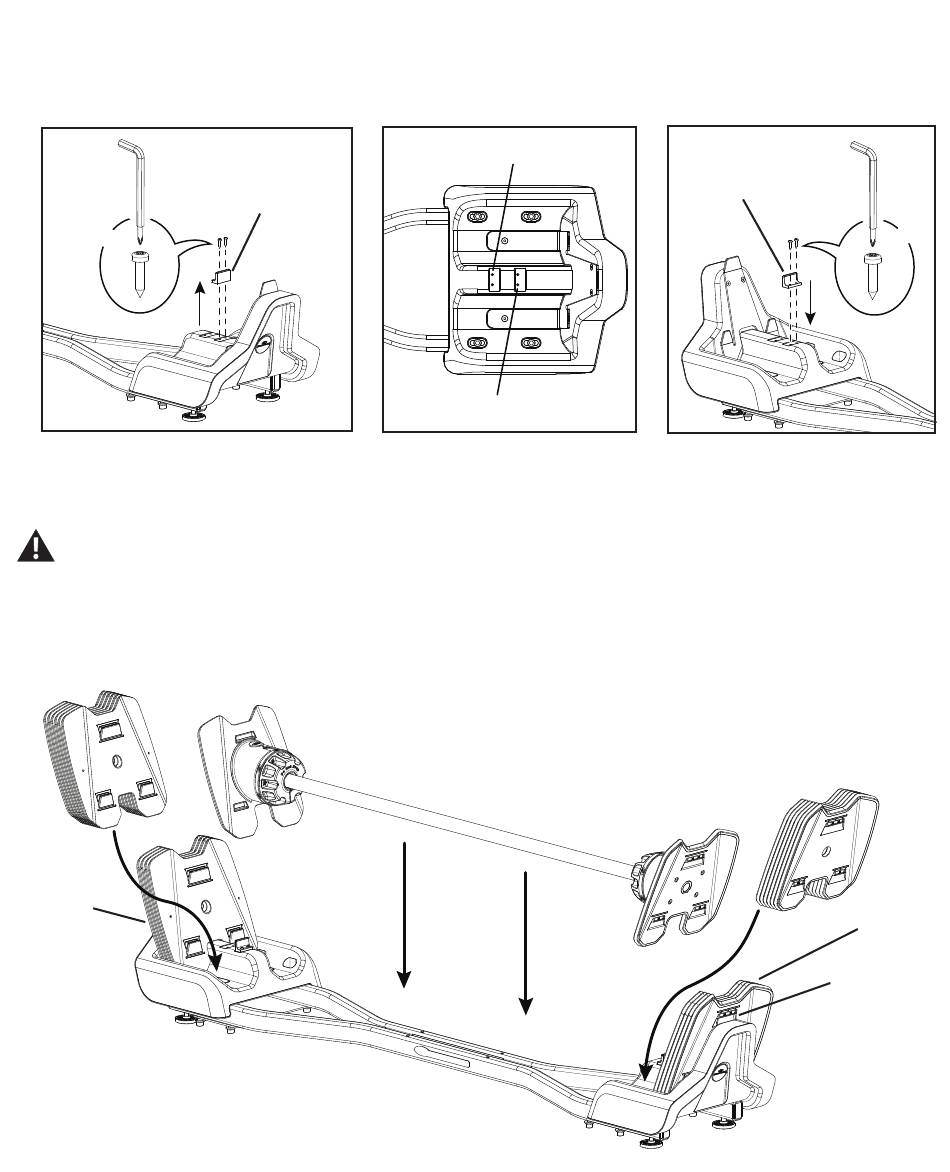

3. Move Lock Pin Actuators
NOTICE: Remove the Lock Pin Actuators and re-install in the inner set of screw holes in the Base End Shrouds to fit the
120-lb barbell configuration.
#2
X4
4. Put Upgrade Weight Plates, Original Weight Plates and Barbell Assembly in the Base
In order to avoid possible serious injury, when placing the Weight Plates in the Base Assembly, be careful
to avoid fingers or hands being caught or pinched.
Note: Be sure that the Weight Plates are fully seated in the Base. Ensure there are no large gaps between Weight
Plates, and all weight plate tabs are aligned and locked together. Make sure the locking tab at the top of each
Base End Shroud is seated in the selection lip at the top of the back Weight Plate.
Upgrade
plates (4)
Lock pin
actuator
(X2)
Inner
Outer
Lock pin
actuator
#2
(X2)
Locking tab
X4
Upgrade
plates (4)
