Assembly - Bowflex SelectTech 2080 Installation Manual

Weight:
Dimensions (Barbell set with Weight Upgrade plates): 158.6 cm L x 29.8 cm W x 32.2 cm H (62.4" x 11.7" x 12.7")

Assembly

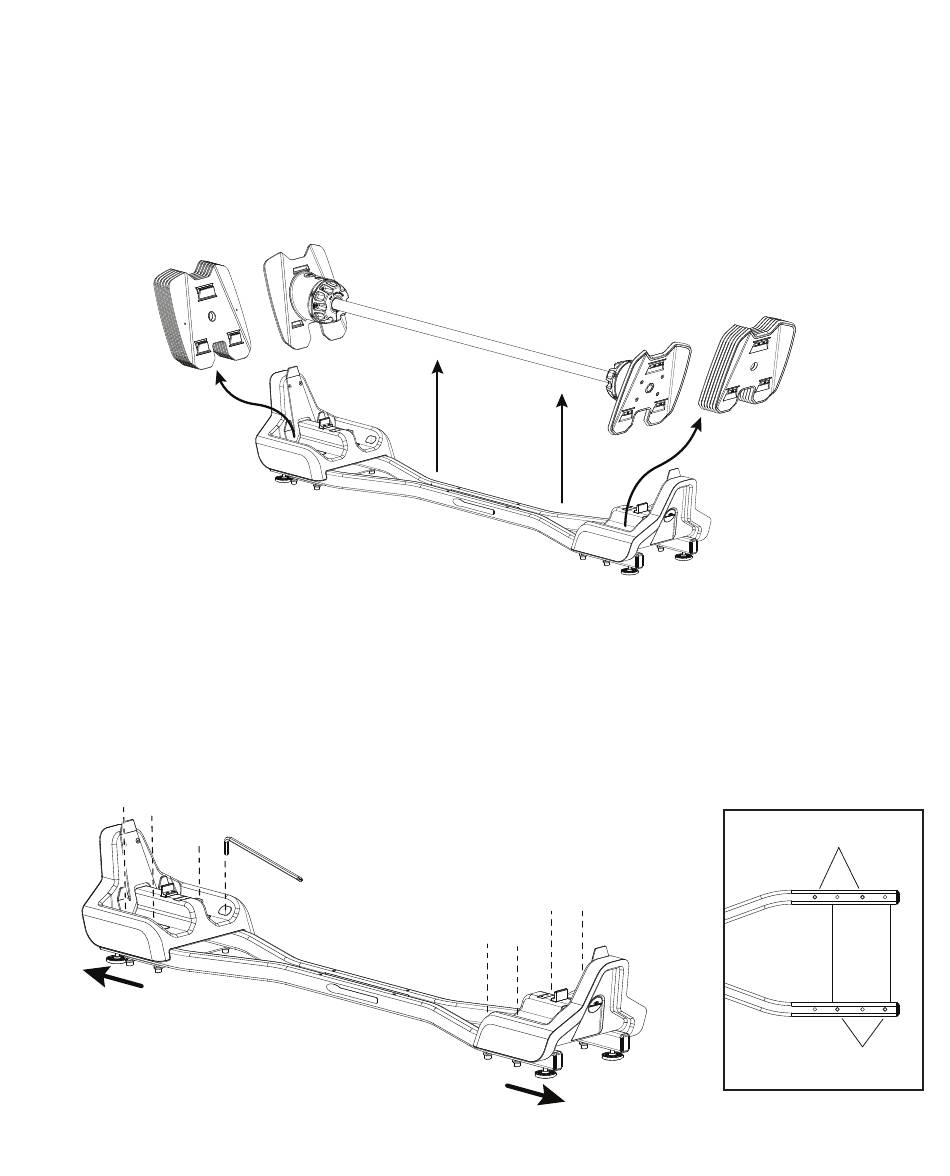

1. Remove the Barbell and Weight Plates from the Base
Note: Before removing the Barbell, set the adjustment knobs to the lowest weight selection (9.1 kg /20 lbs.).
2. Loosen the Screws and Slide the Base End Shrouds Outward
NOTICE: Do not remove the screws. Align Shrouds with the outer set of screw holes in the Base Tubes to fit the 120-lb
barbell configuration.
Note: Do not fully tighten screws. Shrouds should still slide.
X8
6mm
18.1 kg (40 lbs)
Inner
Outer
