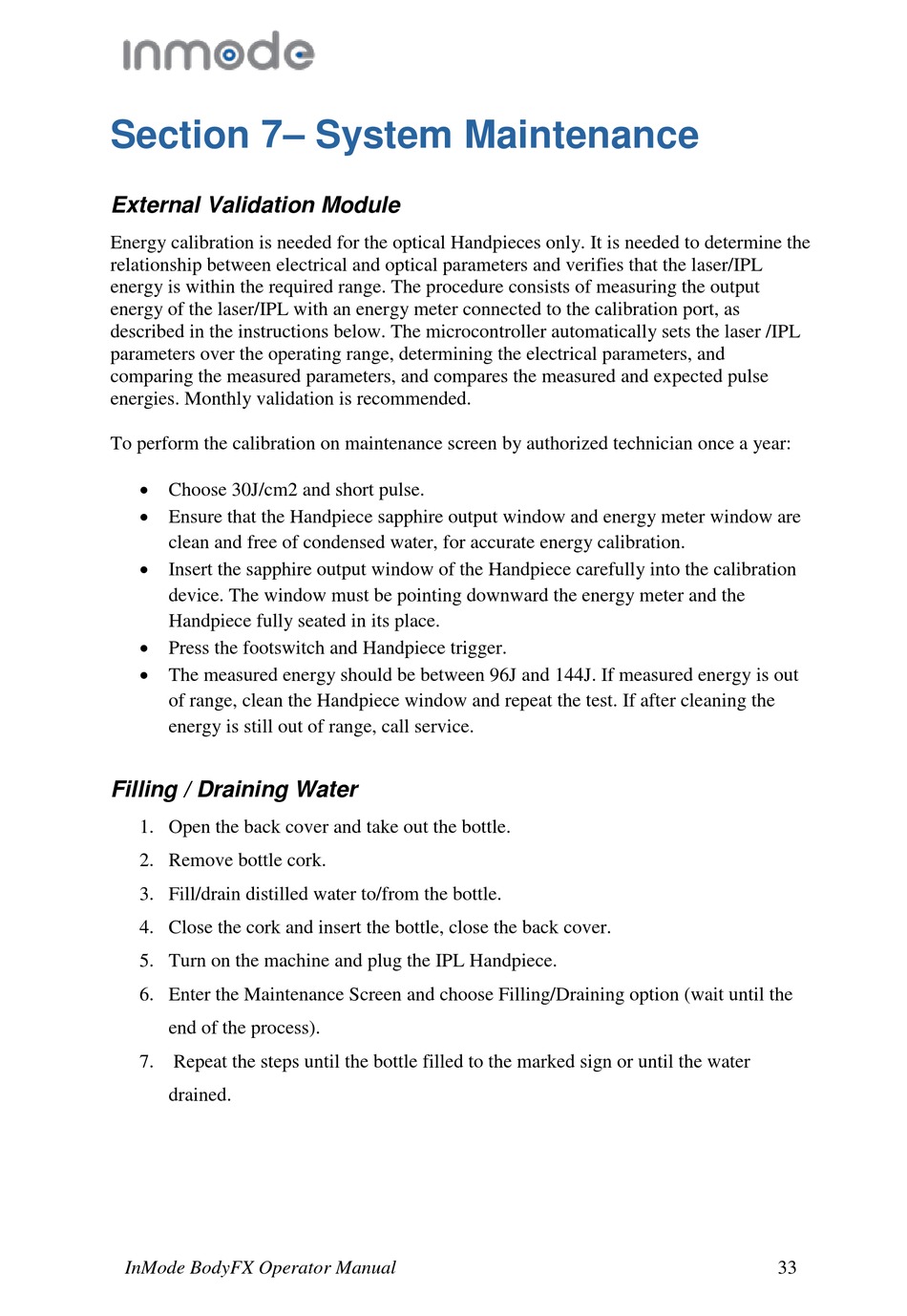

Section 7– System Maintenance

External Validation Module

Energy calibration is needed for the optical Handpieces only. It is needed to determine the
relationship between electrical and optical parameters and verifies that the laser/IPL
energy is within the required range. The procedure consists of measuring the output
energy of the laser/IPL with an energy meter connected to the calibration port, as
described in the instructions below. The microcontroller automatically sets the laser /IPL
parameters over the operating range, determining the electrical parameters, and
comparing the measured parameters, and compares the measured and expected pulse
energies. Monthly validation is recommended.
To perform the calibration on maintenance screen by authorized technician once a year:
 Choose 30J/cm2 and short pulse.
 Ensure that the Handpiece sapphire output window and energy meter window are
clean and free of condensed water, for accurate energy calibration.
 Insert the sapphire output window of the Handpiece carefully into the calibration
device. The window must be pointing downward the energy meter and the
Handpiece fully seated in its place.
 Press the footswitch and Handpiece trigger.
 The measured energy should be between 96J and 144J. If measured energy is out
of range, clean the Handpiece window and repeat the test. If after cleaning the
energy is still out of range, call service.

Filling / Draining Water

1. Open the back cover and take out the bottle.
2. Remove bottle cork.
3. Fill/drain distilled water to/from the bottle.
4. Close the cork and insert the bottle, close the back cover.
5. Turn on the machine and plug the IPL Handpiece.
6. Enter the Maintenance Screen and choose Filling/Draining option (wait until the
end of the process).
7. Repeat the steps until the bottle filled to the marked sign or until the water
drained.
