Choose the BodyFX application from the menu screen by pressing the green key at
bottom right, and the Treatment Screen will appear.
RF Power
Cut-Off
Temperature
Pulse Width
Measured
Temperature and
Vacuum
Selection Frame
InMode BodyFX Operator Manual

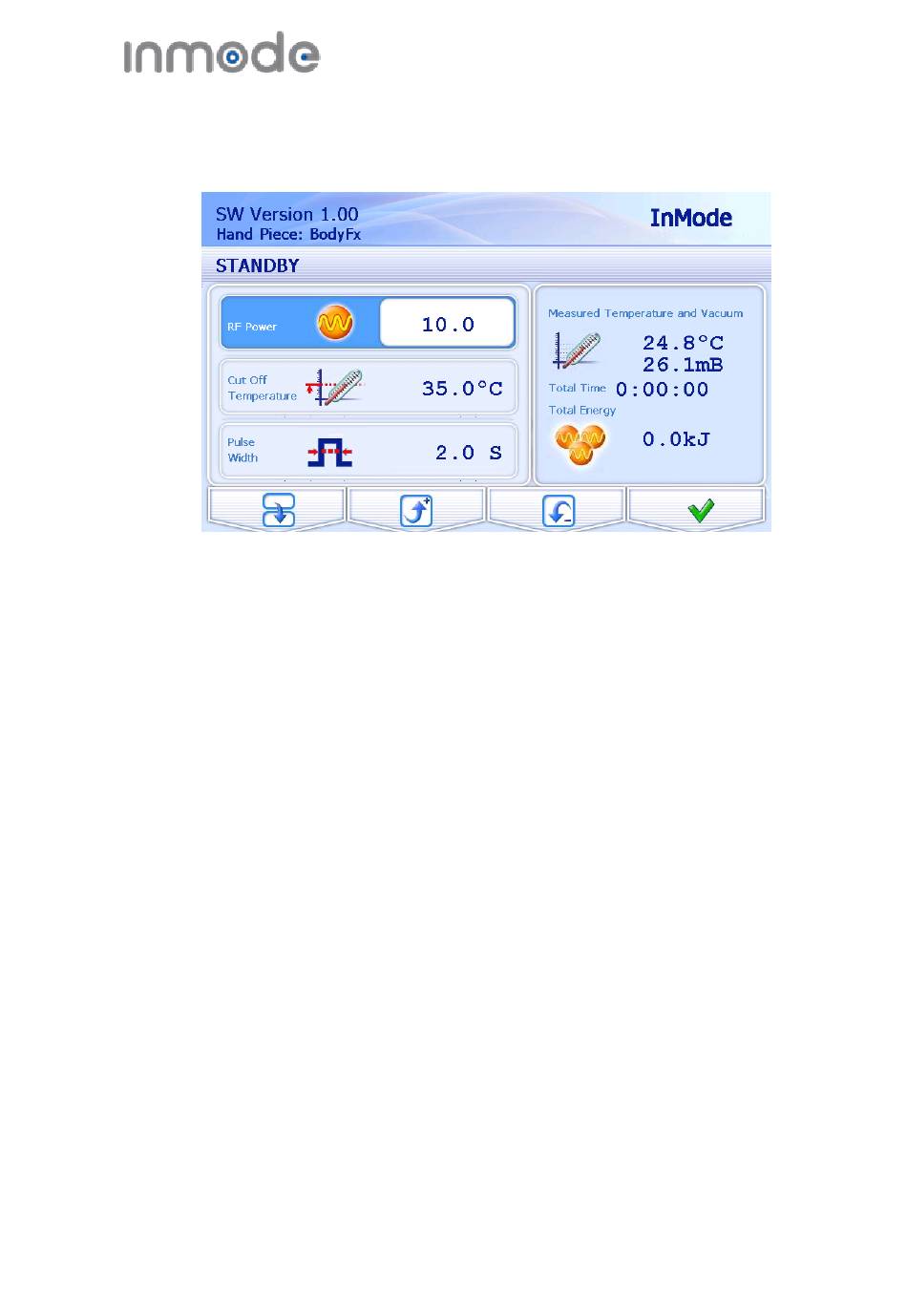

Figure 4.7 Treatment Screen
RF power is changed within the limits allowed for the connected
Handpiece. Power level settings are changed from 10 to50W and the
System starts up at minimal power level setting.
This indicator shows the Cut-Off temperature, which is adjustable
o o
from 35 C up to 43 C. This indicates measured temperature at which
the RF delivery is stopped.
This indicator shows the time period during which vacuum is applied
and warming RF energy is delivered, which is adjustable from 2 to
7sec.
This indicators shows on line the skin surface temperature and the
current negative pressure applied, with a maximal Temperature of 43
And -500mBar maximal Vacuum level.
The frame selects parameters that can be changed by functional keys.
o
C
