Front Panel and Operator Control Panel

The Operator Control Panel is located on the upper side of the System. The Operator
Control Panel consists of an LCD screen and four buttons.

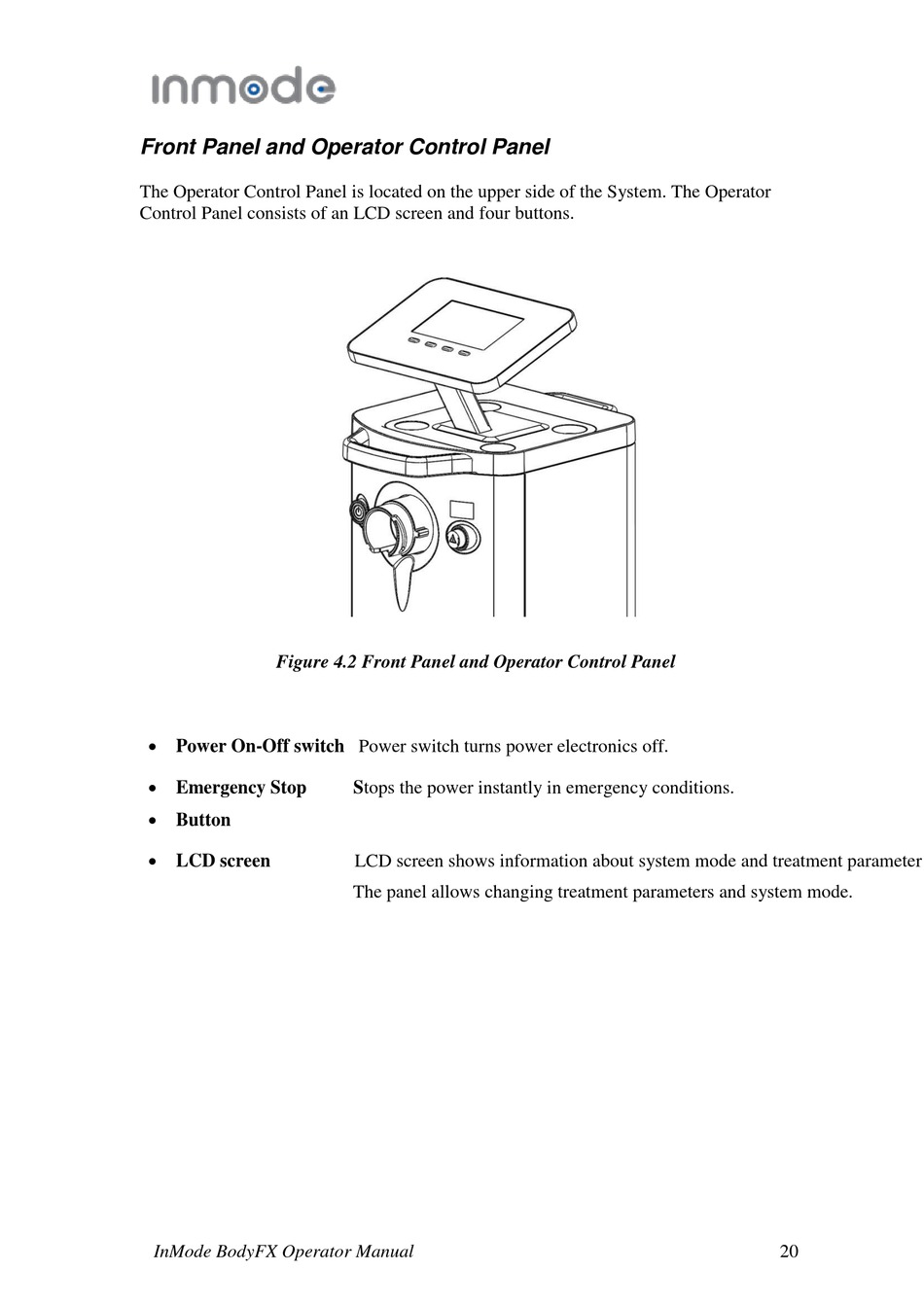

Figure 4.2 Front Panel and Operator Control Panel
 Power On-Off switch Power switch turns power electronics off.
 Emergency Stop
 Button
 LCD screen
InMode BodyFX Operator Manual
Stops the power instantly in emergency conditions.
LCD screen shows information about system mode and treatment parameters
The panel allows changing treatment parameters and system mode.
