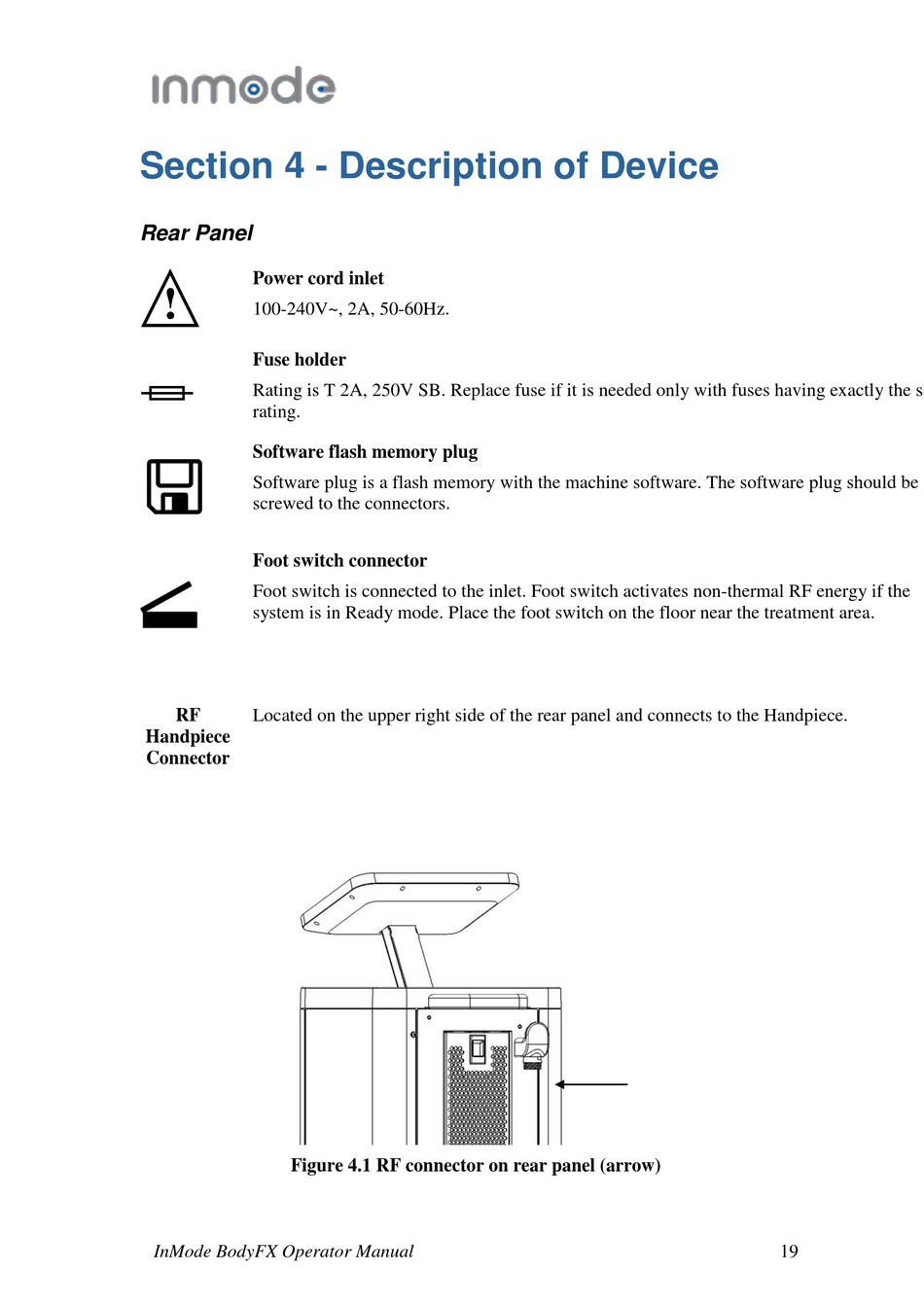

Section 4 - Description of Device

Rear Panel

Power cord inlet
! !
100-240V~, 2A, 50-60Hz.
Fuse holder
Rating is T 2A, 250V SB. Replace fuse if it is needed only with fuses having exactly the sa
rating.
Software flash memory plug
Software plug is a flash memory with the machine software. The software plug should be
screwed to the connectors.
Foot switch connector
Foot switch is connected to the inlet. Foot switch activates non-thermal RF energy if the
system is in Ready mode. Place the foot switch on the floor near the treatment area.
Located on the upper right side of the rear panel and connects to the Handpiece.
RF
Handpiece
Connector
Figure 4.1 RF connector on rear panel (arrow)
InMode BodyFX Operator Manual
19
