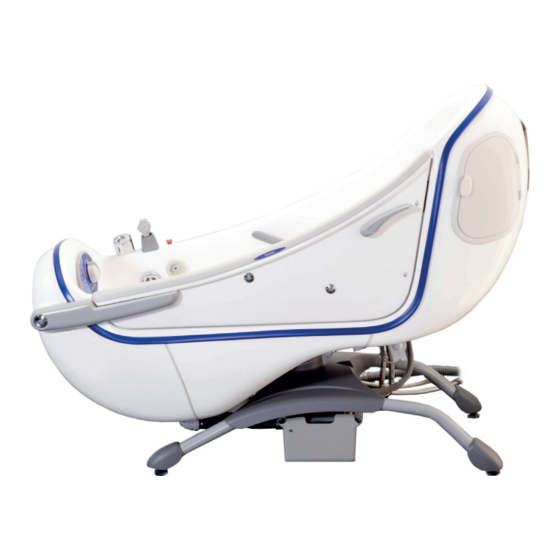

Arjo Parker Quick Reference Manual

QUICK REFERENCE GUIDE - CLEANING AND DISINFECTION
Parker
Disinfect with integrated spray handle
Remove visual residue
1
Put on protective gloves
and eye wear.
Determine the disinfectant mixing ratio
5
Lift out the disinfection spray
handle.
Clean
9
Spray disinfectant in the drain.
Scrub drain with a brush.
Step 13–23 for Air spa only
13 14
Place the
disinfection
spray handle into
the inlet. Turn
Recline the
left or right to
bathtub.
secure tightly.
18
19
5 seconds
Place the
shower handle
into the inlet.
Turn left or
Deactivate the
right to secure
disinfection
tightly.
button.
2
The bathtub should be in upright position
with all functions turned off.
6 7
5 seconds
Activate the
Spray into the bathtub until the flow meter shows correct mixing value according
disinfection
to the Instructions for use. Adjust knob on the suction hose if needed.
button.
10 11
Close the drain.
Spray disinfectant on all internal surfaces
and all sides of the accessories.
15
Press and hold the trigger. Disinfectant must
flow from all nozzles for at least 30 seconds.
20
Activate the
shower button.
08.AL.01_5EN • 06/2020 • Page 1/4
3
Open the drain.
Place all accessories at the bottom.
21
Press and hold the trigger. Clean water must
flow from all nozzles for at least 30 seconds.
4
Shower with water to
remove visible residue.
8
Mixing
temperature
20°C (68°F).
12
Scrub internal surfaces and
accessories thoroughly.
16 17
Release the trigger and
remove the spray handle.
22
Remove the
shower handle.
Continue with the steps on the next page
For Parker
without Air
spa go to
step 24.
Put back the
spray handle.
23
Raise
bathtub to
upright
position.
