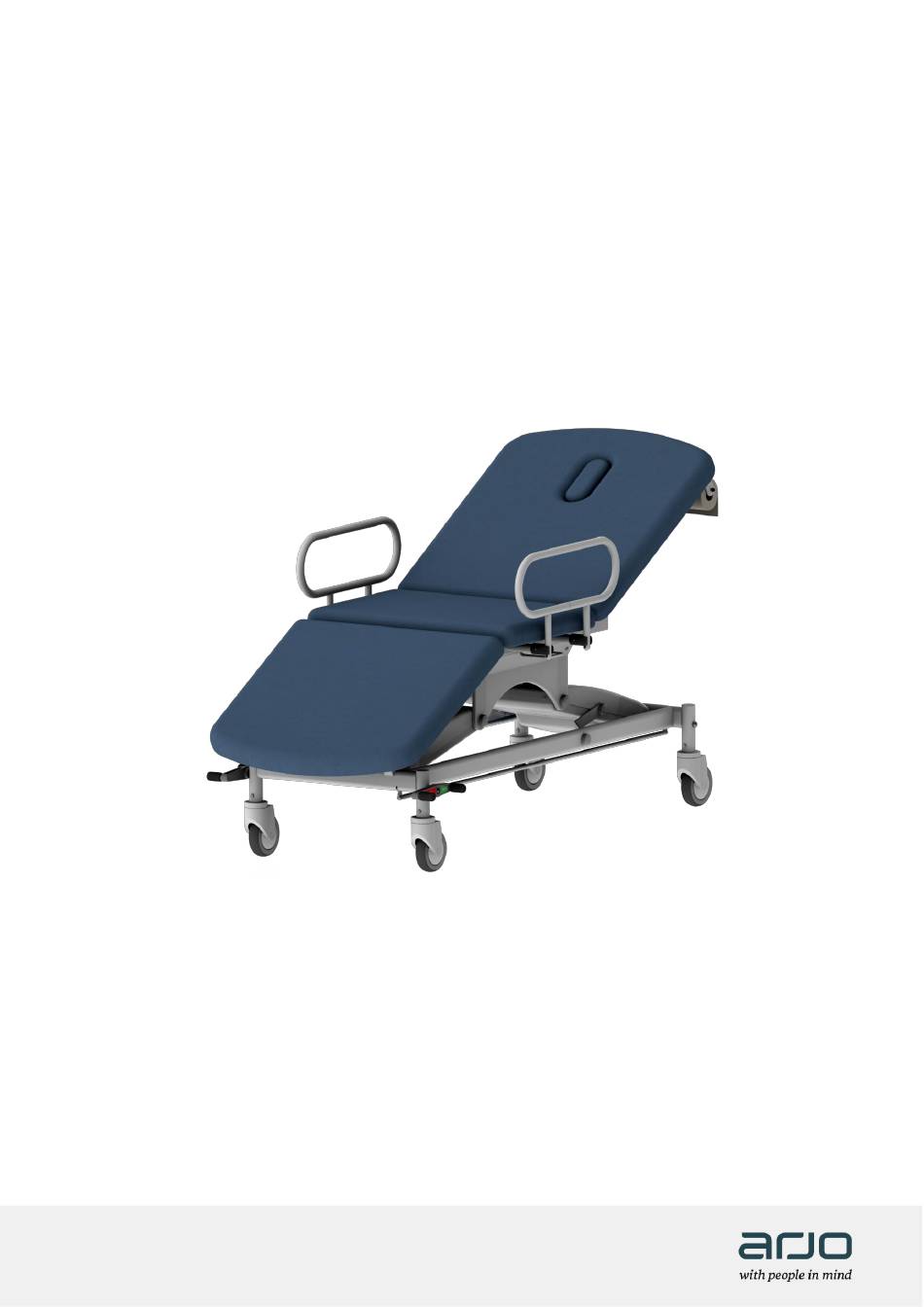

- Page 1 INSTRUCTIONS FOR USE Prioma Couch Range Electric COU-E-REV12-080920...
-
Page 2: Table Of Contents
CONTENTS WARNINGS & CAUTIONS 2 - 3 INTRODUCTION About This Manual Intended Area of Use Features Product Overview INSTALLATION Electricity Supply Placement of Handset OPERATION Handset Controls Platform Height Adjustment Backrest Adjustment Knee Positioning Adjustment Battery Backup (if fitted) Central Locking Castor System Fold-down Arms (if fitted) Paper Roll Holder (if fitted) PRODUCT CARE... -
Page 3: Warnings & Cautions
It is recommended that the instructions for use be kept in an easily accessible place for quick reference. If required, Arjo product specialists can provide additional training. All warnings and cautions within this manual should be strictly adhered to. Failure to do so could result in harm to the patient, or operator. - Page 4 1. WARNINGS & CAUTIONS - Continued GENERAL SAFETY WARNINGS • This product is not designed to be used with a mattress. • Before operating the couch make sure that the patient is safely positioned to avoid entrapment. • Before transporting the couch make sure the power cable is disconnected from mains power and stored safely.
-
Page 5: Introduction
2. INTRODUCTION 2.1 About This Manual The INSTRUCTIONS FOR USE contains information for the installation, use and maintenance of the Prioma Electric Couch range. Be sure to read this manual completely before assembly and operation. Not following the precautions in the instruction manual, could result in harm to patients or operators. -
Page 6: Product Overview

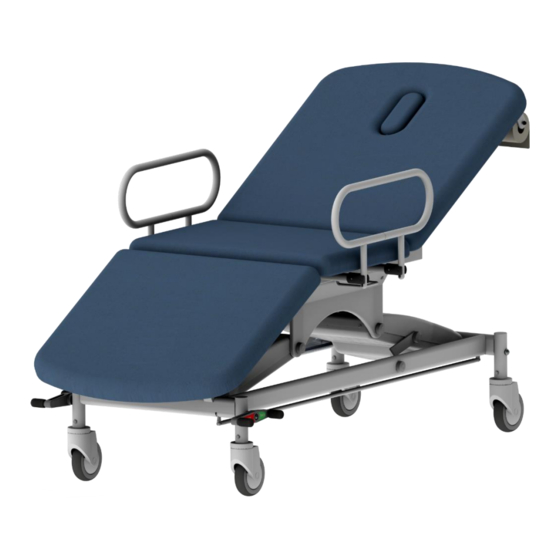

2. INTRODUCTION - Continued 2.4 Product Overview A. Paper Roll Holder (if fitted) B. Fold-down Arms (if fitted) C. Power Cable Storage Hooks (not shown in image) D. 125mm Central Locking Castors x 4 E. ABS Plastic Crank Arm Covers F. -
Page 7: Installation
3. INSTALLATION The following chapter describes how to install the couch. WARNING If the power supply cord or plug is damaged, the complete assembly must be replaced by authorised service personnel. Do not remove the fitted plug or use a rewireable plug or adapter. -
Page 8: Operation
4. OPERATION 4.1 Handset Controls WARNING It is recommended that the couch be positioned at its lowest height when unattended by caregivers to minimise the risk of patient injury from falls. Ensure that there is adequate clearance between the outer extremities of the couch and other building fixtures and equipment when operating couch functions. -
Page 9: Platform Height Adjustment
4. OPERATION - Continued 4.2 Platform Height Adjustment To move the couch platform up or down, press and hold the appropriate button on the handset. The platform height can be adjusted through a range of 450mm low height to a high height of 940mm. -
Page 10: Central Locking Castor System
4. OPERATION - Continued 4.6 Central Locking Castor System The central locking castor system is operated by use of foot pedals found at the foot end of the bed. WARNING Operate the brake pedals with your feet while wearing suitable shoes. Do not operate the pedals with your hands. -
Page 11: Fold-Down Arms (If Fitted)
4. OPERATION - Continued 4.7 Fold-down Arms (if fitted) The optional Fold-down Arms (if fitted) can be easily lowered when not required. Note: The fold down arms for the Prioma 2 & 3 section couch are shorter in length than the Prioma 1 section couch. -
Page 12: Paper Roll Holder (If Fitted)
4. OPERATION - Continued (if fitted) 4.8 Paper Roll Holder The Prioma couch can be equipped with a paper roll holder which (if fitted) is located at the head end of the couch. To Install or Change the Paper Roll: 1. -
Page 13: Preventative Maintenance
The following preventative maintenance procedures should be carried out every 12 months. Other than general maintenance activities all other service or repair work must be performed by qualified and trained persons who are approved by Arjo. WARNING The couch must be disconnected from the mains power supply before starting any maintenance activity. - Page 14 Handset. Preventative Maintenance Checks Arjo recommends that the full check and testing regime is conducted between each couch use, or worst case during annual preventative maintenance. This should take no more than one (1) minute to complete.
-
Page 15: Troubleshooting
Control box and Footswitch Check the plugs are fully plugs disconnected inserted in the control box. Blown fuse Contact your local Arjo Service Department. Damaged footswitch cable Replace footswitch Control box overheated Allow control box to cool due to excessive use down. -
Page 16: Prioma Electric Couch Specifications
6. PRIOMA ELECTRIC COUCH SPECIFICATIONS Dimensions Couch Model Number of Sections 1 section 2 section 3 section Length (mm) (+/- 10mm) 1945 1945 1945 Width (mm) (+/- 10mm) Width with Fold-down Arms (+/- 10mm) Deck Height Range (mm) (+/-10mm) 450 to 940 450 to 940 450 to 940 Backrest Angle Adjustment (+/-5°... -
Page 17: Product Identification Label
7. PRODUCT IDENTIFICATION LABEL Description Symbol / Label Prioma Couch Product Identification Label Safe Working Load Refer to Instructions for Use Date of Manufacture Product Reference Number 11 Digit Code Representing Various Options & Build Types Product Serial Number Manufacturer Indicates the Product is a Medical Device –... -
Page 18: Product Lifetime & End Of Life Disposal
Incorrect disposal of this equipment and its components parts, particularly gas springs, actuators, batteries and other electrical devices, may produce substances that are hazardous to the environment. To minimise these hazards, contact Arjo for information on correct disposal. 9.2 Transportation and Storage Handle with care: The Pacific couch should be stored in a clean, dry well-ventilated area. -
Page 19: Warranty & Service
10. WARRANTY AND SERVICE Arjo’s standard terms and conditions apply to all sales. A copy is available on request. These contain full details of warranty terms and do not limit the statutory rights of the consumer. For service, maintenance and any questions regarding this product, please contact your local Arjo office or approved distributor. - Page 20 At Arjo, we are committed to improving the everyday lives of people affected by reduced mobility and age-related health challenges. With products and solutions that ensure ergonomic patient handling, personal hygiene, disinfection, diagnostics, and the effective prevention of pressure ulcers and venous thromboembolism, we help professionals across care environments to continually raise the standard of safe and dignified care.
