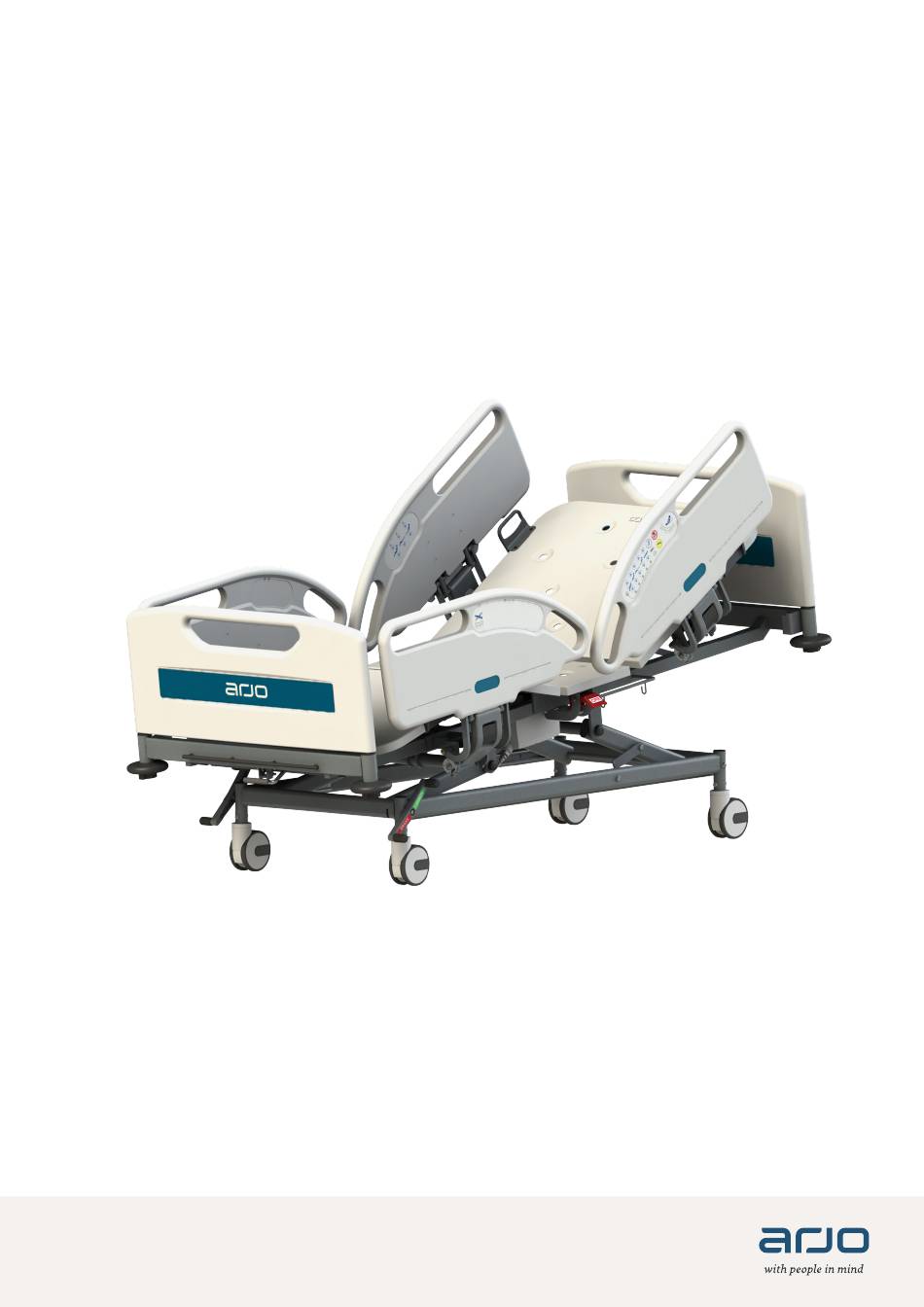

  • Page 1 INSTRUCTIONS FOR USE Prioma Medical Bed 04.PA.00-EN_03 · 08/2019...

  • Page 2: Table Of Contents

    5.4 Calf and Thigh Panel Adjustment 5.5 Head and Foot Panels 5.6 Manual Cardiopulmonary Resuscitation (CPR) Function 5.7 Prioma Bed Range Side Rail Configurations 5.8 3/4 Length Fold Down Tubular Rail Operation 20 - 21 5.9 Drop Down Split Side Rails Operation...

  • Page 3: Introduction

    This requires the bed to be plugged to mains power. Prioma beds are electrically actuated acute care beds that have a range of functions and positional movements that assist caregivers and provide for patient comfort. Ease of use, functionality, serviceability and cleaning practicality are key features of the Prioma bed.

  • Page 4: Warnings & Cautions

    Do not use electrically operated beds in the presence of flammable gases. • Do not use electrically operated beds in operating theatres. • Use the bed to support one patient only. The Prioma bed is intended for one • person use and may become unstable if used incorrectly. •...
  • Page 5 Side Rails must only be used with a mattress of the correct size which is • approved for use with the bed. The maximum mattress thickness for the Prioma bed is 170mm, the minimum • mattress size is 125mm. WARNING Ensure that the patient, caregivers and bedside equipment is not positioned to •...

  • Page 6: Electronic Control Devices

    NOTE: The following category covers the range of electronic control devices and functions that are available on the Prioma bed range. The devices that are relevant depends on the model supplied. Some devices can be added if not fitted at time of purchase. Your Arjo specialist can assist you with after sales support on Prioma accessories and options.

  • Page 7: Attendant Control Panel (Acp)

    3. ELECTRONIC CONTROL DEVICES - Continued 3.2 Attendant Control Panel (ACP) – Lock Out Box The Attendant Control Panel (ACP) is a fixed unit at the foot end of the bed which can be used to operate the beds functions. The function of the ACP is to lock out and prevent unauthorised operation of the beds main functions.

  • Page 8: Nurse Side Control Panel

    3. ELECTRONIC CONTROL DEVICES - Continued 3.4 Nurse Side Control Panel Head End Single button press, to go for all functions. Lock out to hi-low, back rest, knee break, auto contour and tilt positions. Emergency assist functions include chair position, Trendelenburg and bed levelling (CPR).

  • Page 9: Electronic Functions Described

    NOTE: The following categories cover the range of electronic control devices and functions that are available on the Prioma bed range. The devices that are relevant depends on the model supplied. Some devices can be added if not fitted at time of purchase. Your Arjo specialist can assist you with after sales support on Prioma accessories and options.
  • Page 10 4. ELECTRONIC FUNCTIONS DESCRIBED - Continued NOTE: This control function is not available on the Patient Handset and Inset Patient Control Panel. It is available on all other control devices fitted to the bed. To move the mattress platform up or down, press and hold the appropriate button or buttons on the control device.
  • Page 11 4. ELECTRONIC FUNCTIONS DESCRIBED - Continued • In use the mattress platform may initially rise before tilting. The bed will automatically adjust to ensure that there is adequate clearance between the mattress platform and the mechanical structure of the bed before tilting. •...
  • Page 12 4. ELECTRONIC FUNCTIONS DESCRIBED - Continued CAUTION When Emergency Patient Positioning Functions are activated, care should be taken over the potential of the beds moving parts to either trap or crush the patient, caregivers and or other equipment. Pressing the SINGLE BUTTON PRESS button, the bed will automatically level all positioning functions back to a flat deck position whilst lowering the bed to a safe working height.
  • Page 13 4. ELECTRONIC FUNCTIONS DESCRIBED - Continued LED light illuminates when the battery is in charge mode. IF FITTED with a battery backup system, it allows the electrically operated functions to be used for short periods when the bed is disconnected from mains power.
  • Page 14 4. ELECTRONIC FUNCTIONS DESCRIBED - Continued (15) Backrest Angle Indicator NOTE: IF FITTED the backrest angle indicator is on the Inset Nurse Side Control Panels at the head end of the bed. NOTE: The backrest angle indicator is not a powered unit. The backrest angle indicator is a ball bearing gravity based indication of the backrest angle.

  • Page 15: General Bed Operation

    5. GENERAL BED OPERATION 5.1 Castor Systems NOTE: The Prioma bed has a range of castor options available. The following section covers the two main types of locking and steering mechanisms that are used. Kick Stop / Pedal Brake Castors Four 125mm diameter single wheeled foot operated click on and off brake pedal operation.

  • Page 16: Bed Extension

    5. GENERAL BED OPERATION - Continued CAUTION Disconnect the bed power cord before moving the bed. • • Do not remove the power cord from the source by pulling on the cord. • Do not use the beds side rails to manoeuvre the bed. •...

  • Page 17: Calf And Thigh Panel Adjustment

    5. GENERAL BED OPERATION - Continued 5.4 Calf and Thigh Panel Adjustment The calf panel angle can be manually adjusted whenever the thigh section of the mattress platform is raised. The thigh section is adjustable through a range from 0° (flat position) to 35°...

  • Page 18: Head And Foot Panels

    5. GENERAL BED OPERATION - Continued 5.5 Head & Foot Panels The head and foot panels are easily removable from the bed allowing quick access to the patient. There are no clamps or screws that are required to be adjusted before removal. Installation &...

  • Page 19: Manual Cardiopulmonary Resuscitation (Cpr) Function

    5. GENERAL BED OPERATION - Continued 5.6 Manual Cardiopulmonary Resuscitation (CPR) Function A clearly marked emergency CPR release handle is available on both sides of the bed. The manual release function returns the beds backrest to a level position in the event of an emergency resuscitation being required.

  • Page 20: Prioma Bed Range Side Rail Configurations

    5. GENERAL BED OPERATION - Continued 5.7 Prioma Bed Range Side Rail Configurations Page | 19 Commercial in confidence. User Manual Revision CTK-REV7-14082019...

  • Page 21: 3/4 Length Fold Down Tubular Rail Operation

    5. GENERAL BED OPERATION - Continued 5.8 3/4 Length Fold Down Tubular Rail Operation IF FITTED the rails are either fully raised or folded down closed. When the side rail is raised to its full height position it will automatically lock in the positioning hole on the rails clamp plate.
  • Page 22 After adjustment of the side rail visually check the locking pin location. There should be no yellow shaft on the locking pin visible if locked correctly. DO NOT use other manufacturer’s side rails on the Prioma bed. • Page | 21...

  • Page 23: Drop Down Split Side Rails Operation

    The drop down side rails are fixed (bolted) in to place and if with inset control panels are hard wired to the beds control system and so are not removable. It is highly recommended that only trained technicians carry out maintenance on the Prioma drop down split sides. WARNING Do not operate side rails when there is potential of entrapment or crushing to the patient, caregivers, visitors and/or other equipment.

  • Page 24: Prioma Bed Specifications

    (Battery Backup Only) 1.2 amp hrs. Standards The Prioma acute care bed has been built to comply with International Standard IEC 60601-1 Section 9 and IEC 60601-2-52 Section 9 (Edition 3.1 2012-08) Page | 23 Commercial in confidence. User Manual Revision CTK-REV7-14082019...

  • Page 25: Cleaning

    Before cleaning always disconnect the bed from the mains power source. • NOTE: It is strongly recommended that protective clothing be used when carrying out any cleaning processes on the Prioma bed. NOTE: The following procedure also applies to the beds accessories but does not include mattresses.

  • Page 26: Maintenance

    NOTE: Other than general maintenance activities all other service or repair work must be performed by qualified and trained persons who are approved by Arjo. WARNING The bed must be disconnected from the mains power supply before starting any maintenance activity.
  • Page 27 8. MAINTENANCE - Continued BATTERIES A beeping sound heard during normal bed operation means that the battery is at low charge. Reconnect the bed to the mains power supply for a minimum of 24 hours. If the problem reoccurs use step 2 below for verification. Check the batteries condition every six months using the following procedure: 1.
  • Page 28 Nurse Arjo strongly advises that the Nurse Handset is visually inspected for obvious damage before each use if practicable. When using a specific function staff should be aware of, and checking for, any of the symptoms listed in point 3 below.

  • Page 29: Trouble Shooting

    Check that the handset controls are not deactivated on the patient lockout facility. Contact your local Arjo Blown fuse Service Department. Damaged handset cable Replace handset One actuator fails to work...

  • Page 30: Transportation And Storage

    10. TRANSPORTATION AND STORAGE Handle with care. The Prioma bed should be stored in a clean, dry well ventilated area. Do not drop and avoid shock or violent impact when transporting. The following limits apply during transport and or a storage period of up to 6 weeks...

  • Page 31: Prioma Bed Accessories

    11. PRIOMA BED ACCESSORIES There are a range of accessories to suit the Prioma bed available from Arjo. As well as the below listed equipment Arjo also specialises in a range of specialised medical equipment including static foam and air pressure mattresses.

  • Page 32: Prioma Bed Labels And Warnings

    12. PRIOMA BED LABELS AND WARNINGS Page | 31 Commercial in confidence. User Manual Revision CTK-REV7-14082019...
  • Page 33 12. PRIOMA BED LABELS AND WARNINGS - Continued Hazard Label Label identifies potential squeezing points on the bottom rail of bed side rails. The hazard is of a low risk nature and is shown for notification and risk management purposes.

  • Page 34: Warranty And Service

    13. WARRANTY AND SERVICE Arjo’s standard terms and conditions apply to all sales. A copy is available on request. These contain full details of warranty terms and do not limit the statutory rights of the consumer. 14. REGULATORY INFORMATION Caretek (China) Medical PLC...
  • Page 35 Intentionally left blank Page | 34 Commercial in confidence. User Manual Revision CTK-REV7-14082019...
  • Page 36 Intentionally left blank Page | 35 Commercial in confidence. User Manual Revision CTK-REV7-14082019...
  • Page 37 Intentionally left blank Page | 36 Commercial in confidence. User Manual Revision CTK-REV7-14082019...
  • Page 38 At Arjo, we are committed to improving the everyday lives of people affected by reduced mobility and age-related health challenges. With products and solutions that ensure ergonomic patient handling, personal hygiene, disinfection, diagnostics, and the effective prevention of pressure ulcers and venous thromboembolism, we help professionals across care environments to continually raise the standard of safe and dignified care.
