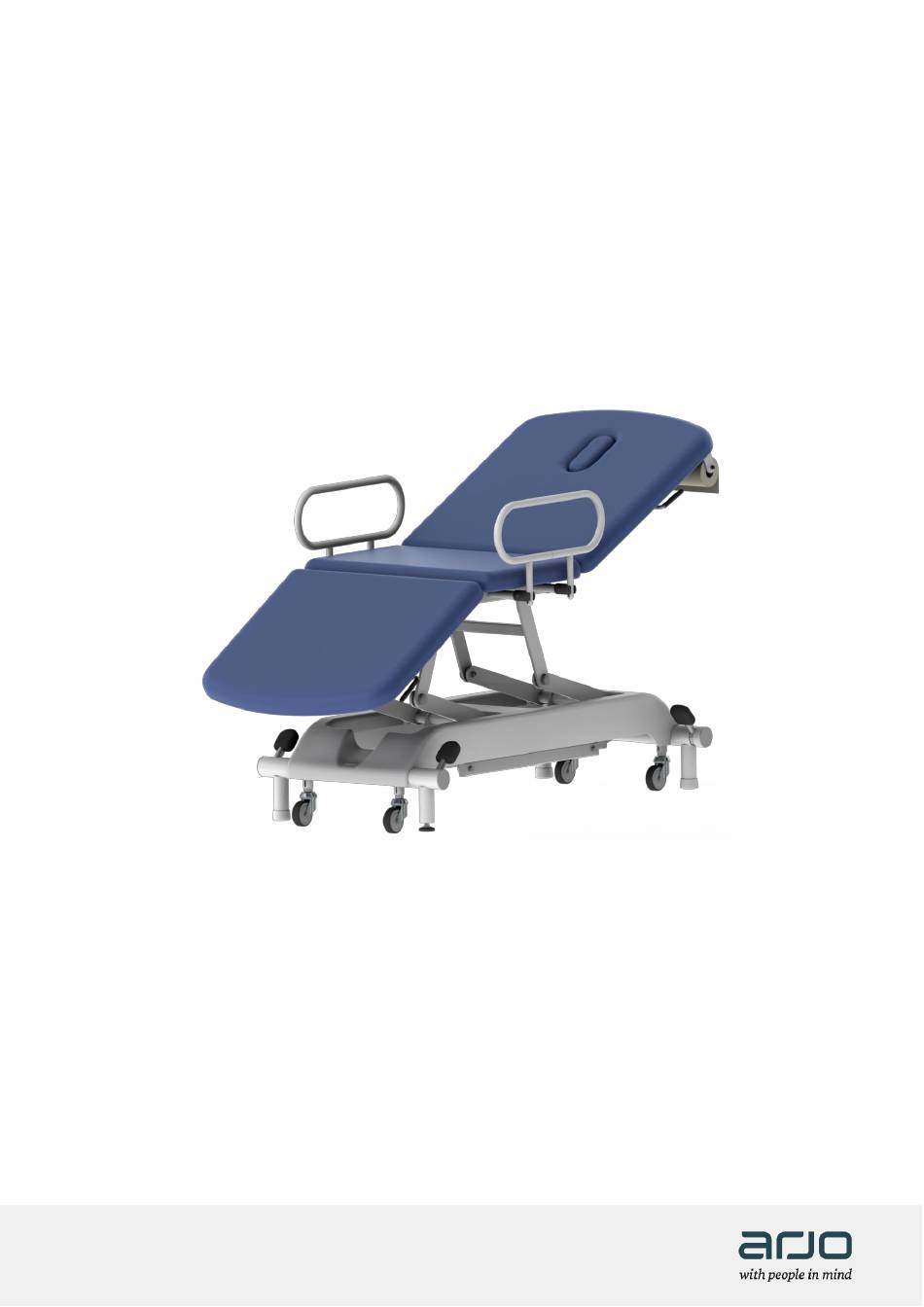

- Page 1 INSTRUCTIONS FOR USE Prioma Couch Range Semi Electric COU-SE-REV12-220820...
-
Page 2: Table Of Contents
CONTENTS WARNINGS & CAUTIONS 2 - 3 INTRODUCTION About This Manual Features Product Overview CLINICAL APPLICATION Intended Use INSTALLATION Electricity Supply Placement of Footswitch OPERATION Height Adjustment Foot Switch Backrest Adjustment Knee Positioning Adjustment Castor - Fixed Positioning or Mobile Mode Fixed Leg Adjustment Fold-down Arms (if fitted) Paper Roll Holder (if fitted) -
Page 3: Warnings & Cautions
It is recommended that the instructions for use be kept in an easily assessable place for quick reference. If required, Arjo product specialists can provide additional training. All warnings and cautions within this manual should be strictly adhered to. Failure to do so could result in harm to the patient, or operator. - Page 4 1. WARNINGS & CAUTIONS - Continued GENERAL SAFETY WARNINGS • This product is not designed to be used with a mattress. • Before operating the couch make sure that the patient is safely positioned to avoid entrapment. • Before transporting the couch make sure the power cable is disconnected from mains power and stored safely.
-
Page 5: Introduction
2. INTRODUCTION 2.1 About This Manual The INSTRUCTIONS FOR USE contains information for the installation, use and maintenance of the Prioma Semi Electric Couch range. Be sure to read this manual completely before assembly and operation. Not following the precautions in the instruction manual, could result in harm to patients or operators. -
Page 6: Product Overview

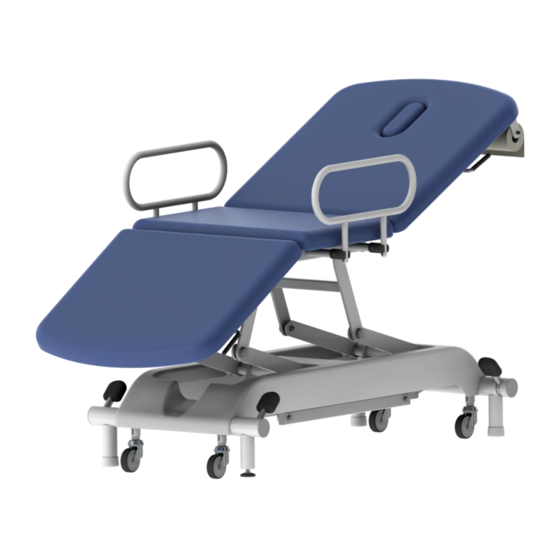

2. INTRODUCTION - Continued 2.3 Product Overview A. Backrest Breath Hole (if fitted) B. Upholstered Backrest C. Upholstered Seat D. Upholstered Footrest E. Adjustable Leg F. Wheels x 4 G. Fixed Leg x 3 H. Retracting wheels activation pedal Knee position Adjustment Lever Undercarriage Cover K. -
Page 7: Clinical Application
3. CLINICAL APPLICATION 3.1 Intended Area of Use Prioma couches are appropriate for use in private practices, nursing homes, physio centres, hospitals and clinics for the purpose of a wide range of examination and treatment procedures, diagnosis and patient care. 4. -
Page 8: Operation
5. OPERATION 5.1 Height Adjustment Footswitch WARNING It is recommended that the couch be positioned at its lowest height when unattended by caregivers to minimise the risk of patient injury from falls. Ensure that there is adequate clearance between the outer extremities of the couch and other building fixtures and equipment when operating couch functions. -
Page 9: Backrest Adjustment
5. OPERATION - Continued 5.2 Backrest Adjustment (2 & 3 Section Models Only) The backrest is adjusted by operating the gas spring release handle on either side of the backrest. To Operate: Place the palm of your hand on the backrest (A) and grip the lever (B) with your fingers. -
Page 10: Castor - Fixed Positioning Or Mobile Mode
5. OPERATION - Continued 5.4 Castor - Fixed Position or Mobile Mode Activation of the castors bringing them in contact with the floor and enabling mobility of the couch is achieved by means of foot operated rotary pedals. WARNING Operate Fixed and Mobile rotary pedals with your feet while wearing suitable shoes. Do not operate the pedals with your hands. -
Page 11: Fold-Down Arms (If Fitted)
5. OPERATION - Continued 5.6 Fold-down Arms (if fitted) The optional Fold-down Arms (if fitted) can be easily lowered when not required. Note: The fold down arms for the Prioma 2 & 3 section couch are shorter in length than the Prioma 1 section couch. -
Page 12: Paper Roll Holder (If Fitted)
5. OPERATION - Continued (if fitted) 5.7 Paper Roll Holder The Prioma couch can be equipped with a paper roll holder which (if fitted) is located at the head end of the couch. To Install or Change the Paper Roll: 1. -
Page 13: Preventative Maintenance
The following preventative maintenance procedures should be carried out every 12 months. Other than general maintenance activities all other service or repair work must be performed by qualified and trained persons who are approved by Arjo. WARNING The couch must be disconnected from the mains power supply before starting any maintenance activity. -
Page 14: Footswitch Checks
3 below. Preventative Maintenance Checks Arjo recommends that the full check and testing regime is conducted between each couch use, or worst case during annual preventative maintenance. This should take no more than one (1) minute to complete. -
Page 15: Troubleshooting
Control box and Footswitch Check the plugs are fully plugs disconnected inserted in the control box. Blown fuse Contact your local Arjo Service Department. Damaged footswitch cable Replace footswitch Control box overheated Allow control box to cool due to excessive use down. -
Page 16: Prioma - Semi Electric Couch Specifications
7. PRIOMA - SEMI ELECTRIC COUCH SPECIFICATIONS Dimensions Couch Model Number of Sections 1 section 2 section 3 section Length (mm) (+/-10mm) 1945 1945 1945 Width (mm) (+/-10mm) Width with Fold-down Arms (+/-10mm) Deck Height Range (mm) (+/-10mm) 460 to 935 460 to 935 460 to 935 Backrest Angle Adjustment (+/-5°... -
Page 17: Product Identification Label
8. PRODUCT IDENTIFICATION LABEL Description Symbol / Label Prioma Couch Product Identification Label Safe Working Load Refer to Instructions for Use Date of Manufacture Product Reference Number 11 Digit Code Representing Various Options & Build Types Product Serial Number Manufacturer Indicates the Product is a Medical Device –... -
Page 18: Product Lifetime & End Of Life Disposal
9. PRODUCT LIFETIME & END OF LIFE DISPOSAL 9.1 Product Lifetime The lifetime of this equipment is typically (10) years. “Lifetime” is defined as the period during which the product will maintain the specified performance and safety, provided it has been maintained and operated in conditions of normal use in accordance with the requirements provided in this instruction for use manual 9.2 End of Life Disposal •... -
Page 19: Transportation & Storage
70 kPa 106 kPa 11. WARRANTY AND SERVICE Arjo’s standard terms and conditions apply to all sales. A copy is available on request. These contain full details of warranty terms and do not limit the statutory rights of the consumer. - Page 20 At Arjo, we are committed to improving the everyday lives of people affected by reduced mobility and age-related health challenges. With products and solutions that ensure ergonomic patient handling, personal hygiene, disinfection, diagnostics, and the effective prevention of pressure ulcers and venous thromboembolism, we help professionals across care environments to continually raise the standard of safe and dignified care.
