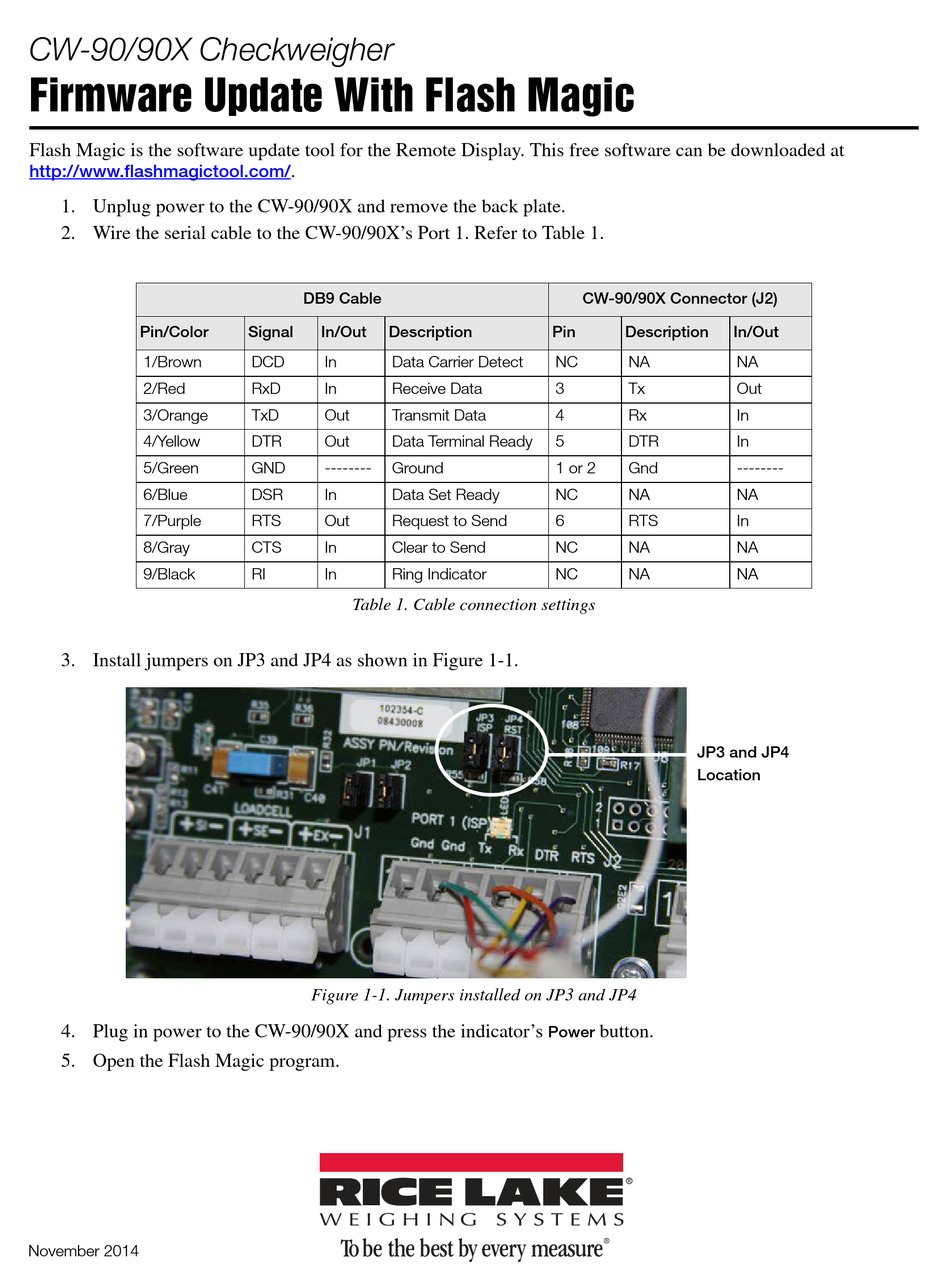

CW-90/90X Checkweigher
Firmware Update With Flash Magic
Flash Magic is the software update tool for the Remote Display. This free software can be downloaded at 
http://www.flashmagictool.com/
1. Unplug power to the CW-90/90X and remove the back plate.
2. Wire the serial cable to the CW-90/90X's Port 1. Refer to Table 1.
Pin/Color
1/Brown
2/Red
3/Orange
4/Yellow
5/Green
6/Blue
7/Purple
8/Gray
9/Black
3. Install jumpers on JP3 and JP4 as shown in Figure 1-1.
4. Plug in power to the CW-90/90X and press the indicator's
5. Open the Flash Magic program.
November 2014
.
DB9 Cable
Signal In/Out Description
DCD In Data Carrier Detect
RxD In Receive Data
TxD Out Transmit Data
DTR Out Data Terminal Ready
GND -------- Ground
DSR In Data Set Ready
RTS Out Request to Send
CTS In Clear to Send
RI In Ring Indicator
Table 1. Cable connection settings
Figure 1-1. Jumpers installed on JP3 and JP4
CW-90/90X Connector (J2)
Pin Description
NC NA
3 Tx
4 Rx
5 DTR
1 or 2 Gnd
NC NA
6 RTS
NC NA
NC NA
JP3 and JP4
Location
button.
Power
In/Out
NA
Out
In
In
--------
NA
In
NA
NA
