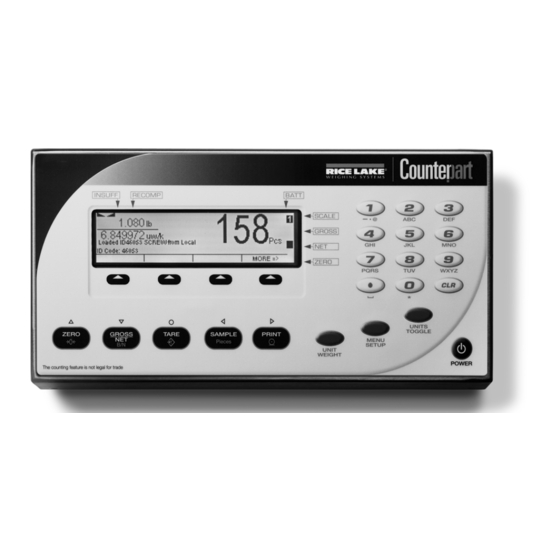

Rice Lake Counterpart CP-10 User Manual

Counting scale indicator
Hide thumbs
Table of Contents

Advertisement

Quick Links

®
Counterpart
Counting Scale Indicator
Version 2.3

User Manual

118677 Rev C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Counterpart CP-10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rice Lake Counterpart CP-10

Summary of Contents for Rice Lake Counterpart CP-10

  • Page 1: User Manual

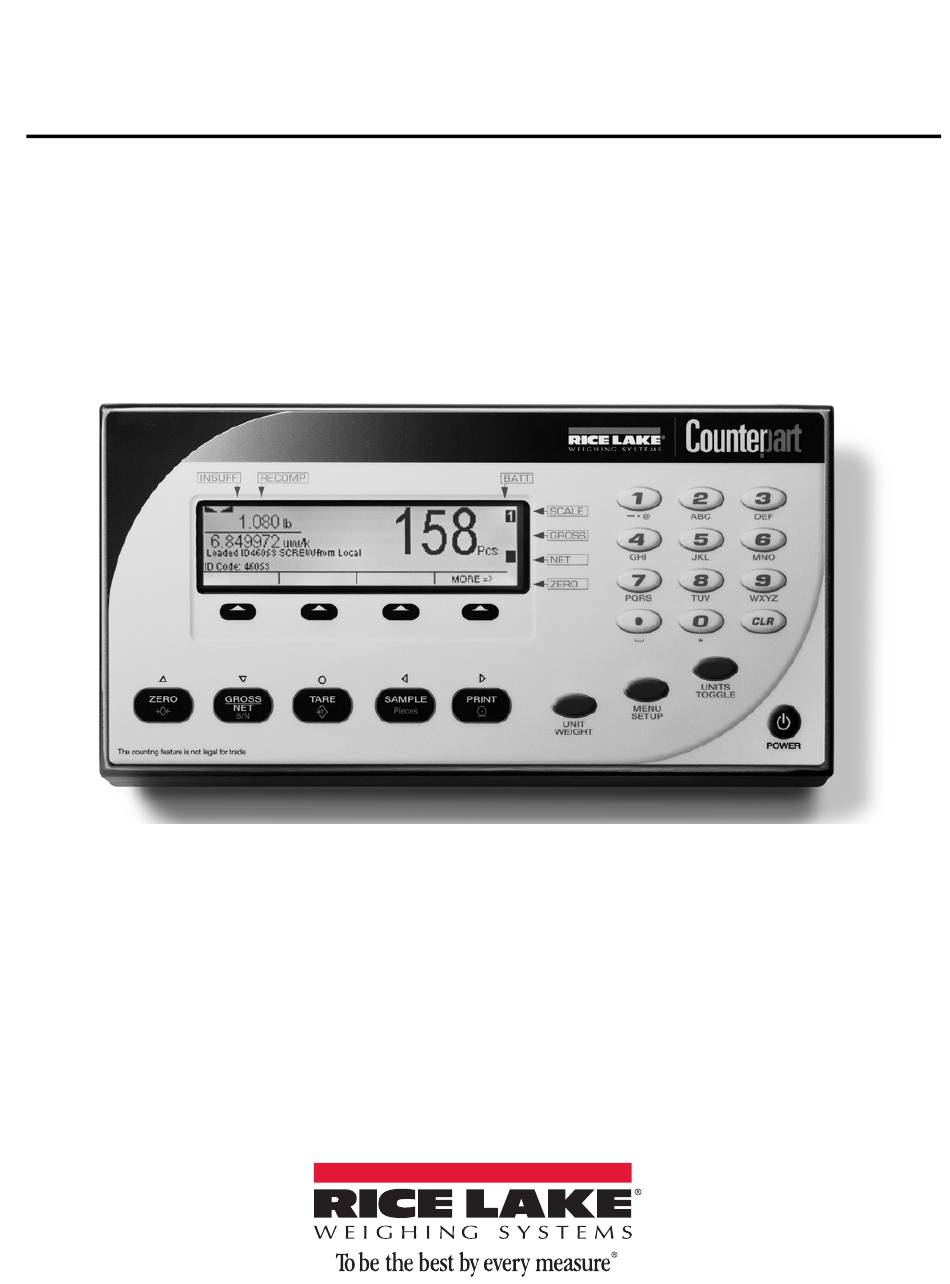

    ® Counterpart Counting Scale Indicator Version 2.3 User Manual 118677 Rev C...

  • Page 3: Table Of Contents

    Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department. © Rice Lake Weighing Systems. All rights reserved. Printed in the United States of America. Specifications subject to change without notice.
  • Page 4 Unique Commands..............78 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost.
  • Page 5 Print Formatting ..........................79 7.1 Print Formatting Commands............79 7.2 Customizing Print Formats .
  • Page 6 Counterpart Counting Scale Indicator...

  • Page 7: About This Manual

    This manual can be viewed and downloaded from the Rice Lake Weighing Systems web site at www.ricelake.com. Rice Lake Weighing Systems is an ISO 9001 registered company. For the latest downloads available, sign up for email updates on the Rice Lake Weighing Systems web site at http://www.ricelake.com/software.aspx.

  • Page 8: Introduction

    Introduction The Counterpart offers practical solutions for a full range of precision counting applications. A bright LCD display enables operators to easily view quantities, alphanumeric text messaging displays, part numbers to verify descriptions, and correct part called from memory. One hundred and fifty item memory and two RS-232 ports and Ethernet enable the Counterpart to provide real-time data collection and position it for the future growth of your business.

  • Page 9: Keypad Functions

    Keypad Functions Function Counterpart Turns the unit on/off. If the PC1 jumper is set to SW, the POWER button must be used to turn the unit on and off. If the PC jumper is set to ON, the unit will automatically power on when it’s plugged in and POWER the only way to turn it off is to unplug power.

  • Page 10: Tare Recall

    Figure 1-1. Numeric Keypad Additional Keypad Symbols Additional symbols can be accessed by pressing the following keys. Symbol < > " . (period) space Table 1-3. Additional Keypad Symbols Tare Recall When a stored tare is displayed, Net annunciators will be turned on. To display a stored tare, 1.

  • Page 11: Softkey Setup

    Softkey Setup Softkeys offer additional ways to access features associated with the Counterpart. To access the softkey setup parameter, go to Menu/Setup/Config/Feature/Softkeys Select information for each softkey and press key after each entry and then press softkey. To TARE Enter) SaveExit exit back out of the unit, press the key twice without saving changes.
  • Page 12 Set Date and Time 1. If the softkey is enabled, push the softkey. The current value is displayed. 2. To change, use the Up/Down arrows to highlight the value to change. 3. Press the key to save and exit. TARE Set Serial Scale (Scale 3) 1.

  • Page 13: Installation

    Immediately after unpacking the scale, visually inspect the Counterpart to ensure all components are included and undamaged. If any parts were damaged in shipment, notify Rice Lake Weighing Systems and the shipper immediately. Installation...

  • Page 14: Scale Base Assembly (If Purchasing The Scale Base Separate From Indicator)

    Scale Base Assembly (if purchasing the scale base separate from indicator) Do not turn the scale upside down. Always work with the scale on its side. Damage to the load cell can Important occur if the scale is turned upside down. Set up the scale on a stable, level surface.

  • Page 15: Leveling

    2.2.3 Leveling Select a location for the Counterpart that is reasonably level and free of vibrations and air currents. Adjust the four corner feet on the scale base and refer to the bubble level on the inside frame. The base should not rock and the feet should have solid contact with the surface.

  • Page 16: Making Power Connections

    5. Push the plastic bushing all the way into the enclosure to make a tight seal in the hole. Remove four screws (only one shown). Push bushing all the way to enclosure to seal. Figure 2-5. Use Plastic Bushings Bushings are not a “cord grip.” Bushings allow for free movement of cable while protecting them from the enclosure sides.

  • Page 17: Dual Channel Units (S-Xd Base)

    2.6.1 Dual Channel Units (S-XD Base) For units that have dual channels, connect cable from the 14 pin connector to J1 and J2. If not using a dual base, remove the J2 connector as shown in Figure 2-8. Trim back the wires and tape. Shown connectors shipped from the factory.

  • Page 18: Cable Grounding

    Cable Grounding Except for the power cord, all cables should be grounded against the scale enclosure. Do the following to ground shielded cables. • Use the lockwashers, clamps, and kep nuts provided in the parts kit to install grounding clamps on the enclosure studs.

  • Page 19: Digital I/O

    2.8.2 Digital I/O The Digital I/O can be configured as either digital inputs or digital outputs as determined by the Digital I/O menu (see Section 3.7.3 on page 42). The inputs are active (on) with low voltage (0 VDC) and can be driven by TTL or 5V logic without additional hardware.

  • Page 20: Cpu Board Battery Replacement

    2.12 Field Installation of Battery An optional DC battery pack (PN124692) for Counterpart is available and can be purchased from Rice Lake Weighing Systems to ship with the scale or retrofit in the field. The rechargeable 12V battery pack allows for more than 24 hours of continuous use without an AC power supply.

  • Page 21: Installing Option Cards

    7. Run cable over to power plug J12 on the Counterpart CPU board. Figure 2-13. Connect Power Plug onto J12 on CPU Board 8. Unplug existing power off the CPU board and plug in battery plug J1 on battery CPU. 9.

  • Page 22: Usb Option Card Installation

    When installation is complete, reassemble the enclosure as described in Section 2.9 on page 13 +3.3v Port 3 LED Power Supply Display Backlight JP3 JP4 JP1 JP2 JP5 JP6 R S - 2 3 2 E t h e r n e t Connectors Connector Figure 2-14.

  • Page 23: Bracket Assembly Connecting Indicator To Scale Base

    4. Press down firmly to seat the option card in the CPU board connector. D1 LED D6 LED D5 LED Figure 2-15. Installing the USB Option Card 5. Several signal LEDs are located on the USB option board as shown in Figure 2-15. •...
  • Page 24 1. Stand scale base on its side to attach the bracket to the scale using the screws provided in the bracket kit. 2. Ensure that the cable underneath the scale base is threaded through the opening between the scale and the bracket, otherwise it will not fit.(shown in Figures 2-18 and 2-19).

  • Page 25: Indicator Replacement Parts And Assembly Drawings

    2.15 Indicator Replacement Parts and Assembly Drawings Ref Number Part Number Description (Quantity) 118434 Overlay, membrane switch panel (1) 118435 Counterpart cover enclosure (1) 120756 Seal strip, nylon brush w/ holes (1) 119275 LCD display module (1) 120484 CPU mounting bracket (1) 14621 Kep nut, 6-32NC hex (6) 120741...
  • Page 26 Counterpart Figure 2-22. Assembly and Components Counterpart Counting Scale Indicator...
  • Page 27 Counterpart Figure 2-23. Dimensions Figure 2-24. Counterpart Rear and Side Dimensions Installation...

  • Page 28: Configuration

    Configuration The Counterpart scale can be configured using a series of menus accessed through the scale front panel when the scale is in setup mode. Figure 3-1 and Table 3-1 on page 22 summarizes the functions of each of the top level menus.

  • Page 29: Revolution Configuration

    To exit Configuration and return to weighing, press the MENU key or press the SAVEEXIT softkey. Revolution Configuration The Revolution configuration utility provides the preferred method for configuring the Counterpart indicator. Revolution runs on a personal computer to set configuration parameters for the indicator. When Revolution configuration is complete, configuration data is downloaded to the indicator.

  • Page 30: Id Menu

    ID Menu The ID menu displays parameters for registers from 1 to 150. Sub-parameters are shown below. AUDIT CALIBR SETUP TEST DISPLAY SETPTS REG 1 REG 2-150 SAME AS REG 1 CODE DESC PART NUM QUANTITY VALUE VALUE VALUE VALUE UNIT WT TARE UNITS...

  • Page 31: Audit Menu

    Audit Menu The audit menu accesses audit trail support. It provides tracking information for configuration and calibration events. To prevent potential misuse, all configuration and calibration changes are counted as change events. Audit information can be printed by pressing the PRINT key while displaying the audit trail items beneath the AUDIT menu.

  • Page 32: Calibration Menu

    Calibration Menu See Section 4.0 on page 55 for calibration procedures. The Calibration menu can be protected by assigning a password in the Feature menu. Counterpart requires the WZERO and WSPAN points to be calibrated. The linearity points are optional, but must NOT duplicate zero or span.

  • Page 33: Setup Menu

    Setup Menu The setup menu allows: • Configuration of scale, features, serial port, Ethernet, print format, and digital inputs and outputs settings • Viewing of the software and regulatory versions and reverting to default settings AUDIT CALIBR SETUP TEST DISPLAY SETPTS CONFIG SCALES...

  • Page 34: Scale Menu

    3.7.1 Scale Menu Calibration can be performed in two places within the menu: the CALIBR menu shown in Figure 3-6 on page 26 is an in-depth scale setup and calibration. A “quick access” calibration is shown in Figure 4-1 on page 55. SCALE Scale 3 sub-menu appears only when serial port 1 is set to SCALE or IND SCALE.
  • Page 35 Parameter Choices Description Scales 1 and 2 Allows configuration and calibration of each scale. Scale 3 Allows configuration and calibration of scale 3. Scales sub-menu GRADS 10000 Specifies the number of full scale graduations. 1–100000 The value entered must be in the range 1–100000 and should be consistent with legal requirements and environmental limits on system resolution.
  • Page 36 Parameter Choices Description DFTHRH NONE Digital filter cutout threshold. Specifies the filter threshold, in display divisions. When a specified number of consecutive scale readings (DFSENS parameter) fall outside of this threshold, digital filtering is suspended. If NONE is selected, the filter is always enabled. 100D 200D 250D...
  • Page 37 Scale Calibration Menu Calibration can be performed in two places within the menu: the CALIBR menu shown in Figure 3-6 on page 26 is an in-depth scale setup and calibration. A “quick access” calibration is shown in Figure 4-1 on page 55. CALIBR WZERO WVAL...
  • Page 38 Scale Format Menu FORMAT PRIMRY UNITS DECPNT DSPDIV 8888800 8888880 8888888 8.888888 88.88888 888.8888 8888.888 88888.88 888888.8 Figure 3-10. Scale Format Menu Layout Scale Format Menu Parameters Parameter Choices Description PRIMRY UNITS Allows you to set the primary units, decimal point format, and display divisions. DECPNT DSPDIV Allows you to set the secondary units.
  • Page 39 Scale Format Menu Parameters Parameter Choices Description DECPNT 8888800 Allows you to place the decimal point position. Use the ID ( ) and TARGET ( ) keys to 8888880 place the decimal point where desired. 8888888 8.888888 88.88888 888.8888 8888.888 88888.88 888888.8 DSPDIV...

  • Page 40: Feature Menu

    3.7.2 Feature Menu AUDIT CALIBR SETUP TEST DISPLAY SETPTS CONFIG SCALES FEATURE SERIAL ETHERNET PFORMT SETPTS DIGIO VERS COUNT TARE RND REGION SINGLE ID CONSC# RESVAL EXACT CURVAL ROUND See Figure See Figure 3-12 3-13 PASSWD SOFTKEYS KEYLOCK STNDBY RECALL See Figure MENU CALIBR...
  • Page 41 Parameter Choices Description COUNT NEGCOUNT Selects the counting mode (enables/disables negative checkweighing; turns data parameters on/ SAMPLEQTY off. See Figure 3-12. INSFSMPL LOTUPDT SCLCHG NEWITEM XFRSampl DISPACC UNITWTUPDATE UTWTBASE DSP Mode RemovESP TARE RND Exact Round When transferring tare to the second scale, tare value remains the exact weight or rounds to scale resolution.
  • Page 42 Parameter Choices Description RECALL ON allows the Tare, Zero, and Units values to be maintained across a power cycle. Over/Under/ Target/ID values are also maintained. OFF clears the values on a power cycle. Zero is reset to calibrated zero and Units are reset to Primary.
  • Page 43 LOTUPDT OFF — Changing or deleting the lot value in operation mode does not update the stored copy of the currently loaded ID record. ON — Changing or deleting the lot value in operation mode saves the changes into the stored copy of the currently loaded ID record.
  • Page 44 Feature Region Menu REGION REGULAT REGWORD DECFMT TIME DATE NTEP GROSS DFORMT D SEP CANADA BRUTTO COMMA MMDDY4 SLASH DDMMY4 DASH INDUST Y4MMDD SEMI T SEP TFORMT NONE Y4DDMM Figure 3-15 12 HOUR COLON MMDDY2 OIML 24 HOUR COMMA DDMMY2 Y2MMDD Y2DDMM Figure 3-13.
  • Page 45 Date sub-menu DFORMT MMDDY4 Sets the date format. Y4 will use a four-digit year value, such as 2011, while Y2 will use a two-digit DDMMY4 value, such as 11. Y4MMDD Y4DDMM MMDDY2 DDMMY2 Y2MMDD Y2DDMM D SEP SLASH Sets the date separator as a slash, dash, or semicolon. DASH SEMI Table 3-12.
  • Page 46 Parameters Descriptions CODE Press CODE, enter ID number, press ENTER to recall stored item code. If item code does not exist, will prompt “Item not found, Save as New ID?” Pressing YES will store in first available register. Alpha ON/OFF softkey appears to turn off Alpha to process numbers quicker when not using Alpha.
  • Page 47 Parameter Choices Description SNPSHT DISPLY Display or scale weight source. SCALE ZTARE Remove tare on ZERO. KTARE Always allow keyed tare. MTARE REPLAC Multiple tare action. REMOVE NOTHIN NTARE Allow negative or zero tare. CTARE Allow CLEAR key to clear tare/accumulator. PRTMOT Allow print while in motion.

  • Page 48: Serial Menu

    3.7.3 Serial Menu SERIAL PORT1 SCANNER SCALE IND SCALE BAUD BITS STOP BITS TERMIN ECHO RESPONSE CR/LF 9600 8NONE 19200 7EVEN 28800 7ODD 38400 SFMT PRNMSFG STREAM EOLDLY SOURCE 57600 115200 SCALE 1 1200 SCALE 2 INDUST 2400 SCALE 3 4800 <2><C><CR><><LF>...
  • Page 49 Parameter Choices Description OPTCARD NONE Option card parameters. Indicates which connection can be selected when using a wireless FIBER option card and WeighVault. ETHERNET When setting up the USB option and opening Revolution, you may be WI-PORT asked to load a driver if Windows PC has never used a USB driver before. RESERVED RS232-432 KEYBOARD...

  • Page 50: Ethernet Menu

    3.7.4 Ethernet Menu ETHERNET DHCP IPADDRESS NETMASK DFLGTWY DNSPRI DNSSEC LCLHSTNM COUNTERPART PORT ECHO VAULT REMOTEPT REMOTEIP ONBOARD EXTERNAL Figure 3-17. Ethernet Menu Layout Parameter Choices Description DHCP Dynamic Host Configuration Protocol ON — obtains IP address, primary and secondary DNS IP addresses, netmask, and default gateway IP address from a DHCP server.

  • Page 51: Print Format Menu

    3.7.5 Print Format Menu PFORMT PALFMT CFMT GFMT NFMT PORT SAME AS GFMT PORT 1 <x><x> ACCFMT TOTALFMT SPFMT HDRFMT1 HDRFMT2 SAME AS GFMT <x><x> <x><x> <x><x> Figure 3-18. Print Format Menu Parameter Choices Description PFORMT Sets the print format for gross weight mode, net weight mode, count, pallet, accumulate, total, setpoint, header 1 and header 2.

  • Page 52: Scale Setpoints Menu

    3.7.6 Scale Setpoints Menu SETPTS SP CFG BATCHING AUTO MANUAL SETPT 1 SETPT 1-6 Same as SETPT 1 GROSS PIECECNT %REL APPLIES TO GROSS, NET, PIECECNT, & %REL VALUE See Figure 3-20 number DELAY WAITSS COUNTER INMOTION VALUE ACCESS DIGOUT SOURCE ACCESS DIGOUT...
  • Page 53 Gross, Net, Piecent, %REL Sub-menu GROSS PIECECNT %REL APPLIES TO GROSS, NET, PIECECNT, & %REL VALUE SOURCE TRIP BANDVAL HYSTER LIST OF HIGHER number number number SCALES LOWER If TRIP= If TRIP= INBAND or HIGHER or INBAND OUTBAND LOWER OUTBAND PREACT PREVAL PREADJ...
  • Page 54 Parameters Choices Description Setpoint 1-6 submenu Value = number GROSS Value Display and edit the gross value Source PIECECNT Trip %REL Bandval Hyster Preact Preval Preadj Prestab Pcount Relnum Batch Pshaccm Pshprint Pshtare Access Digout Sense DELAY Value Source Pshaccm Pshprint Pshtare Access...
  • Page 55 Parameters Choices Description PREACT Allows the digital output associated with a setpoint to shut off before the setpoint is satisfied to allow for material in suspension. Learn The ON value adjusts the setpoint trip value up or down (depending on the TRIP parameter setting) from the setpoint value using a fixed value specified on the PREVAL parameter.

  • Page 56: Dig I/O Menu

    3.7.7 DIG I/O Menu DIGIO DIO 1 DIO 2 DIO 3 DIO 4 Same as DIO 1 PRINT ZERO TARE UNITS CLEAR DSPACC NT/GRS CLRCN SAMPLE SOFTKEY 1-4 OUTPUT Figure 3-21. Digital I/O Menu Layout Parameter Choices Description DIG IO DIO 1 Assign digital input/output functions.

  • Page 57: Version Menu

    3.7.8 Version Menu VERS SOFTWR V 2.0 LR, V.1.00 Figure 3-22. Version Menu Layout Parameter Choices Description VERS SOFTWR Software version. 2.xx Regulatory version. LR, V 1.XX Table 3-18. Version Menu Parameters Test Menu AUDIT CALIBR SETUP TEST DISPLAY SETPTS DIG I/O COMM KEYPAD...

  • Page 58: Display Menu

    Parameter Choices Description DIG I/O LOOP Tests your digital I/O ports. If they are functioning, PASS is displayed. If they are not functioning, DIO 1 FAIL is displayed. DIO 2 DIO 3 Both inputs and outputs are active low. They go to a ground state when active. DIO 4 The I/O ports become activated when the test is performed.

  • Page 59: Setpoints - Weigh Mode Parameter Menu

    3.10 Setpoints – Weigh Mode Parameter Menu Set up of setpoints is allowed while in the weigh mode. While setting up setpoints, the Access parameter needs to be set to either On or Off. • Setting it to allows a setpoint to be viewed and edited if setpoint type is Gross, Net, Piececnt, %Rel, Delay, or Counter.
  • Page 60 Parameters Choices Description Setpoint 1-6 sub-menu GROSS Value Display and edit the gross value Source PIECECNT Trip %REL Bandval Hyster Preact Preval Preadj Prestab Pcount Relnum Batch Pshaccm Pshprint Pshtare Access Digout Sense DELAY Value Source Pshaccm Pshprint Pshtare Access Digout Sense COUNTER...

  • Page 61: Calibration

    Calibration ® The Counterpart can be calibrated using the front panel, EDP commands, or Revolution Calibration can be performed in two places within the menu: the CALIBR menu shown in Figure 4-1 and the SCALE sub-menu shown in Figure 3-8 on page 28. The CALIBR menu shown in Figure 4-1 is a “quick access” calibration;...

  • Page 62: Five-Point Linearization

    If you do not want to calibrate span, press Menu to exit. 6. After the softkey is pressed, the indicator displays when complete. Press Calibrate CALIBRATING TARE and the softkey or proceed to (Enter) Save Exit WLIN To view the new AD count, navigate back to the WSPAN, and repeat Step 6; however, instead of pressing the Calibrate softkey while viewing the value, press Save/Exit to exit.

  • Page 63: Revolution Calibration

    5. Up to five linearization points can be calibrated between the zero and span calibration values. Use the following commands to set and calibrate a single linearization point: SC.WLIN.V1=nnnnn<CR> SC.WLIN.C1<CR> The SC.WLIN.V1#n command sets the test weight value (nnnnn) for linearization point 1. The SC.WLIN.C1#n command calibrates the point.

  • Page 64: More About Calibration

    More About Calibration The following provides additional information about compensating for environmental factors (Section 4.6.1) and also provides diagnostic information for determining expected zero and span coefficients. 4.6.1 Adjusting Final Calibration Calibration may be affected by environmental factors including wind, vibration, and angular loading. For example, if the scale is calibrated with 1000 lb, a strain test may determine that at 2000 lb the calibration is 3 lb high.

  • Page 65: Scale Operations

    Scale Operations The following contains detailed operator instructions for Counterpart, including instructions on how to enter tare weights, toggle between net and gross weight, enter unit weights, perform inventory accumulation and reduction, and toggle between scales. All operator instructions are conducted with the scale in the operation mode that is the weighing or normal mode.

  • Page 66: Toggling Between Gross And Net

    Toggling Between Gross and Net To toggle between net and gross weight, a tare value must be entered into the scale. See Section 5.2 to enter a tare value. After a tare value is entered into the scale, items placed on the scale will cause the annunciator to illuminate and allow toggling between net weight and gross weight.

  • Page 67: Unit Weight Operation By Sampling

    5.4.1 Unit Weight Operation by Sampling Unit weight operation by sampling is accomplished by placing a 10 piece sample on the scale and then pressing the key. The scale calculates a unit weight based on the weight of the sample. The following details the SAMPLE procedure with UNIT WEIGHT set at either on or off.

  • Page 68: Ids

    Counting Out of a Full Container — See Total Amount Remaining in the Container To carry out this operation you must know the tare weight ahead of time. 1. Place the full container on the scale. Press the key. TARE 2.

  • Page 69: Setting An Id Using The Normal Mode

    5.5.1 Setting an ID Using the Normal Mode 1. Press the to access this menu. MENU SETUP Press to ID and then press and you will be at REG1. 3. Navigate to the REG number you want to set (1-150) by using the keys.

  • Page 70: Clearing Id Codes

    5.5.4 Clearing ID Codes 1. Press the key. Menu Setup 2. Toggle through menu items to 3. Select to clear. Reg 1-150 4. Push the softkey. Clear ID 5. The display prompts . Press the softkey. Clear ID Values 6. Display shows ID Cleared 7.

  • Page 71: Weighvault

    8. To download the ID to Counterpart, connect Revolution, and select and either Download Communications Configuration or Download Section. 9. All register IDs are now entered and available through Revolution. By uploading IDs using Revolution and saving them to a file the IDs can be backed up for future use. WeighVault WeighVault is a PC program that allows Counterpart users to add, edit, and access IDs over a network connection.

  • Page 72: Using Weighvault

    On the Counterpart Use the following steps to set up WeighVault on the Counterpart side. 1. Enter menu settings and go to Ethernet. 2. DHCP should be set to Off. 3. Set the IP address 192.168.0.1 (this should be in the same range as the computer side, but the last digit is different.

  • Page 73: Totalization Counts

    Totalization Counts Counterpart has a totalization function that allows you to totalize the quantity of several weighings together. This is especially helpful if putting together parts kits. The ID code is functional with totalization, count or weight. For full operation of the totalization feature, configure the unit with the following softkeys: TOTAL+ TOTAL- Clear Total...

  • Page 74: Parts Reduction Counts

    Parts Reduction Counts Parts reduction can also be done by using the minus key while the scale is in the weighing mode and the memory annunciator is on. 1. Conduct a sampling process to determine the unit weight of the pieces, or key in a known weight or recall an ID.

  • Page 75: Batch Operations

    5.10 Batch Operations Softkeys can be configured to allow the operator control of batch operations from the Counterpart front panel (see Figure 5-4). Softkeys can be configured using serial commands, or the FEATURE menu. Figure 5-4. Counterpart Batch Operation Screenshot Parameter Description Setponit...
  • Page 76 ABORT/RUN/START SWITCH BLACK CPU BOARD DIGITAL I/O ..BLACK WHITE STOP/START MUSHROOM SWITCH Figure 5-6. Batching Switch Wiring Diagram Example To begin a batch process, turn the 3-way switch to START momentarily. If the STOP button is pushed during the batch process, the process halts and the button locks in the IN position.

  • Page 77: Connecting A Barcode Scanner

    QD2100 Barcode Scanner If you are using the Quickscan QD2100 barcode scanner sold by Rice Lake Weighing Systems, you can set up the scanner by connecting the scanner (PN121495) to the RS-232 port on the Counterpart CPU board. Plug connector with three wires into serial port 2 (J4) and plug with one wire into DIGIO (J3).

  • Page 78: Serial Commands

    Serial Commands The Counterpart can be controlled by a PC or remote keyboard connected to an indicator serial port. Control is provided by a set of serial commands that can simulate front panel key press functions, display and change setup parameters, and perform reporting functions.

  • Page 79: Id Commands

    Command Function KENTER Press the ENTER key. KLOCK Lock specified front panel key. For example, to lock the ZERO key, enter KLOCK = KZERO. KUNLOCK Unlock specified front panel key. For example, to unlock the PRINT key, enter KUNLOCK = KPRINT. KDATE Display date (pseudo key).

  • Page 80: Clear And Reset Commands

    6.1.4 Clear and Reset Commands The following commands can be used to clear and reset the Counterpart: : Reset system. Resets the indicator without resetting the configuration. RESETCONFIGURATION : Restores all configuration parameters to their default values (menu mode only). The function can also be initiated by pressing navigating to the parameter under the DEFALT...
  • Page 81 Command Description Values SC.PRI.DSPDIV#n Primary units display divisions 1D, 2D, 5D SC.PRI.UNITS#n Primary units lb, kg, g, oz, OFF SC.ACCUM#n Accumulator enable ON, OFF SC.WZERO#n Zero calibration SC.WVAL#n Test weight value test_weight_value SC.WSPAN#n Span calibration SC.WLIN.F1– Actual raw count value for linearization points 1–5 0–16777215 SC.WLIN.F5#n SC.WLIN.V1...
  • Page 82 Command Description Values STR.POS#p Custom stream identifiers None, Space, + STR.NEG#p None, Space, - STR.PRI#p 8 alphanumeric characters STR.SEC#p STR.TER#p STR.GROSS#p STR.NET#p STR.TARE#p STR.MOTION#p 2 alphanumeric characters STR.RANGE#p STR.OK#p STR.INVALID#p STR.ZERO#p OPTCARD Option cards NONE, FIBER, ETHERNET, WI-PORT, RESERVED, USB, RS232-422, KEYBOARD Table 6-5.
  • Page 83 Command Description Values GFMT.FMT Gross print format string See Section 7.0 on page 79 for information about demand print format strings. NFMT.FMT Net print format string ACC.FMT Accumulator print format string CFMT.FMT Count print format string TOTAL.FMT Total print format string SPFMT.FMT Setpoint print format string HDRFMT1...

  • Page 84: Normal Mode Commands

    Command Description Values ETH.MACADDRESS Mac Address 00-00-00-00-00-00 ETH.NETMASK Netmask 0.0.0.0 ETH.PORT Port 10001 ETH.REMOTESERVERIP Remote server IP 0.0.0.0 ETH.REMOTESERVERPORT Remote server port 5466 ETH.WEIGHVAULT WeighVault OFF, ONBOARD, EXTERNAL ETH.ECHO Echo EDP commands ON, OFF Table 6-11. Ethernet Serial Commands 6.1.6 Normal Mode Commands The normal mode print commands transmit data to the serial port on demand in either setup or normal mode.

  • Page 85: Print Formatting

    Print Formatting The Counterpart provides nine print formats, GFMT, NFMT, TOTALFMT, PALFMT, CFMT, ACCFMT, SPFMT, HDRFMT1 . These determine the format of the printed output when the key is pressed or when a HDRFMT2 PRINT KPRINT EDP command is received. The s must be called from another format.
  • Page 86 Command Description Supported Ticket Formats <G> Gross weight, current scale GFMT, NFMT, TOTALFMT, PALFMT, CFMT, ACCFMT <G#n> Gross weight, scale n HDRFMT1, HDRFMT2 <N> Net weight current scale <N#n> Net weight, scale n <T> Tare weight in displayed units. Add four before bracket to print header <T#n>...
  • Page 87 Command Description Supported Ticket Formats <WL> Suppress units. Toggle weight data format (formatted/unformatted)** GFMT, NFMT, TOTALFMT, PALFMT, CFMT, ACCFMT <SU> or <WA> Supress units and lead spaces HDRFMT1, HDRFMT2 <U> Outputs K (kg) or L (lb) or O (oz). <SCV> Setpoint captured weight value SPFMT <SN>...
  • Page 88 Format Default Format String Used When NFMT Normal mode, tare in N<NL>A30,75,0,4,1,1,N,"Gross: system <G>"<NL>B30,115,0,3,2,4,101,B,"<G>"<NL>A30,300,0,4,1,1,N, "Tare: <T>"<NL>B30,340,0,3,2,4,101,B,"<T>"<NL>A30,525,0,4,1,1,N, "Net: <N>"<NL>B30,565,0,3,2,4,101,B,"<N>"<NL>A30,806,0,3,1,1,N,"<TD>"<NL> P1<NL> PALFMT When Print Pallet N<NL>A416,25,1,4,1,1,N,"ID CODE: softkey is pressed <IDC>"<NL>B378,25,1,3,2,4,51,N,"3<IDC>"<NL>A296,28,1,4,1,1,N,"Total QTY: <C>"<NL>B264,22,1,3,2,4,51,N,"<C>"<NL> A179,25,1,4,1,1,N,"Part Name: <IDD>"<NL>A126,25,1,4,1,1,N,"Part Number: <IDP>"<NL>A73,25,1,4,1,1,N,"Lot Number: <IDLT>"<NL>P1<NL> CFMT Count mode N<NL>B371,20,1,3,2,4,51,N,"3<IDC>"<NL>A410,20,1,4,1,1,N,"ID.

  • Page 89: Customizing Print Formats

    Customizing Print Formats The following sections describe procedures for customizing the formats using the EDP GFMT NFMT CFMT ® port, the front panel ( menu), and the Revolution configuration utility. PFORMT 7.2.1 Using the EDP Port With a personal computer, terminal, you can use the EDP command set to customize the print format strings. To view the current setting of a format string, type the name of the string ( ) and press GFMT.FMT...

  • Page 90: Using Revolution

    ® 7.2.3 Using Revolution The Revolution configuration utility provides a print formatting grid with a tool bar. The grid allows you to construct the print format without the formatting commands (<NL> and <SP>) required by the front panel or EDP command methods.
  • Page 91 Count Format Figure 7-3. Count Format Label Example Pallet Label Format Figure 7-4. Pallet Format Label Example Gross Label Format Figure 7-5. Gross Label Format Print Formatting...
  • Page 92 Setpoint Format Figure 7-6. Setpoint Label Format Total Label Format Figure 7-7. Total Format Label Example Counterpart Counting Scale Indicator...
  • Page 93 Gross/Tare/Net Label Format Figure 7-8. Gross/Tare/Net Label Format Accum Label Format Figure 7-9. Accum Label Format Print Formatting...

  • Page 94: Wlan Installation Instructions

    WLAN Installation Instructions Before installing this option, contact your IT administrator to obtain network communication protocol codes and have a RS-232 communications cable or regular comm port cable available to run between your PC and the indicator while installing and setting up the wireless network. The optional Lantronix WiPort (WLAN —...

  • Page 95: Appendix

    Only shows up in Config mode. WVAL > 100,000 EEPERR EEPROM error Call Rice Lake Weighing Systems (RLWS) for service VERSION UPDATED Core has been updated or memory Press the ENTER key. If the message persists, call has been corrupted.

  • Page 96: Using The Xe And Xeh Edp Commands

    Using the XE and XEH EDP Commands The XE and XEH EDP commands can be used to remotely query the Counterpart for the error conditions shown on the front panel. The XE command returns a 5-digit number in the format: xxxxx where contains a decimal representation of any existing error conditions as described in Table 9-2.

  • Page 97: Continuous Output (Stream) Format

    Continuous Output (Stream) Format Figure 9-1 shows the default continuous output format sent to a Counterpart port when that port’s STREAM parameter (SERIAL menu) is set to LFT. <STX> <C> <CR> <LF> ASCII 02 <CR> <LF> or <CR> (decimal) ASCII 13, 10 (decimal) Count Data: 6 Characters...
  • Page 98 Format Identifier Defined By Description Configuration =1 if even parity Dynamic =1 if MODE=NET Dynamic =1 if COZ Dynamic =1 if standstill Dynamic =1 if gross negative Dynamic =1 if out of range Dynamic =1 if secondary/tertiary Dynamic =1 if tare in system Dynamic =1 if tare is keyed Dynamic...
  • Page 99 Format Identifier Defined By Description Configuration =000 if secondary DECPNT = 8888800 =001 if secondary DECPNT = 8888880 =010 if secondary DECPNT = 8888888 =011 if secondary DECPNT = 888888.8 =100 if secondary DECPNT = 88888.88 =101 if secondary DECPNT = 8888.888 =110 if secondary DECPNT = 888.8888 =111 if secondary DECPNT = 88.88888 Configuration...

  • Page 100: Digital Filtering

    Digital Filtering The Counterpart uses averaged digital filtering to reduce the effect of vibration on weight readings. Adjustable threshold and sensitivity functions allow quick settling by suspending filter averaging, allowing the weight reading to jump to the new value. Figure 9-2 shows the digital filter parameters on the CONFIG menu. DFLTR1 DFLTR2 DFLTR3...

  • Page 101: Setting The Digital Filter Parameters

    9.6.3 Setting the Digital Filter Parameters Fine-tuning the digital filter parameters greatly improves indicator performance in heavy-vibration environments. Use the following procedure to determine vibration effects on the scale and optimize the digital filtering configuration. 1. In menu mode, set all three digital filters (DFLTR1, DFLTRL2, DFLTR3) to 1. Set DFTHRH to NONE. Return indicator to normal mode.

  • Page 102: Usb Keyboard Interface

    USB Keyboard Interface The USB interface option board provides a type-A connection for a USB keyboard interface. To use the keyboard interface, set the serial input function for Port 3 (found under the SERIAL menu — see Figure 3-22 on page 51) to KEYBOARD.

  • Page 103: Regulatory Mode Functions

    Where: <STX> STX character <P> Polarity <W7> Seven characters of net data with decimal pt <U> Units <M> Mode <S> Status <CR> Carriage return Note that industrial serial scales (IND SC) do not require the <M>, <U> and <S> identifiers. However, the units and number of decimal places must be specified.

  • Page 104: Regulatory Mode And Legal-For-Trade (Lft)

    REGULAT / INDUST Parameter REGULAT Mode Parameter Name Text Prompt INDUST NTEP CANADA OIML NONE CTARE Allow CLEAR key to clear tare/ accumulator PRTMOT Allow print while in motion PRTPT Add PT to keyed tare print OVRBASE Zero base for overload calculation CALIB ZERO CALIB ZERO CALIB ZERO SCALE ZERO CALIB ZERO...

  • Page 105: Legal For Trade And Totalization Mode

    9.10.2 Legal for Trade and Totalization Mode When in Legal for Trade mode (REGULAT = NTEP, OIML, or CANADA) and the unit is in Totalization mode: • If the weight is displayed in the main area (either as a result of the DSPMODE parameter being set for WEIGHT or the Swap Display softkey was pressed) then the piece count and piece count total are not displayed.
  • Page 106 Firmware Figure 9-4. Revolution Screen 7. The Rice Lake Updater screen appears. Specify the COM port the Counterpart is connected to, and click the ellipses (...) to browse to and select the desired .hex file. Figure 9-5. Rice Lake Updater Screen 8.

  • Page 107: Specifications

    9.12 Specifications Part # Description Weighing Resolution Platter Dimensions Single Channel 118788 CP Indicator Console only 120736 CP-5 5 lb x 0.0005 lb (2 kg x 0.0002 kg) 9 in x 12 in 120737 CP-10 10 lb x 0.001 lb (5 kg x 0.0005 kg) 11 in x 16 in 120738 CP-25...

  • Page 108: Specifications

    9.13 Specifications POWER APPROVALS: Power source: Pending Input: 100-240VAC, 47-63 Hz, 5 watts, US WARRANTY: power cord Two-year limited warranty Output: 9VDC or 12VDC 1.25 max EXCITATION VOLTAGE: CERTIFICATIONS AND APPROVALS 5VDC Counterpart Indicator ANALOG SIGNAL INPUT RANGE: NTEP (Pending) 0-4.5 mV/V ANALOG SPECIFICATIONS: ...
  • Page 109 Counterpart Limited Warranty Rice Lake Weighing Systems (RLWS) warrants that all RLWS equipment and systems properly installed by a Distributor or Original Equipment Manufacturer (OEM) will operate per written specifications as confirmed by the Distributor/OEM and accepted by RLWS. All systems and components are warranted against defects in materials and workmanship for two years.

  • Page 110: For More Information

    Fax Number 715-234-6967 Email • U.S. sales and product information at prodinfo@ricelake.com • International (non-U.S.) sales and product information at intlsales@ricelake.com Mailing Address Rice Lake Weighing Systems 230 West Coleman Street Rice Lake, WI 54868 USA Counterpart Counting Scale Indicator...
  • Page 112 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0) 88 2349171 www.ricelake.com www.ricelake.mx www.ricelake.eu www.ricelake.co.in m.ricelake.com © Rice Lake Weighing Systems 07/2014 PN 118677 Rev C...

This manual is also suitable for:
