CLS420
Forklift Scale
Bluetooth Option Installation Instructions
Option PN 130930
Electric Shock Hazard
Warning
Before opening the unit, ensure the power cord is disconnected from the power outlet.
Bluetooth Option kit 130930 is intended to replace the Lantronix Matchport WLAN module on carrier board
109266. This combination provides for a simple RS-232 to Bluetooth converter, giving the user the ability to
send and receive data from the scale indicator via a Bluetooth connection.
The Bluetooth Option Kit contains the following:
• Bluetooth Module (130929)
• Antenna (98357)
• 6" Antenna Cable (112228)
• 8" Zip Tie (58579)
Installing the Module to the Board Assembly (PN 109266)
1. Remove power from the indicator and remove the enclosure cover to gain access to the board assembly.
2. Loosen the cord grip securing the antenna in the enclosure. If the antenna cable is connected to the
enclosure, remove the nut securing it and disconnect the antenna cable from the enclosure.
Remove the existing WLAN module by cutting the zip tie securing the module to the board
3.
assembly. Carefully remove the module and antenna cable assembly, and the used zip tie. See
Figure 1.
May 2012

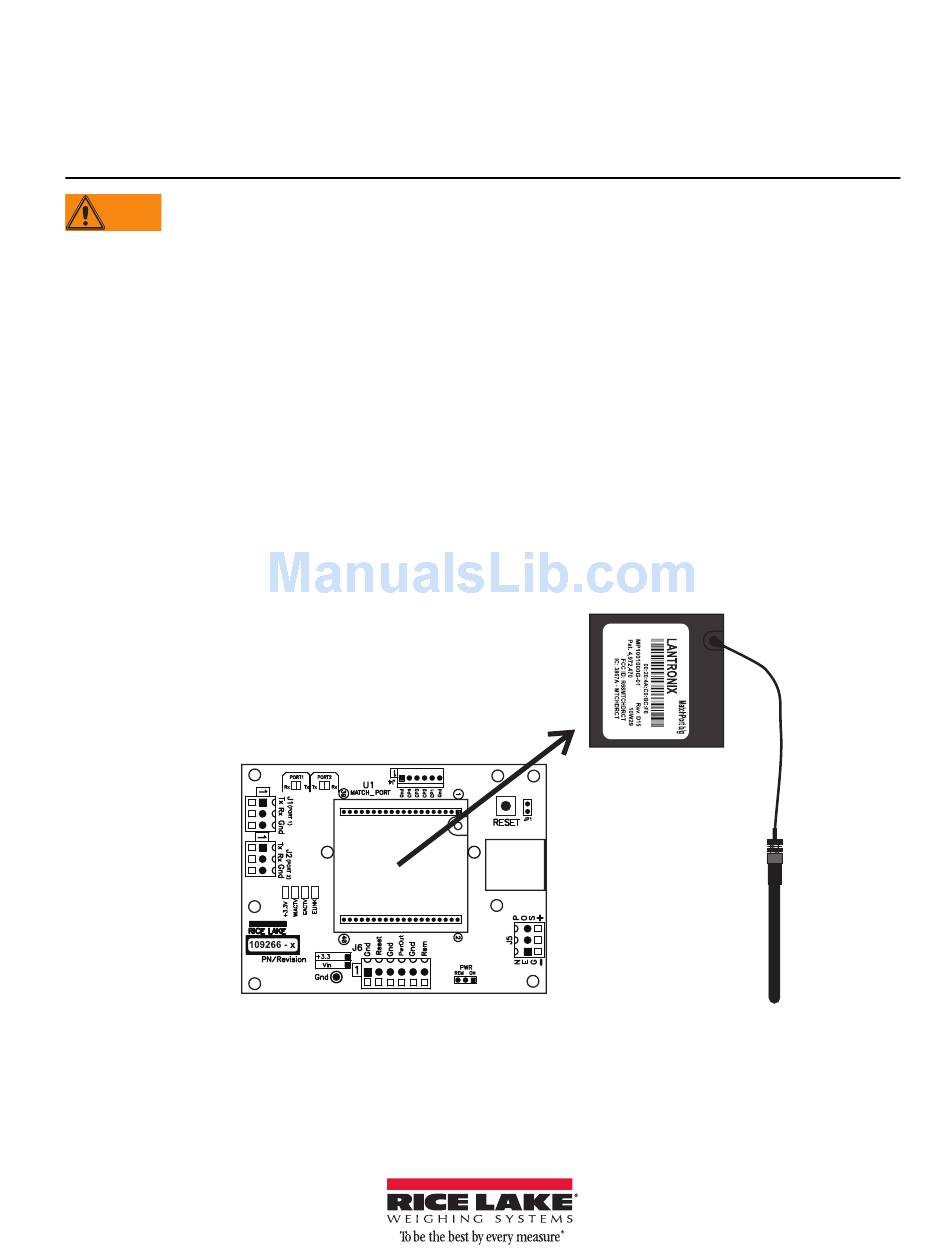

Figure 1. Remove Existing Matchport WLAN Module
131610

Advertisement

loading
Need help?

Need help?

Do you have a question about the CLS420 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rice Lake CLS420

  • Page 1 ® CLS420 Forklift Scale Bluetooth Option Installation Instructions Option PN 130930 Electric Shock Hazard Warning Before opening the unit, ensure the power cord is disconnected from the power outlet. Bluetooth Option kit 130930 is intended to replace the Lantronix Matchport WLAN module on carrier board 109266.
  • Page 2 To install the Bluetooth option board, line up the two rows of pins with the sockets on the board assembly - J1 designator on the option board with Pin 1 designator on the board assembly - and carefully push the option board fully into the sockets on the board assembly. See Figure 2.
  • Page 3 6. Attach the antenna. • If the antenna cable is to be secured through the enclosure (antenna screwed on from the outside), run the RPSMA jack on the antenna cable through the enclosure and secure with the provided lock washer and nut. Screw the antenna on the outside of the enclosure.
  • Page 4 Using the Bluetooth Option The Bluetooth option operates as a simple serial to Bluetooth converter, using the Bluetooth SPP, or Serial Port Protocol. The device is set up to be discoverable at all times. 1. From a PC or other Bluetooth device, perform a search for available Bluetooth devices. •...
  • Page 5: Fcc Statement

    FCC Statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 6 PN131610 05/2012...
