U-Line H-2027 Manual

π

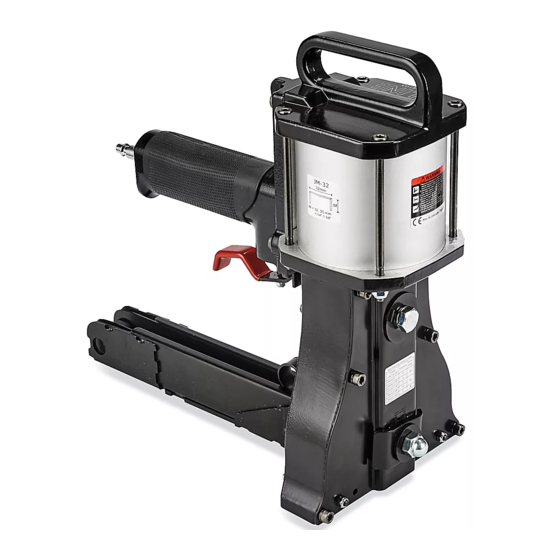

H-2027
Triple Wall
CarTON STapler
Dimensions (L x H x W)
Weight (Without Fasteners)
Air Inlet
Maximum Operating Pressure
Recommended Operating Pressure
Air Consumption
Staples Specification
Staples Capacity
Noise Levels
WARNING! Before operating this stapler, all operators should study this manual to understand and follow
the safety warnings and instructions. Keep these instructions with the stapler for future reference. If you
have any questions, contact Uline.
CAUTION! Read this manual and understand all
safety instructions before operation the tool. If
you have any questions, please contact Uline.
Never use flammable gases as a power source
for the stapler. Only use filtered, compressed air.
Never use gasoline or other flammable liquids
to clean the stapler. Vapors in the stapler could
ignite by a spark and cause the stapler to
explode.
Do not exceed 100psi of air pressure when
operating the stapler.
Disconnect the stapler from the air supply
before cleaning jams, servicing, adjusting and
when not in use.
PAGE 1 OF 4
1-800-295-5510
uline.com
SPECIFICATIONS
SAFETY
14.2 x 13.2 x 6.9"
13.2 lbs.
1/4" NPT
100psi
71-100psi
2.4 C.F.M. With 10 Staples Per Minute at 80psi
Crown 32mm, Length 25, 28, 32, 35, 38mm
100 Staples
89dBA
WARNING! Do not pull the trigger when
carrying the stapler. Never carry by the hose or
pull on the hose to move the stapler.
Always wear protective equipment; i.e., safety
glasses, hearing protection and head
protection.
Do not use a check valve or any other fitting
which allows air to remain in the stapler.
Do not place your hand or any part of
your body in the staple-clinching area
or adjustment window of the tool when
connecting of disconnecting air supply.
Never point the stapler at yourself or
at any other person.
0414 IH-2027
