Cisco Catalyst 2.4 GHz and 5/6 GHz Dual-Band Polarization-Diverse Directional Patch Antenna (C-ANT9103=)

Mounting Directly on a Wall Through Mounting Holes on the Antenna

The fasteners and mounting surface should be capable of maintaining a minimum pullout force of 150
Note
pounds (68 kg) to support the weight of the antenna along with the potential wind loading on the antenna.
Step 1 Determine the mounting location for the antenna.
Step 2 Mount the antenna to the wall using four 4 mm or #8 screws and fasteners, through the holes on the
antenna. See
Step 3 Orient the antenna correctly so that the antenna cable exits downwards.
Step 4 Place the cap plugs to cover the mounting holes on the antenna.
Connect the antenna's 8-DART plug to the access point.
Step 5
For the recommended cable type, see the

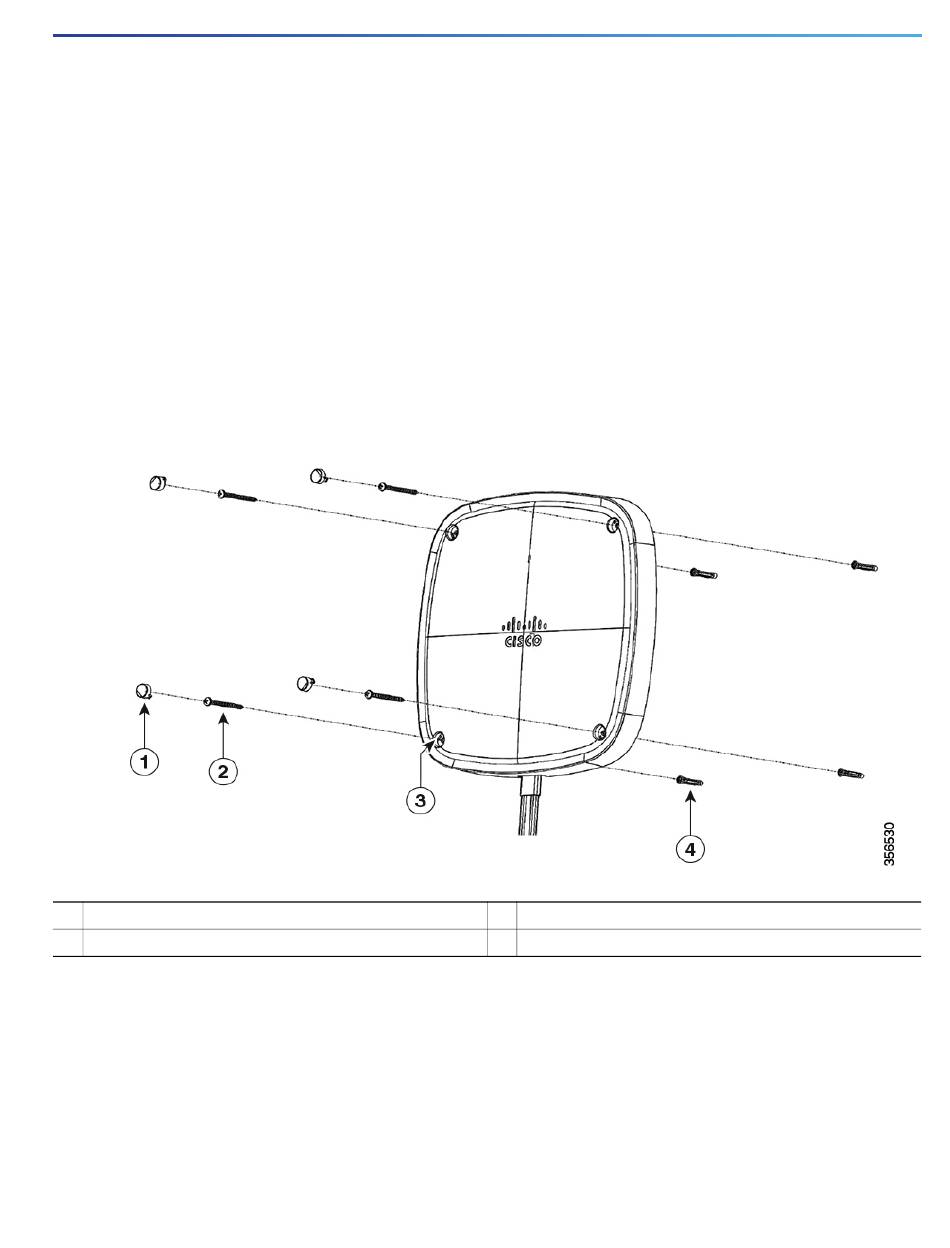

Figure 10 Exploded View of Antenna and Hardware Assembly for Direct Wall Mounting
1 Cap plugs.
2 #8-18 stainless steel self tap screw.
Figure 10.
"Recommended Cable" section on page
3 One of four mounting holes on the antenna.
1
4 #6-8, 1 / -inch anchor.
4
21
26.
