Cisco Catalyst 2.4 GHz and 5/6 GHz Dual-Band Polarization-Diverse Directional Patch Antenna (C-ANT9103=)

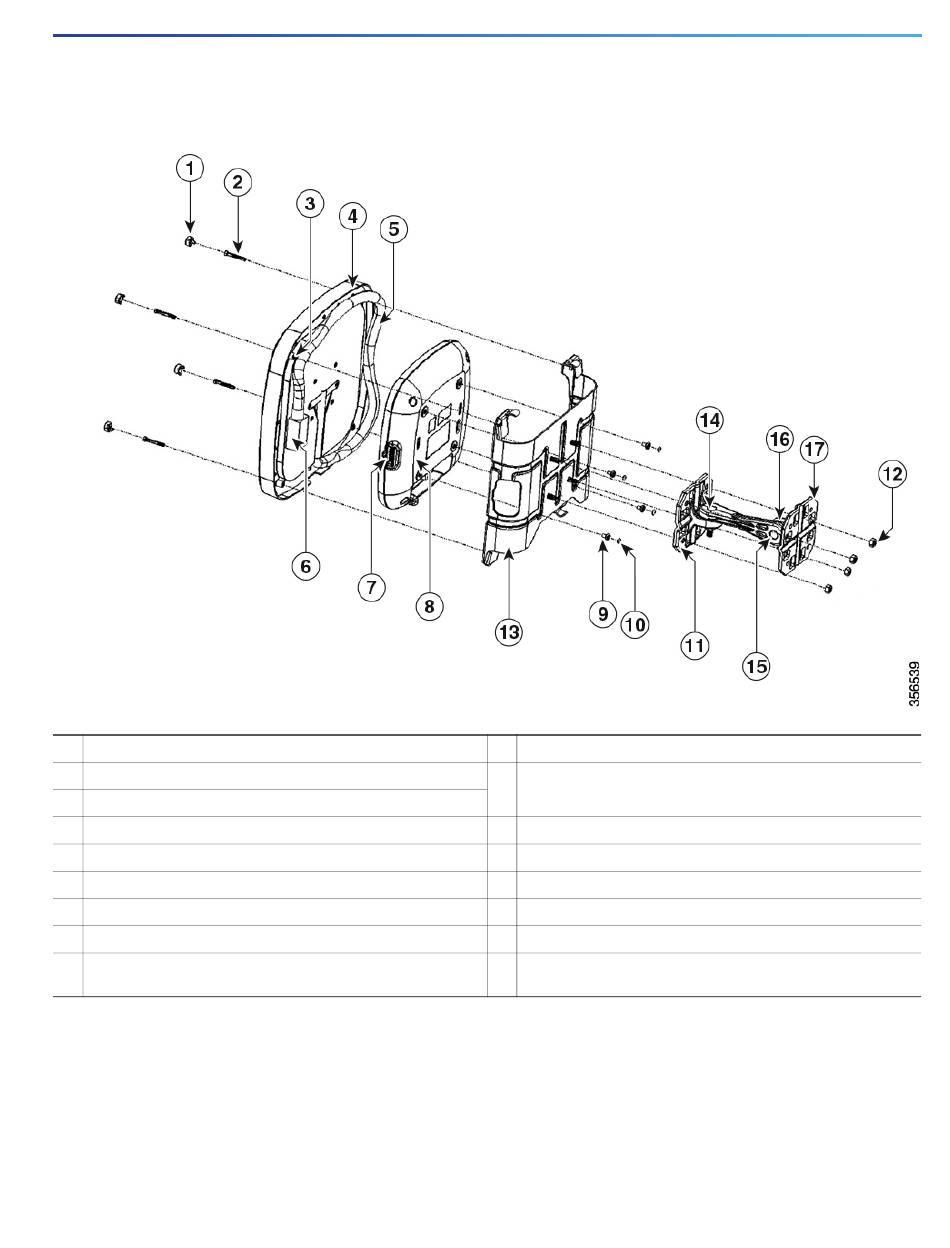

Figure 12 Exploded View of Bracket Hardware Assembly for Directly Mounting Access Point to Back of Antenna
1 Cap plugs.
2 #8-18 stainless steel self tap screw.
3 Mounting holes on the antenna.
4 Antenna.
5 Antenna's octal DART cable.
6 Antenna's octal DART plug.
7 Access point's octal DART port.
8 Access point.
9 Shoulder screw.
10 Rubber feet.
11 Articulating mount flange attached to the back of the
AIR-AP-BRACKET-9=.
1
12 / -20 serrated flange locknut.
4
13 AIR-AP-BRACKET-9=.
14 The azimuth adjustment pivot.
15 The elevation adjustment pivot.
16 Mounting arm.
17 Articulating mount flange bracket fixed to the mounting
surface.
