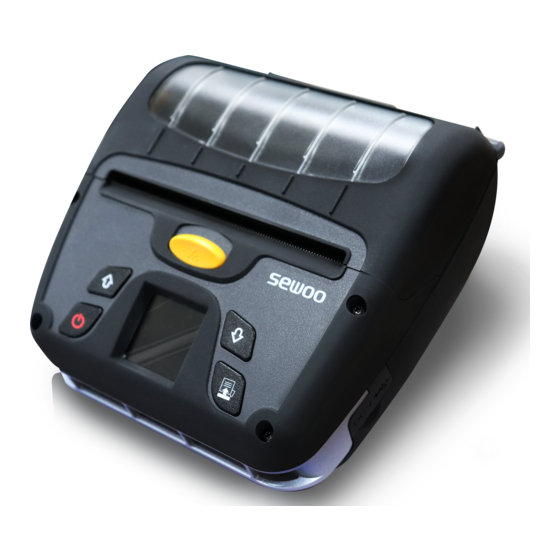

SEWOO LK-P400 Manual

Mobile printer(wi-fi & bluetooth)
Hide thumbs Also See for LK-P400:
Table of Contents

Advertisement

Quick Links

MODEL : LK-P400
MOBILE PRINTER(Wi-Fi & Bluetooth)
Aroot Co., Ltd.
28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do ,18103, Republic of Korea
TEL +82-31-8077-5000 / FAX +82-31-459-8880 / http://www.miniprinter.com
All specifications are subject to change without notice
P400 ENG Rev. A 04/20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LK-P400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SEWOO LK-P400

Summary of Contents for SEWOO LK-P400

  • Page 1 MODEL : LK-P400 MOBILE PRINTER(Wi-Fi & Bluetooth) Aroot Co., Ltd. 28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do ,18103, Republic of Korea TEL +82-31-8077-5000 / FAX +82-31-459-8880 / http://www.miniprinter.com All specifications are subject to change without notice P400 ENG Rev. A 04/20...
  • Page 2 Following information shall be included in the manual This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions. Information to User; 1) This device may not cause harmful interference, and including  2)  T his device must accept any interference received, Caution: interference that may cause undesired operation.
  • Page 3 Safety Precautions For better safety and reliability, adhere to the following precautionary measures. WARNING Read and follow the instructions carefully before operation of the product. Failure to follow these instructions could result in fire, electric shock, other injuries, or property damage. Indication Do not disassemble, Prohibition...

  • Page 4: Table Of Contents

    Table of Contents Product Overview Maintenance 1. Unpacking 9. Cleaning the Printer 2. Product overview 9-1. Print-Head Cleaning 3. Control Panel Usage 9-2. Platen Roller Cleaning 10. JAM Error Set Up Spectification 4. Paper Installation 11. Black Mark 5. Battery 12.

  • Page 5: Unpacking

    1. Unpacking 2. Product overview Standard Front COVER OPEN Button POWER Button Printer Battery Charger USB Cable Paper FEED Button Quick Manual CD (Manual) Roll Paper Belt Strap DC POWER Optional Rear Strap Bracket Battery Large Battery Charging Cradle Cigar Jack Shoulder Strap...

  • Page 6: Control Panel Usage

    3. Control Panel Usage 4. Paper Installation CAUTION Make sure to be careful of the HOT head COVER OPEN button Button Name Function Paper guide - This button is used to turn the printer on and off. Press the COVER OPEN button up to open the Place the paper roll as shown.

  • Page 7: Battery

    5. Battery 5-1. Battery Installation 5-2. Battery Removal Please make sure you REMOVE hear the closing sound of the upper cover. HOOK Remove the battery as shown. 1 Press up on the battery handle and lift it up. 1 Align battery hook as shown in the picture. 2 Remove the battery.

  • Page 8: Battery Charging

    5-3. Battery Charging 5-4. Charging Cradle Optional Lamp Lamp 1 Insert the battery into the battery charger as shown above. 2 Connect the DC JACK to the electrical outlet. 1 Make sure the printer is turned off. 3 Plug the power cord into the electrical outlet. 2 After opening the DC JACK cover, connect the DC JACK to the printer.

  • Page 9: Belt Strap

    6. Belt Strap 7. Self Test Prepare the belt strap. Put the strap into the strap bracket hole Turn off the power by pressing the While you are holding the FEED button, as shown. power button for approximately  press the power button. 3 seconds.

  • Page 10: Peripheral Connection

    8. Peripheral Connection Self-Test Printout Sample This product can communicate with other devices via Bluetooth, Wi-Fi, or a communication cable. Upon initial installation or for troubleshooting, you can run the diagnostic test to get information about: - Firmware version, emulation, codepage, sensor settings,  interface settings, etc.

  • Page 11: Nfc Connection

    8-3. NFC Connection 8-4. Interface Cable Connection The printer can be connected to devices equipped with NFC communication capabilities. Cover 1 Flip over the connector cover and connect USB cable to the printer connector. NOTE Only use cables included with the printer. (USB) Use the NFC connection function supported by the device to connect to the printer.

  • Page 12: Cleaning The Printer

    9. Cleaning the Printer 9-2 Platen Roller Cleaning If the interior of the printer is dusty, printing quality can be reduced. In this case, follow the instructions below to clean the printer. 1 Clean the platen roller with a clean soft cloth moistened with isopropyl alcohol or a cleaning pen.

  • Page 13: Jam Error

    10. JAM Error 11. Black Mark CAUTION Make sure to be careful of the HOT head. When you face with a paper jam error, Please remove the paper. please press the button up to open the PRINTER COVER. NOTE NOTE Please make sure you hear the If the cover is not shut down completely, closing sound of the upper cover.

  • Page 14: Printer Specification

    13. Printer Specification 12. Gap Printing Method Direct Thermal Printing Speed Max. 127 mm/s Resolution 203 DPI Font A(12×24), Font B(9×17), Asian Font(KOR,JPN,CHN-GB2312,CHN- Character Big5), Font0/1/2/4/5/6/7, Resident TTF, Downloadable TTF, FontA~H, FontGS, Residnt TTF(Font0), Font 1~8 - 1D : EAN-8, EAN-13, Code39, ITF, UPC-A, ESC/POS UPC-E, Codabar, Code93, Code128 - 2D : QR, PDF417...
  • Page 15 Type Thermal Receipt / Label / Linerless Roll Max Paper Max. 57.5 m Diameter Roll Core 12.5 mm Standard Interface Wi-Fi(802.11a/b/g/n/ac), Bluetooth Smart Option ready combo(Bluetooth 4.2+BLE) Input AC 100 ~ 240V, 50/60Hz Battery Charger Output 8.4 V, 800 ~ 1400 mA Type Li-ion Battery...
