- Page 1 MSI Dyna-Clamp Tension Meter Operation Manual May 19, 2020 PN 193853 Rev A...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
-
Page 3: Table Of Contents
5.0 Specifications ............... . . 14 Technical training seminars are available through Rice Lake Weighing Systems. - Page 4 MSI Dyna-Clamp Tension Meter Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars www.RiceLake.com Visit our website...
-
Page 5: Introduction
Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals. -
Page 6: Display

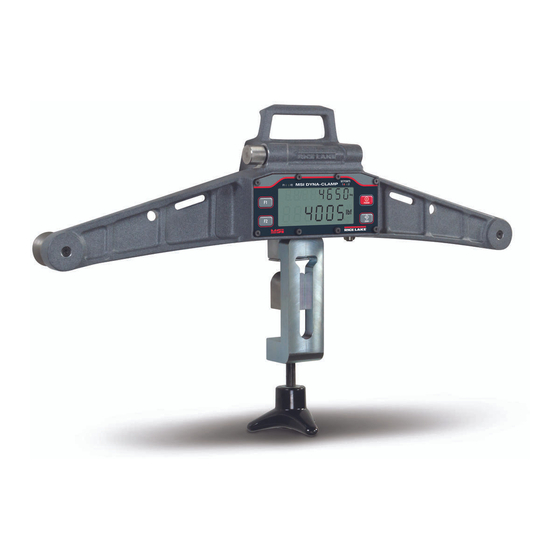

MSI Dyna-Clamp Tension Meter Display The front panel consists of a two-line, LCD display with four LED annunciators and four keys. This section provides a detailed description of what is featured on the display and the key functions. SETPOINTS MSI DYNA-CLAMP... -
Page 7: Operation
Immediately after unpacking the Dyna-Clamp from the shipping container, visually inspect the product to ensure all components are included and undamaged. If parts were damaged in shipment, notify Rice Lake Weighing Systems and the shipper immediately. Retain the shipping container for future shipping or transporting of the unit. -
Page 8: Zero
MSI Dyna-Clamp Tension Meter Zero Press when the Dyna-Clamp is not under tension to remove small deviations of the zero reading. Zero on location, just prior to positioning the Dyna-Clamp on the wire rope. Re-zero the Dyna-Clamp each time the wire rope selection is changed. -
Page 9: Average Function
The Dyna-Clamp has a slot and hole on either side of the display to accommodate the attachment of a safety strap. 2.10 Carry Case Option A hard-sided carry case (PN 198418) is available as an option to provide more protection and security when transporting the Dyna-Clamp tension meter. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 10: Configuration
This section describes parameter settings on the Dyna-Clamp. The Dyna-Clamp is factory calibrated for up to eight wire rope diameters. Calibrations may only be performed by Rice Lake Weighing Systems. Please contact Rice Lake Weighing Systems for calibration assistance or if additional wire rope calibrations are required. -
Page 11: Function Keys
(top) display area. If the average function is displayed, then adds an additional value to the average. If peak function is displayed, then clears the current peak value. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 12: Auto-Off
MSI Dyna-Clamp Tension Meter Auto-Off The Auto-Off feature prolongs the life of the battery by turning power off when Dyna-Clamp is not in use. A key press or detected tension in motion exceeding 10 d, resets the Auto-Off time count. -
Page 13: Filter
. The current setting flashes in the secondary (top) display area. 4. Press to scroll through the available units. 5. With desired unit displayed, press to accept. displays. 6. Press to save and return to tension mode. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 14: Battery Life
MSI Dyna-Clamp Tension Meter Battery Life The battery life parameter () offers a standard mode () and a long battery life mode (). When in the long battery life mode, the system is placed into a sleep state if there is no change in tension after a period of time. This disables the display in order to reduce power consumption and increase the battery life. -
Page 15: Troubleshooting And Maintenance
% of capacity before a new average can be taken Setpoint LEDs blink Range is enabled and a trigger point has Disable range if it is not needed been reached Table 4-1. Troubleshooting © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 16: Error Codes
MSI Dyna-Clamp Tension Meter 4.1.1 Error Codes The ScaleCore processor of the Dyna-Clamp detects errors and generates error codes to aid in troubleshooting. Error Code Description LC Disabled – A load cell was not enabled Not Calibrated – System has not been calibrated ... -
Page 17: Drive Rod Lubrication
Bobbin Bolt Figure 4-3. Bobbin Installation Part No. Description 191155 Wire Rope Bobbin 192660 Shoulder Bolt, 1/2-13 x 1-1/4 Table 4-4. Bobbin Parts List © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 18: Specifications
MSI Dyna-Clamp Tension Meter Specifications Power Battery Operated Two AA Cell 1.5 V Alkaline Batteries ( can be replaced with rechargeable NiMH cells) Operating Time Alkaline AA Cells 24 hours Wire Rope Diameter 3/16'' (5 mm) – 1'' (25 mm) - Page 20 Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319...
