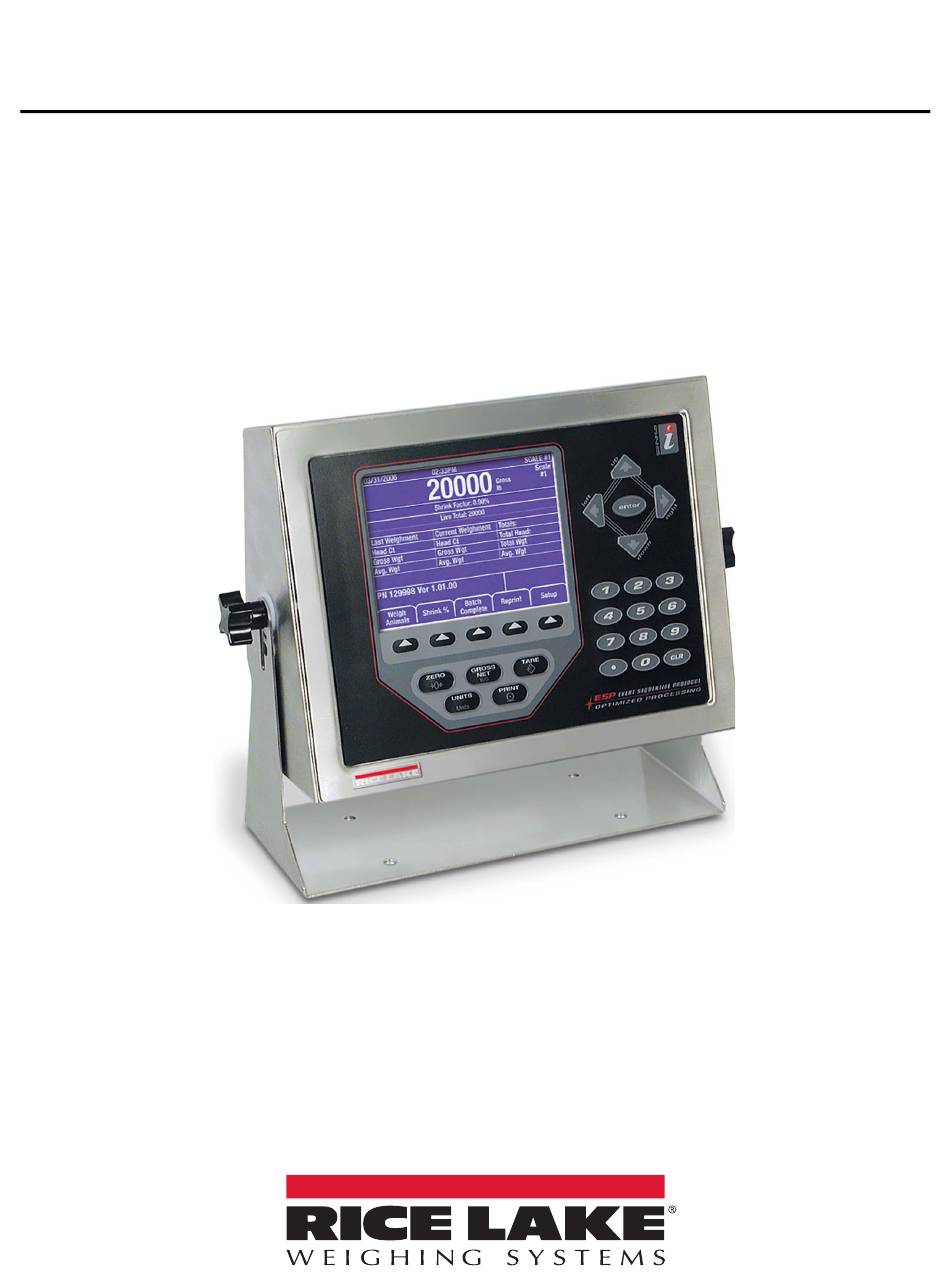

- Page 1 920i AC/DC Version ® Agricultural Multi-Animal Indicator Operation Manual January 19, 2021 PN 184718 Rev C...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
-
Page 3: Table Of Contents
6.0 Specifications ............... . . 20 Technical training seminars are available through Rice Lake Weighing Systems. - Page 4 920i AC/DC Version Agricultural Multi-Animal Indicator Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars www.RiceLake.com Visit our website...
-
Page 5: Introduction
Introduction Introduction The 920i AC/DC Indicator can be installed on most Rice Lake Weighing Systems livestock scales. This system is manufactured with top quality components and is engineered using the latest technology to provide operating features and reliability unmatched for years to come. -
Page 6: Fcc Compliance
920i AC/DC Version Agricultural Multi-Animal Indicator FCC Compliance United States This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 7: Front Panel
Tare Annunciator — Used to zero out a known weight Center of Zero Annunciator — Indicates that the scale is zeroed Standstill Annunciator — Indicates that the load force has settled within the motion window Table 1-1. Front Panel Display © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 8: Softkeys
920i AC/DC Version Agricultural Multi-Animal Indicator 1.2.2 Softkeys Weigh Batch Shrink % Reprint Setup Animals Complete SOFTKEY1 SOFTKEY2 SOFTKEY3 SOFTKEY4 SOFTKEY5 Figure 1-2. Softkey Assignments Softkey Description Weigh Animals Press each time a new group of animals is placed on the scale during a batch process... -
Page 9: Indicator Settings
Time and Date The 920i AC/DC Indicator has a built-in time and date clock that automatically adjusts for leap years. The real time clock will run even if power is removed from the indicator. There is a battery inside the indicator that will keep the clock running continuously while there is no power to the indicator. -
Page 10: Operation
920i AC/DC Version Agricultural Multi-Animal Indicator Operation This section provides an overview of 920i AC/DC Indicator operation information. A printer is optional, so all references only apply if there is a printer connected to the 920i AC/DC indicator. IMPORTANT Weighing Multiple Animals 1. -
Page 11: Weigh Ticket Print-Out (Optional)
Shrink % Press at any time to change the shrink percentage (0.0–99.99%) SOFTKEY2 to be subtracted from the total gross weight. This is saved through power cycles. The default is 0.0%. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 12: Weighing A Single Animal
920i AC/DC Version Agricultural Multi-Animal Indicator Weighing a Single Animal Weigh 1. Press and enter a head count of 1. Animals SOFTKEY1 Batch 2. Press to print the summary information of a batch on the weigh ticket. Complete SOFTKEY3 Print Report 3. -
Page 13: Configuration
Configuration Configuration This section provides an overview of 920i AC/DC Indicator configuration information. Configuration Mode The setup switch must be pressed to enter the configuration mode. If the indicator has an NTEP seal, it needs to be cut to access the switch. -
Page 14: Database And Stored Workbooks
920i AC/DC Version Agricultural Multi-Animal Indicator Database and Stored Workbooks Field Type Description TimeDate Time and date of weighment TotalWgt Real Total weight on the scale HeadCnt Integer Head count entered AvgWgt Real Individual gross weight (total divided by head count) -
Page 15: Usb Flash Drive
USB Connectors Figure 3-2. USB Drive Location 3.3.1 USB Driver Installation Before connecting the 920i AC/DC Indicator to a PC, the appropriate driver must be installed. 1. Open the Rice Lake website at www.ricelake.com 2. Navigate to the 920i USB page. -
Page 16: Usb Softkey
Supports USB 2.0 flash drives formatted to the FAT-32 or FAT-16 file system up to 4 G max Table 3-6. USB Devices Use the following to connect a USB device: 1. Attach the USB device to the proper USB connector on the indicator. USB connections use Port 2 on the 920i. 2. Press the USB softkey. Note If the USB softkey is not displayed, see Section 1.2.2 on page 4... -
Page 17: Loading Configuration Files And Databases
3.3.6 Loading Configuration Files and Databases Certain files may take extended periods of time to load directly from a PC to the 920i. A flash drive is recommended for fast loading times. When using multiple 920i units, it is recommended to create a folder matching each ones unit ID number. When loading configuration files, the unit will load the file contained in a folder matching its UID# (the default UID# is 1). -
Page 18: Loading Database Files
5. Select Load All Databases (*.db) and press Enter. Saving Configuration Files and Databases Certain files may take extended periods of time to save directly from a PC to the 920i. For fastest save times, using a flash drive is recommended. -
Page 19: Front Panel Calibration
Front Panel Calibration Front Panel Calibration This section provides an overview of 920i AC/DC Indicator front panel calibration information. 12/15/2015 01:57PM SCALES SCALE1 CALIBR REZERO WZERO WVAL 1291 Deadload Calibration Zero Count => Last Zero Calibrate Temp Zero Millivolts Figure 4-1. WZERO Calibration Display The CALIBR sub-menu (under the SCALES menu) is used to calibrate the MAS-LC. -
Page 20: Appendix
920i AC/DC Version Agricultural Multi-Animal Indicator Appendix This section provides an overview of additional information for the 920i AC/DC Indicator. Parts Kit Part No. Description 103610 Knob, Black 1/4-20 103988 Washer, Nylon 0.515 - 0.52 14626 Nut, KEP 8-32 NC Hex... -
Page 21: Repair Parts
Appendix Repair Parts DC Power Supply AC Power Supply Figure 5-1. 920i AC/DC Animal Weigher Parts Illustration © Rice Lake Weighing Systems ● All Rights Reserved... - Page 22 Screw, Mach 1/4-28 NF x 1/4 Phillips, Drilled Fillister Head, 18-8 SST 44676 Washer, Bonded Sealing SST 1/4 ID x 5/8 OD 67530 Plate, Interface Board 920i 67535 Gasket, Interface Board Access Cover Plate 920i 75062 #8 Bonded Sealing Washer 7/16 OD SST 14845 Screw, Mach 6-32 NC x 3/8'' 186272...
-
Page 23: Dimensions
Check for leaks and reseal A load cell cable may be pinched or damaged Contact Rice Lake Weighing Systems or a qualified dealer for support; Cutting the load cell cable will void the warranty; Special repair techniques are required... -
Page 24: Specifications
920i AC/DC Version Agricultural Multi-Animal Indicator Specifications Power 100 - 240 VAC, Range 90 - 264 VAC 12-24 VDC, Range 9 - 36 VDC Power Consumption 340 mA @ 115 VAC (26W) Excitation Voltage 10 ± VDC, 16 x 350 ohm or 32 x 700 ohm load cells per A/D card... - Page 26 Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319...
