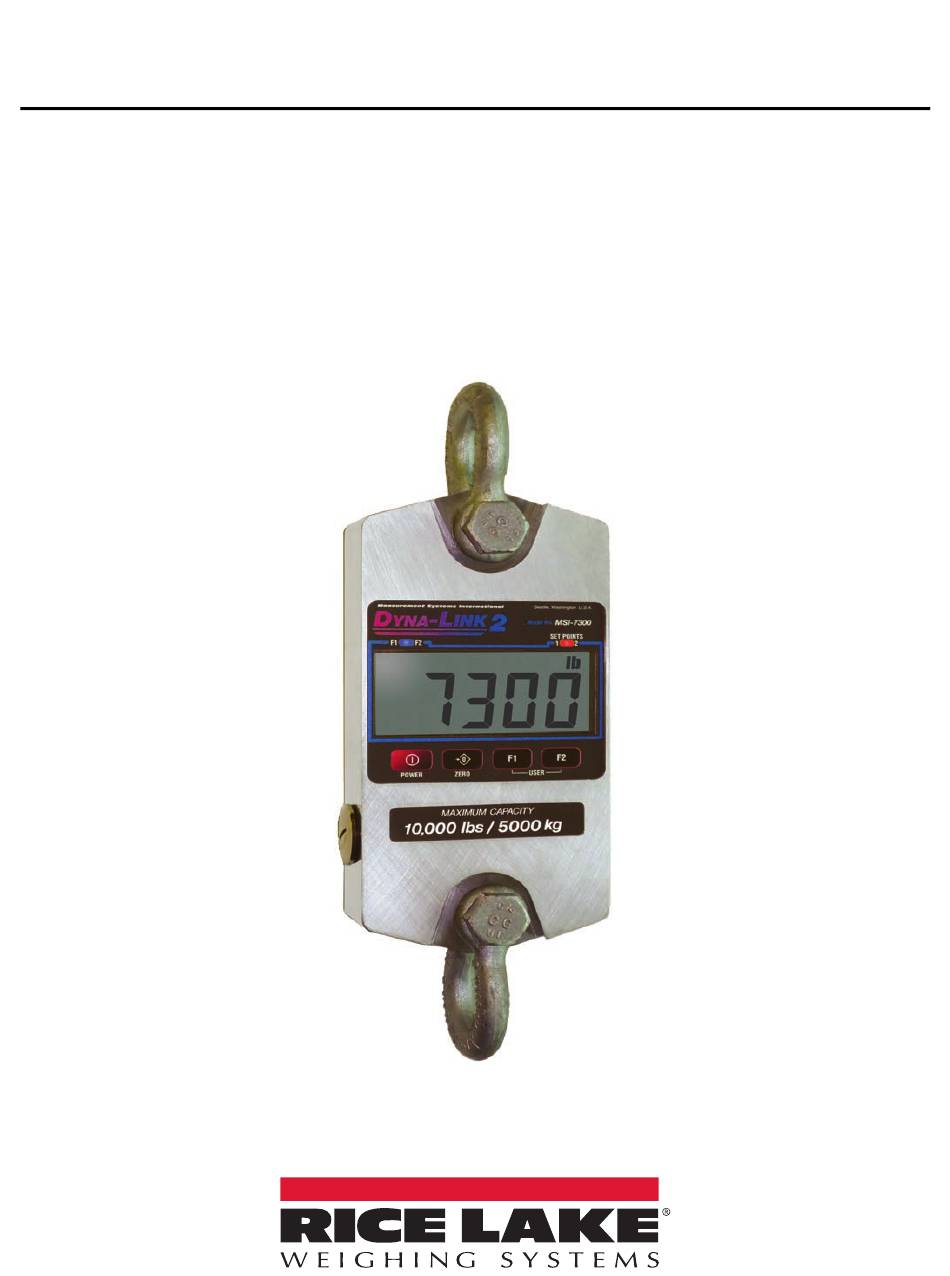

- Page 1 MSI-7300 Dyna-Link 2 Tension Dynamometer Technical Manual PN 152160 Rev E May 24, 2021...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
-
Page 3: Table Of Contents
Zero on Power-up (0.P-UP) ..............21 Technical training seminars are available through Rice Lake Weighing Systems. - Page 4 9.0 Specifications ............... . . 37 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost.
-
Page 5: Introduction
Introduction The MSI-7300 Dyna-Link 2 is a reliable, accurate, easy to operate, multipurpose tension dynamometer. Designed with safety factors exceeding the industry standard, the unit is ideal for situations in which headroom is at a minimum. The unit is fully sealed for outdoor use in any weather. -
Page 6: Safety
Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals. -
Page 7: Display
Five digit 1.22'' (31mm), sunlight visible, LCD Tension Display; Units with maximum capacity of 100,000 lb and up come with a six digit 1'' (26 mm) display Table 1-2. Annunciator Descriptions © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 8: Available Configurations
MSI-7300RF 380,000 Lb Final Assembly 152798 MSI-7300RF 550,000 Lb Final Assembly Dyna-Link 2 Digital Tension Dynamometer With Integrated Bluetooth RF 176806 MSI-7300 1,000lb F/A with Bluetooth RF 176807 MSI-7300 2,500lb F/A with Bluetooth RF 176808 MSI-7300 5,000lb F/A with Bluetooth RF... -
Page 9: Options
Shackle, Bolt Type 350000lb (175 Ton) G-2140 151358 Shackle, Bolt Type 500000lb (250 Ton) G-2140 139381 MSI-8000 Remote Display RF (Requires an MSI Crane Scale or MSI-7300 equipped with a RF Modem) 153591 Final Assembly Remote Display AC Power 8000HD 165313... -
Page 10: Operation
MSI-7300 Dyna-Link 2 Operation This section includes the basic operation of the Dyna-Link 2. Power Turn on the Dyna-Link 2 by pressing . The LCD displays all segments for a display test and the software version number will briefly display. When displays, the unit is ready for use. -
Page 11: Installation
NiMH Cells in C and D sizes have a lower capacity then the Alkaline C and D sizes. Rice Lake Weighing Systems recommends having two sets of NiMH batteries, so one set can be charging while the other is in use. -
Page 12: Setup
MSI-7300 Dyna-Link 2 Setup This section describes parameter settings on the Dyna-Link 2. Use the following keys for navigating through the menus when setting up the Dyna-Link 2. 1. Press simultaneously to enter setup menu. 2. Press to scroll through the parameters or settings. -
Page 13: Function Keys
The operator can switch back to gross from net without clearing the tare value. Only clearing the tare, or setting a new tare, will change the tare value held in memory. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 14: Tare
MSI-7300 Dyna-Link 2 4.2.5 Tare Press the Tare F-key to tare out a known force, only positive and negative deviations from the tared force display. In force measurement applications, tare is useful as a way to display differential force. It also increases accuracy as any initial error is removed leaving only slope error. -
Page 15: Print
Total Count – responds to the total count (number of samples) LFcnt Lift Counter – counts the total number of lifts where the weight exceeded capacity by more than 25% Table 4-2. Setpoint Parameters © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 16: Total
MSI-7300 Dyna-Link 2 To setup a setpoint: 1. Press simultaneously to enter setup menu. displays. 2. Press to scroll to . 3. Press . The current setting displays. 4. Press to scroll to the desired setpoint mode (Table 4-2). -
Page 17: Filter
. The current filter mode displays. 4. Press to scroll through the available filters. 5. When the desired filter is displayed, press . displays. to save and return to the Weigh mode. 6. Press © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 18: Units
MSI-7300 Dyna-Link 2 Units Units can be changed in two ways: • Program an F-key to or • Change the units with the setup menu using the following procedure Units Pounds Kilograms Short Tons MTons Metric Tons KiloNewtons Table 4-5. -
Page 19: Calibration
Auto Zero Maintenance 0.p-up Set to On will cause the Dyna-Link 2 to 0 when it is powered on; Default is OFF Table 5-1. Calibration Menu © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 20: Standard Calibration
MSI-7300 Dyna-Link 2 Standard Calibration 1. Press simultaneously to enter the calibration menu. displays. 2. Press to start calibration. displays. 3. Remove all weight from the scale. Bottom fittings can be left on the link as long as they are always part of the load train. -
Page 21: Initial Calibration
For large capacity Dyna-Link 2’s, enter the capacity in weight X1000 and push twice. Note X1000 mode is indicated by the M annunciator during data entry. For the 100,000 lb unit, enter 100 and press twice so the M annunciator is on. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 22: Guidelines For Capacity And Resolution
MSI-7300 Dyna-Link 2 5.2.1 Guidelines for Capacity and Resolution The Dyna-Link 2 is subject to forces that static scales do not experience. Many bridge cranes, hoist cranes, and mobile cranes lack rigidity and tend to bounce or swing when loads are lifted. For this reason, MSI recommends that resolution is kept in the 1:2000 to 1:3000 range. -
Page 23: C-Cal Calibration
Multiple C-CAL span points are possible when using the ScaleCore Connect program. Note 9. Press twice to exit and save the new calibration. displays briefly and the Dyna-Link 2 returns to the Weigh mode. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 24: Calibration Setup Menu
MSI-7300 Dyna-Link 2 Calibration Setup Menu The calibration setup menu contains the Standard menu and the Auto Zero Maintenance menu. Additional menus display depending on the main setup menu when Legal-for-Trade settings are used. Parameter Selections Description Industrial Standard Settings Industrial The common setting for the MSI-8000 RF Remote Display;... -
Page 25: Auto Zero Maintenance (Azm)
or . 7. Press to select desired setting. displays. twice to store settings. displays briefly and the Dyna-Link 2 returns to the Weigh mode. 8. Press © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 26: Communications
MSI-7300 Dyna-Link 2 Communications The Dyna-Link 2 can communicate with peripheral devices using RS-232 or 802.15.4 wireless. Only one communications type can exist at a time. The RS-232 port located on the bottom side of the Dyna-Link 2 can be used for setup and calibration using a computer and the ScaleCore Connect Software or for connection to a printer. -
Page 27: Printer
Download the ScaleCore Connect application from www.ricelake.com. Note The serial output is configured as 9600 baud, Xon/Xoff handshaking, no hardware handshaking, 1 stop bit, no parity. Other baud rates are available by special order. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 28: Printer Output Setup
MSI-7300 Dyna-Link 2 6.1.2 Printer Output Setup 1. Press simultaneously. displays. 2. Press . displays. 3. Press . The current print mode format number displays. 4. Set up a print format with one or more of the numbers of the data type required (Table 6-3 on page 23). -
Page 29: Comm Port Hardware
In extreme cases it may be necessary to use an opto-isolated RS-232 interface. Figure 6-1. Serial Cable Schematic, DCE Configuration for Connecting to a Computer Figure 6-2. Serial Cable Schematic, DTE Configuration for Connecting Directly to a DCE Printer © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 30: 802.15.4 Rf Network Setup
8. Press to scroll through the numbers and press to select the desired number. Any value of SCID from 1 - 254 is acceptable. For remote displays the value, Rice Lake Weighing Systems Note recommends a value from 0-3. If a wrong value is input, press to step back one digit and reenter the number. - Page 31 Any network ID numbers from 0-99999 is acceptable. Rice Lake Weighing Systems recommends a value of at least Note four digits to ensure that the system will not conflict with other 802.11.4 networks.
-
Page 32: Setup Multiple Sensor Network
All radio options meet FCC and international radio compliance per the certification information listed in this section. These modules may have additional international certifications that are not listed in this section. Please contact Rice Lake Weighing Systems if you require operation in a jurisdiction that is not listed. 6.6.1 802.15.4 (XBee 3 and XBee 3-PRO) -
Page 33: 802.15.4 (Xbee 2Sc)
• EN 300 328-1 • EN 300 328-2 2.4GHz 6.6.5 FHSS (Frequency Hopper Spread Spectrum) FCC Statement Contains FCC ID: HSW-DNT24 International Certifications Canada: Radio Certificate Number: IC 4492A-DNT24 ETSI Certified © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 34: Optional Rugged Remote
Optional Rugged Remote The MSI-7300 with an installed RF modem can be controlled with an optional Rugged Remote (PN 173014). The Rugged Remote is a transmit only device that can be used to perform basic scale functions. The range may vary up to 100' or more depending on room conditions and line of sight. -
Page 35: Power
This key is not programmable. 7.1.3 Programmable Function Keys Tare/F1 and FCN/F2 (pictures of buttons) are programmable in the MSI-7300. Function 1 is defaulted to Peak hold and Function 2 is defaulted to Test in the MSI-7300. See Section 4.2 on page 9 to configure the MSI-7300 function keys for Rugged Remote operation. -
Page 36: Maintenance
System is not stable It is also possible to increase the motion window; Contact Rice Lake Weighing Systems if there is a problem getting the Dyna-Link 2 to zero, tare, or total due to stability issues Setpoint is enabled and the trigger point has... -
Page 37: Error Codes
UndLd Table 8-2. Error Codes Service Counters Only a Rice Lake Weighing Systems factory representative can reset the service counters, as these are an WARNING important safety warning feature. A thorough load train inspection is necessary to ensure product safety. -
Page 38: Mechanical Dimensions
MSI-7300 Dyna-Link 2 Mechanical Dimensions C = DIA. 7300 E = LOAD CELL BODY WIDTH AT MAXIMUM CAPACITY SHACKLE 5000 lbs / 2500 KG INTERFACE. Figure 8-1. Mechanical Dimensions Approximate Capacity Shipping Weight Shackle 1000 lb 8.0'' 13.53'' .75'' .99'' 1.69''... -
Page 39: Standard Capacities And Resolution
100 kg 2250 50 kg 4500 3 D-Cells 2500 0.05 T 5000 225 Ton 0. 1 T 2206 kN 1 kN 2206 0.5 kN 4412 Table 8-4. Standard Capacities and Resolutions © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 40: Firmware Update Procedure
The latest firmware code is available from the Rice Lake service department and can be emailed on request. The firmware version displays when the Dyna-Link 2 is turned on in the form of 01-04 (individual unit version will vary). Most firmware updates do not require a recalibration. -
Page 41: Specifications
Data Output Serial RS-232 Warranty Two-year limited Dyna-Link 2 is designed to have a greater safety factor than the connecting shackles which have a typical ultimate Note safety factor of 600%. © Rice Lake Weighing Systems ● All Rights Reserved... - Page 42 MSI-7300 Dyna-Link 2 www.RiceLake.com Visit our website...
- Page 44 Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319...
