Mounting and securing

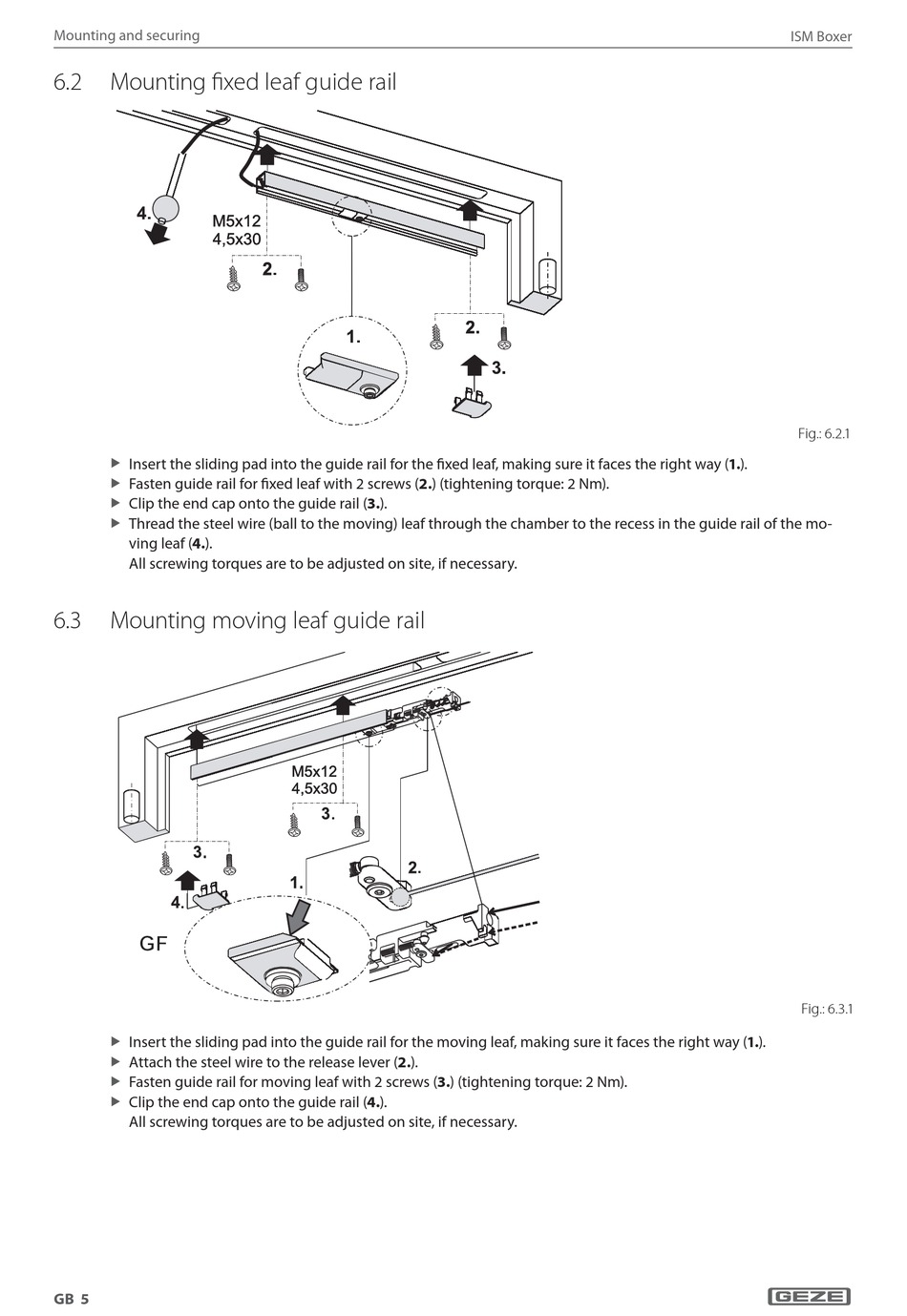

6.2 Mounting fixed leaf guide rail
X
Insert the sliding pad into the guide rail for the fixed leaf, making sure it faces the right way (1.).
X
Fasten guide rail for fixed leaf with 2 screws (2.) (tightening torque: 2 Nm).
X
Clip the end cap onto the guide rail (3.).
X
Thread the steel wire (ball to the moving) leaf through the chamber to the recess in the guide rail of the mo-
ving leaf (4.).
All screwing torques are to be adjusted on site, if necessary.
6.3 Mounting moving leaf guide rail
X
Insert the sliding pad into the guide rail for the moving leaf, making sure it faces the right way (1.).
X
Attach the steel wire to the release lever (2.).
X
Fasten guide rail for moving leaf with 2 screws (3.) (tightening torque: 2 Nm).
X
Clip the end cap onto the guide rail (4.).
All screwing torques are to be adjusted on site, if necessary.
GB 5
ISM Boxer
Fig.: 6.2.1
Fig.: 6.3.1
