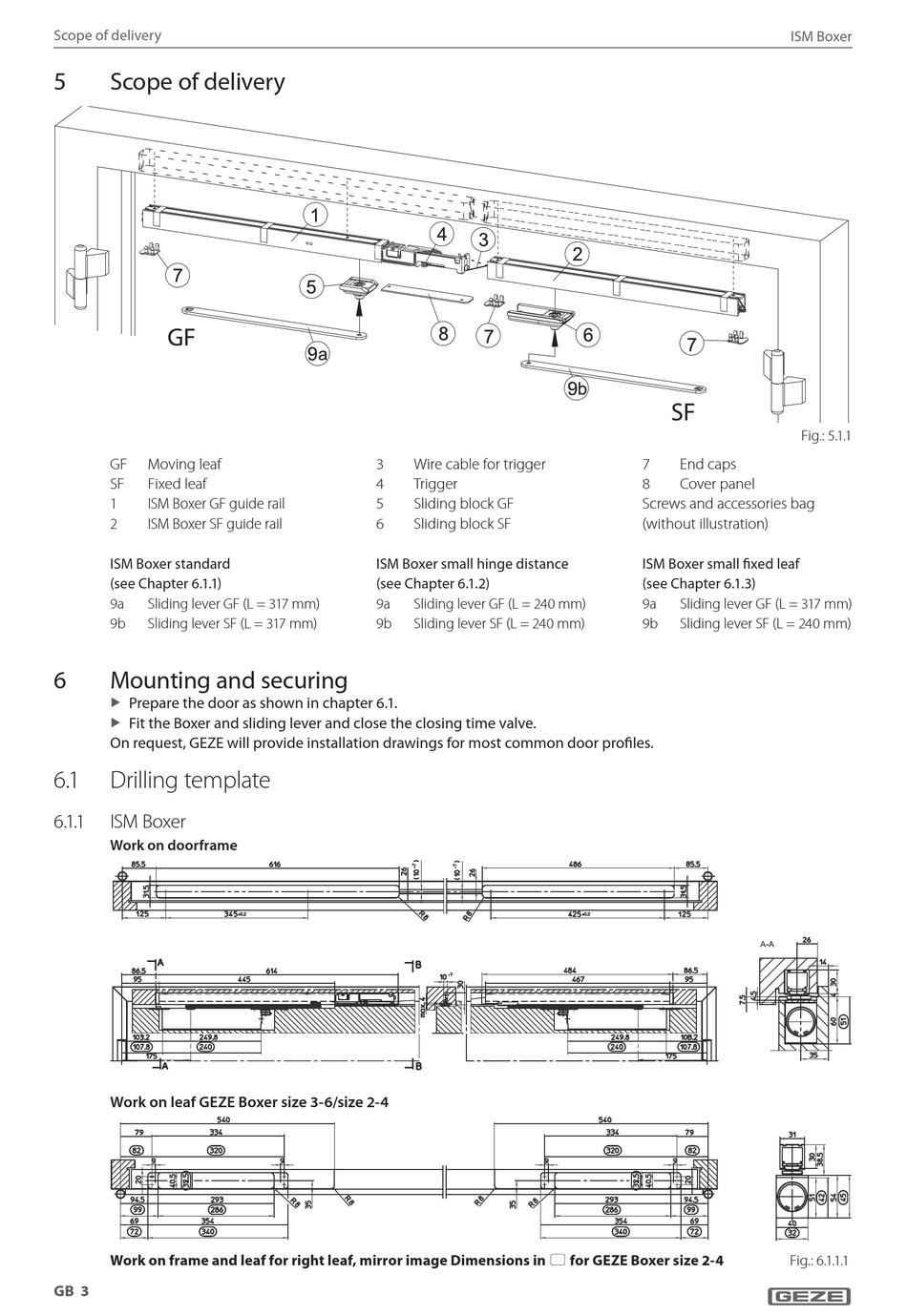

Scope of delivery
5 Scope of delivery
GF Moving leaf
SF Fixed leaf
1 ISM Boxer GF guide rail
2 ISM Boxer SF guide rail
ISM Boxer standard
(see Chapter 6.1.1)
9a Sliding lever GF (L = 317 mm)
9b Sliding lever SF (L = 317 mm)
6 Mounting and securing
X
Prepare the door as shown in chapter 6.1.
X
Fit the Boxer and sliding lever and close the closing time valve.
On request, GEZE will provide installation drawings for most common door profiles.
6. 1 Drilling template
6. 1 . 1 ISM Boxer
Work on doorframe
Work on leaf GEZE Boxer size 3-6/size 2-4
Work on frame and leaf for right leaf, mirror image Dimensions in
GB 3
3 Wire cable for trigger
4 Trigger
5 Sliding block GF
6 Sliding block SF
ISM Boxer small hinge distance
(see Chapter 6.1.2)
9a Sliding lever GF (L = 240 mm)
9b Sliding lever SF (L = 240 mm)
7 End caps
8 Cover panel
Screws and accessories bag
(without illustration)
ISM Boxer small fixed leaf
(see Chapter 6.1.3)
9a Sliding lever GF (L = 317 mm)
9b Sliding lever SF (L = 240 mm)

for GEZE Boxer size 2-4
ISM Boxer
Fig.: 5.1.1
Fig.: 6.1.1.1
