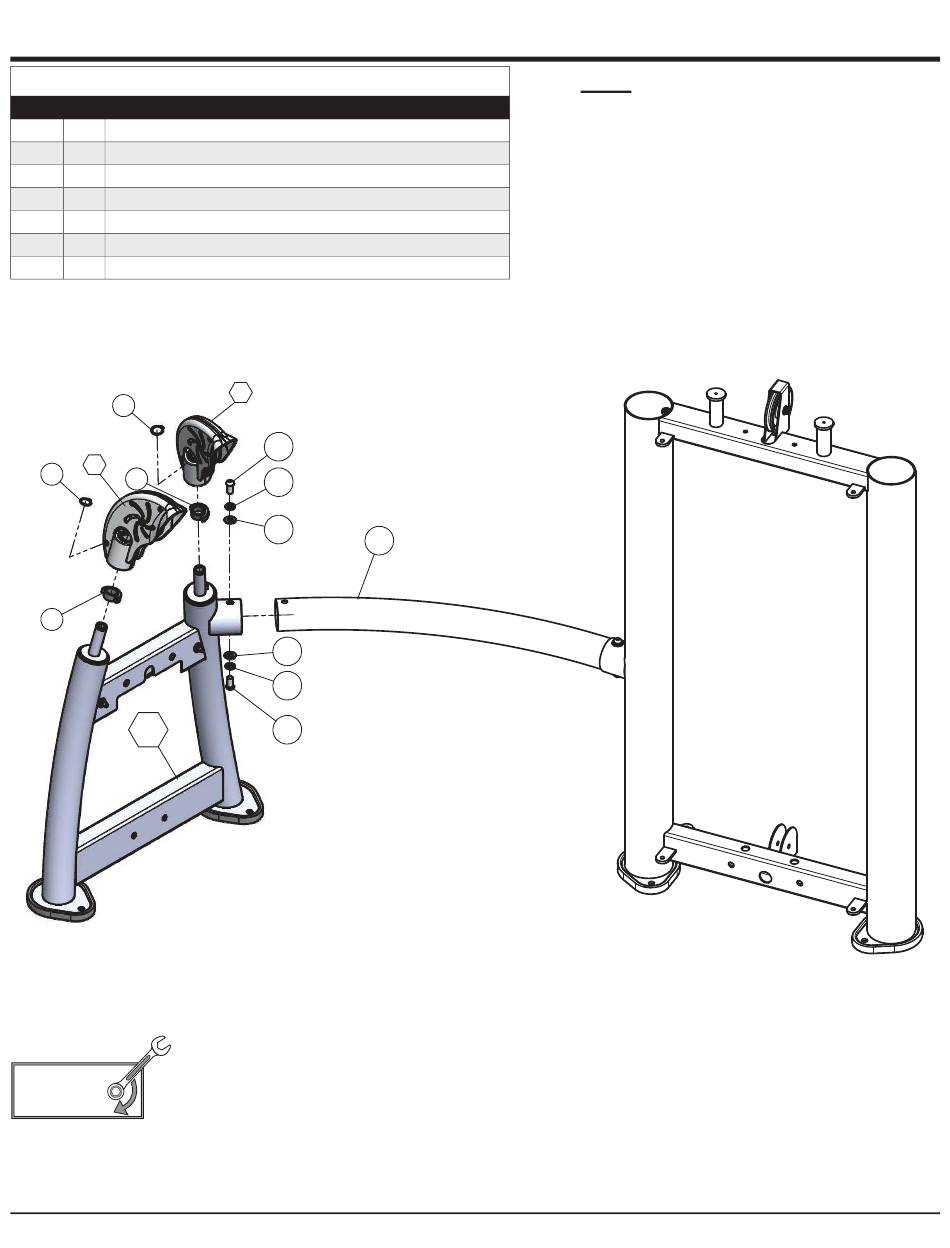

Step 2 - TuffStuff BIO-ARC MID ROW BA-706 Maintenance & Assembly Instructions

Step 2

Step 2
Item Qty. Description
*12 1 MID ROW UPRIGHT FRAME ASM
31 2 BLACK DELRIN SPACER AND RANGE LIMITER, 1" ID
37 2 BUTTON HEAD SOCKET CAP SCREW Z/P 1/2-13 X 1
53 2 FLAT WASHER SAE Z/P 1/2"
94 2 RETAINING SNAP RING EXT. PLAIN .925 X 1 X .042
101 2 SPLIT LOCK WASHER Z/P 1/2"
*115 2 SWIVEL PULLEY BRACKT NCB ASM
94
*4
94
31
31
*12
Loosely Tighten
70%
Loosely tighten all hardware in this step.
DO NOT Fully Tighten. Some component(s)
may need pre-assembly and or alignment
during the assembly process.
www.tuffstuffi tness.com
14
Assembly List
*4
37
53
101
21
101
53
37
Note:
It is strongly recommended that two
people participate in this assembly step.
BA-706 BIO-ARC MID ROW
