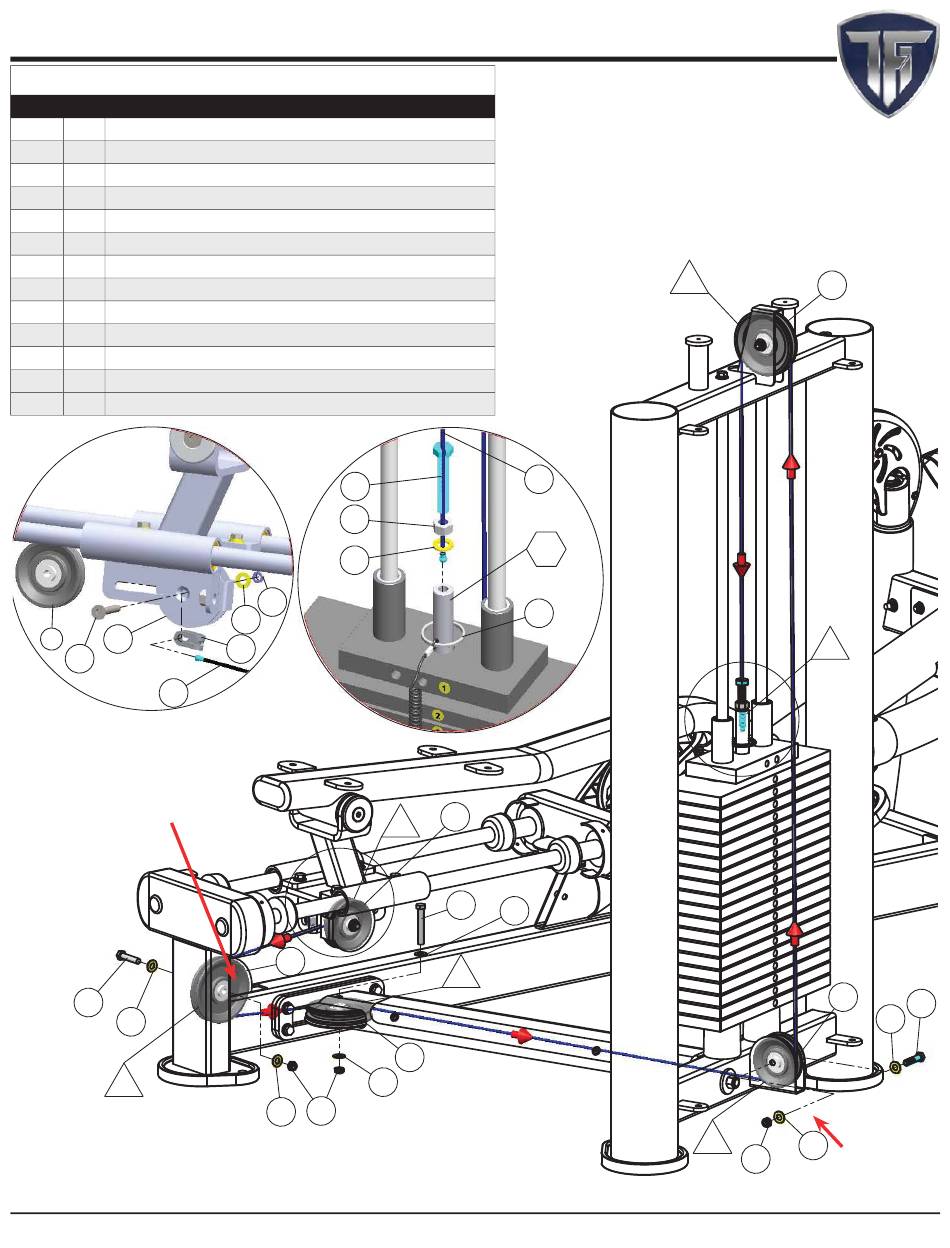

Step 9
Step 9
Item Qty. Description
22 1 MIDROW WEIGHT STACK CABLE
32 2 BLACK NYLON PULLEY 3/8 X 1 X 3 1/2
34 3 BLACK NYLON PULLEY 3/8 X 1 X 4 1/2
44 1 FINISHED HEX NUT Z/P 1/2-13
48 1 FLAT HEAD SOCKET CAP SCREW Z/P 3/8-16 X 2 3/4
54 7 FLAT WASHER SAE Z/P 3/8"
60 2 HEX HEAD CAP SCREW Z/P 3/8-16 X 1 3/4
62 1 HEX HEAD CAP SCREW Z/P 3/8-16 X 2 1/2
89 4 NYLON INSERT THIN PATTERN LOCK NUT Z/P 3/8-16
99 1 SPLIT BOLT Z/P 1/2-13 X 3 1/2 (RND CUT)
101 1 SPLIT LOCK WASHER Z/P 1/2"
103 1 STRAP BRACKET 20 #SF20 STAINLESS STEEL
*109 1 10 LB TOP PLATE W/ADJ SLTR BAR 19X 3/4 WTS ASM
32 3
48
22
Pull cable out
60
54
B
Note:
1. Tie guide wire to cable end and pull it out as indicated above.
2. Make sure cable runs on the pulleys.
3. Adjust cable tension on top plate bolt #99.
BA-706 BIO-ARC MID ROW
Assembly List
99
44
101
89
54
103
A
34
34
54
89
54
22
*109
10
32
62
54
C
www.tuffstuffi tness.com
E
34
F
32
D
54
Tie cable here
89
60
54
21
