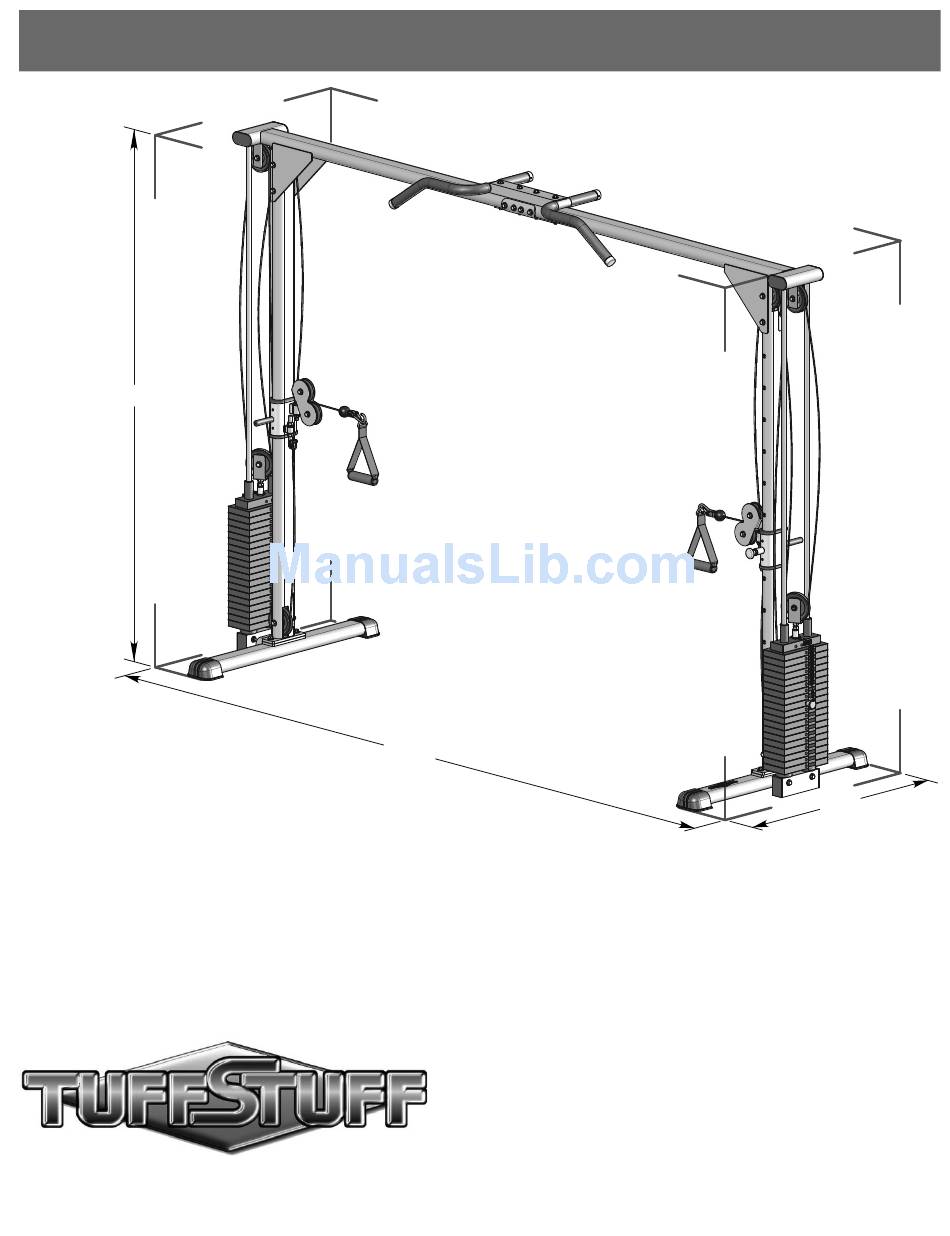

- Page 1 O W N E R ’ S M A N U A L 84 1/2" 123" 38" RCO-140WS Crossover Pulley W/2 X 200 Lbs Steel Weight Stack ’ MERICA REMIER XERCISE QUIPMENT RCO-140WS Rev0 Revision Date 5-30-2007...
-
Page 2: Step 1 Assembly List
Introduction bout the RCO-140WS Crossover Pulley W/2 X 200 Lbs Steel rior to the Assembly of the Crossover Pulley W/2 X 200 Lbs Weight Stack Steel Weight Stack Congratulations on your new purchase of the Crossover Pulley 1. We advise you to consult your local Tuff Stuff retailer if you should W/2 X 200 Lbs Steel Weight Stack. - Page 3 HEX HEAD CAP SCREW 3/8-16 X 1 HEX HEAD CAP SCREW 3/8-16 X 4 1/2 NYLON INSERT JAM LOCK NUT 3/8-16 SPLIT LOCK WASHER 3/8” Note: Exert caution when inserting the Carriages onto the Uprights RCO-140WS Crossover Pulley W/2 X 200 Lbs Steel Weight Stack...
- Page 4 FLAT WASHER SAE 3/8” HEX HEAD CAP SCREW 3/8-16 X 1 3/4 HEX HEAD CAP SCREW 3/8-16 X 2 3/4 HEX HEAD CAP SCREW 3/8-16 X 5 NYLON INSERT JAM LOCK NUT 3/8-16 RCO-140WS Crossover Pulley W/2 X 200 Lbs Steel Weight Stack...
- Page 5 FIG. A FIG. B FIG. C RLM-855WS Lat Machine W/200 Lbs Steel Weight Stack...
- Page 6 FLAT WASHER SAE 3/8” HEX HEAD CAP SCREW 3/8-16 X 2 1/2 NYLON INSERT JAM LOCK NUT 3/8-16 Note: Lift the Guide Rods to allow the insertion of the Hex Head Cap Screws RCO-140WS Crossover Pulley W/2 X 200 Lbs Steel Weight Stack...
-
Page 7: Parts List
HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 1 3/4 BNH2040 TUFFSTUFF LOGO ALUMINUM SMALL BNH1323 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 2 1/2 BNH2044 COIL CHAIN Z/P 3/16 X 12 BNH2055 RCO-140WS Crossover Pulley W/2 X 200 Lbs Steel Weight Stack... - Page 8 TuffStuff. Limitations: The foregoing shall constitute the sole remedy of the purchaser and the sole liability of TuffStuff with regard to warranty, whether express or implied by operation of law or otherwise, including but not limited to any implied warranties of merchantability or fitness.
- Page 9 NYLON D HANDLE (# H834A) NYLON INSERT LOCK NUT 5/16-18 SHOULDER BOLT ALLOY 3/8 X 3/4 SNAP LINK 8MM X 80MM SOCKET SET SCREW 3/8-16 X 3/4 STRAP BRACKET 20 #SF20 RCO-140WS Crossover Pulley W/2 X 200 Lbs Steel Weight Stack Fold-out Page 7...
- Page 10 RCO-140WS Exploded View Diagram 44 29 Unfold Page Fold-out Page 8 RCO-140WS Crossover Pulley W/2 X 200 Lbs Steel Weight Stack...
