TuffStuff BIO-ARC MID ROW BA-706 Maintenance & Assembly Instructions page 16

Step 4
Step 4
Item Qty. Description
*4 1 BOTTOM CROSS BRACE (ROW/LAT) ASM
53 2 FLAT WASHER SAE Z/P 1/2"
54 4 FLAT WASHER SAE Z/P 3/8"
55 2 FLAT WASHER Z/P 1/2 X 1 3/4 X 3/16
56 2 HEX HEAD CAP SCREW Z/P 1/2-13 X 3 1/4
59 4 HEX HEAD CAP SCREW Z/P 3/8-16 X 1 1/4
86 2 NYLON INSERT LOCK NUT Z/P 1/2-13
102 4 SPLIT LOCK WASHER Z/P 3/8"
Note:
It is strongly recommended that two
people participate in this assembly step.
Fully Tighten
100%
Proceed to inspect; align and wrench tighten ALL hardware
assemblies specially those left loosely fasten, making sure
the unit is assembled square and perpendicular.
www.tuffstuffi tness.com
16

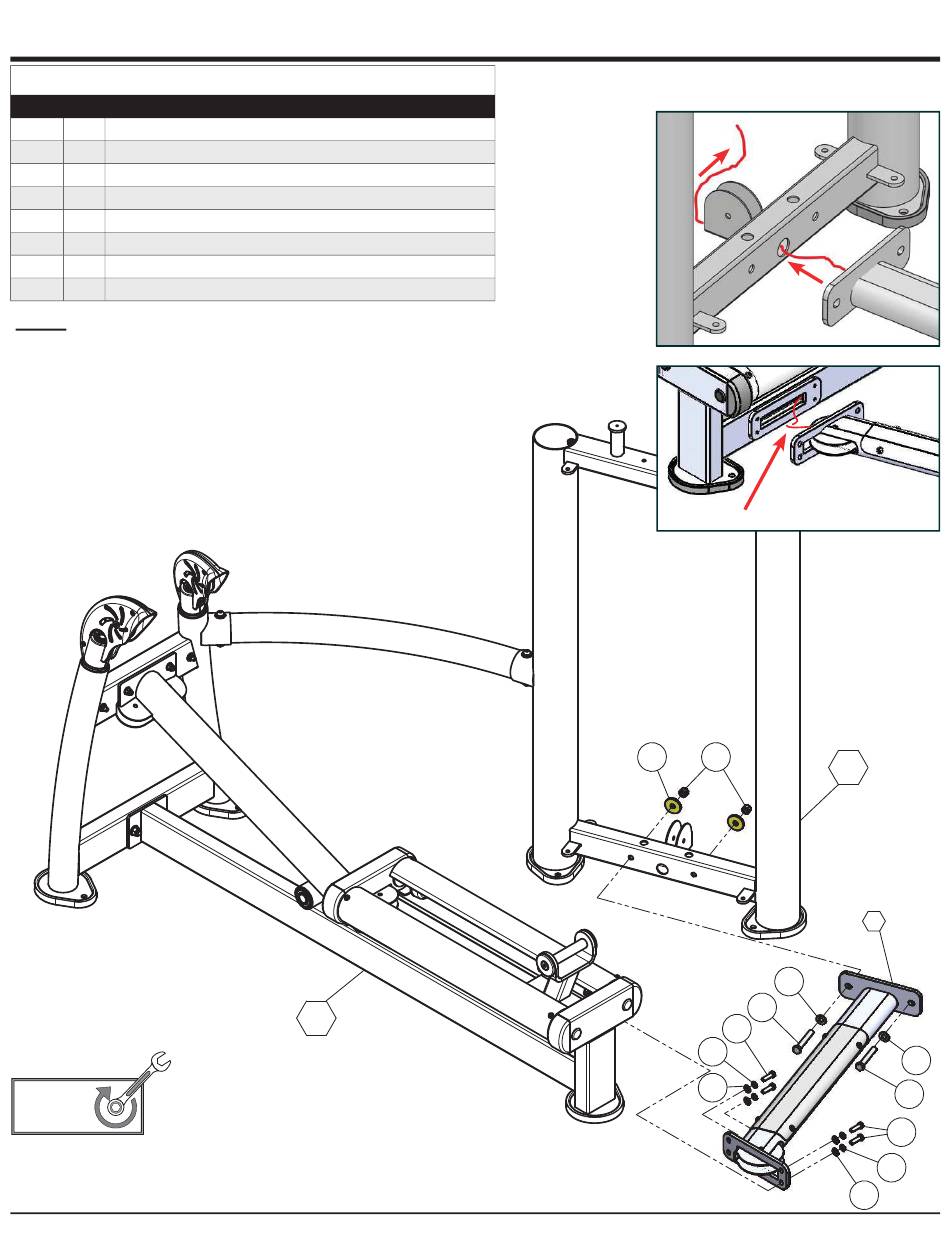

Assembly List
*11
Run guide wire through
hole in frame as shown below.
Tie guide wires together
55 86
53
56
59
102
54
BA-706 BIO-ARC MID ROW
*25
*4
53
56
59
102
54
