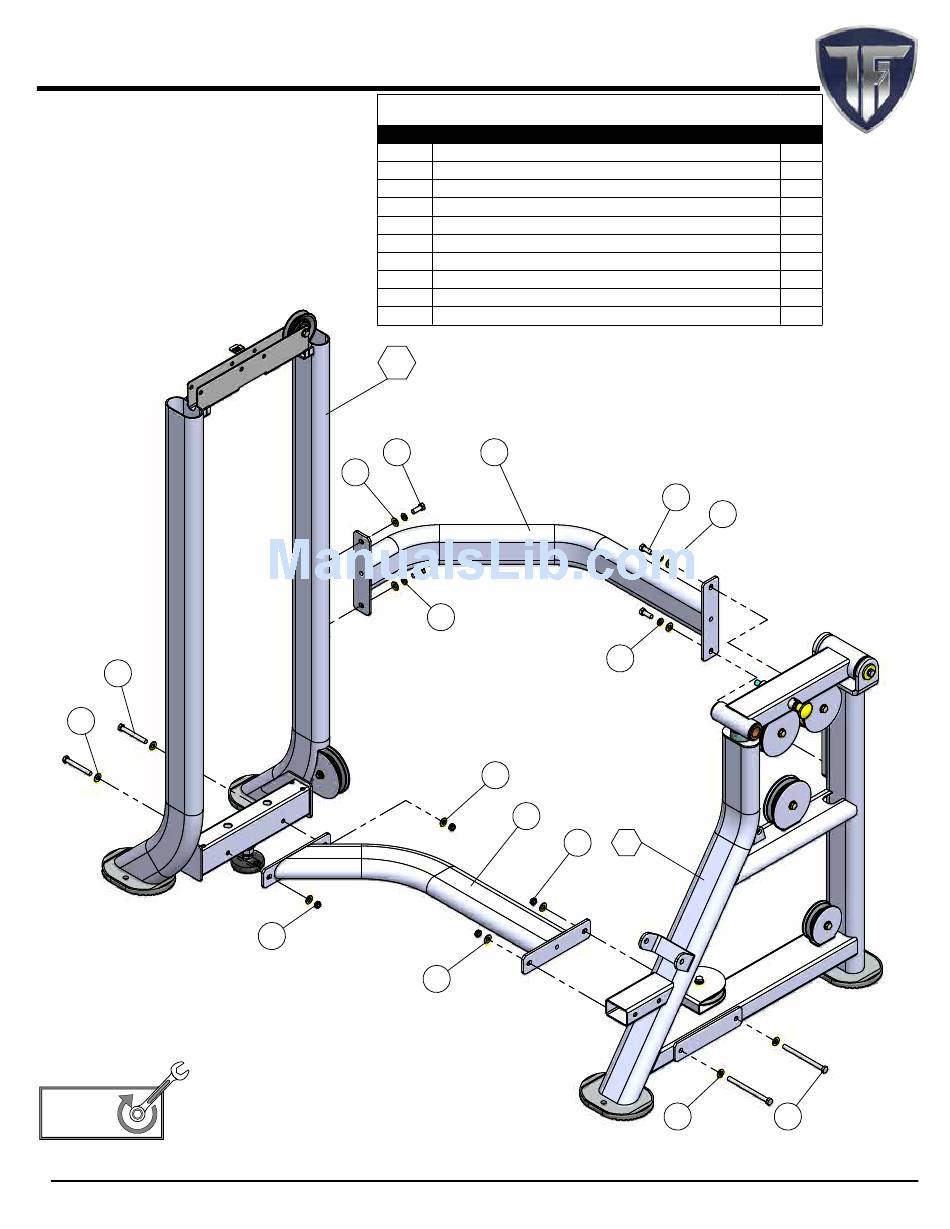

Step 1

NOTE:
1. It is strongly recommended that 2
people participate in the assembly of
this unit.
2. Be sure to hold the weight stack frame
perpendicular to floor before tightening
the screws.
47
39
Fully Tighten
100%
Fully Tighten
Wrench tighten all hardware in this step.
CG-9503 MULTI-PRESS
Item #
3 BOTTOM CROSS BRACE
*7 MAIN FRAME
12 REAR CROSS BRACE
19 WEIGHT STACK FRAME
39 FLAT WASHER SAE Z/P 3/8"
43 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 1
47 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 3
50 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 5
57 NYLON INSERT THIN PATTERN LOCK NUT Z/P 3/8-16
68 SPLIT LOCK WASHER Z/P 3/8"
*19
43
39
68
57
39
Step 1 Assembly List
Description
12
68
39
3
57 *7
www.tuffstuffitness.com
Qty.
1
1
1
1
12
4
2
2
4
4
43
39
39 50
13
