TuffStuff BIO-ARC MID ROW BA-706 Maintenance & Assembly Instructions page 18

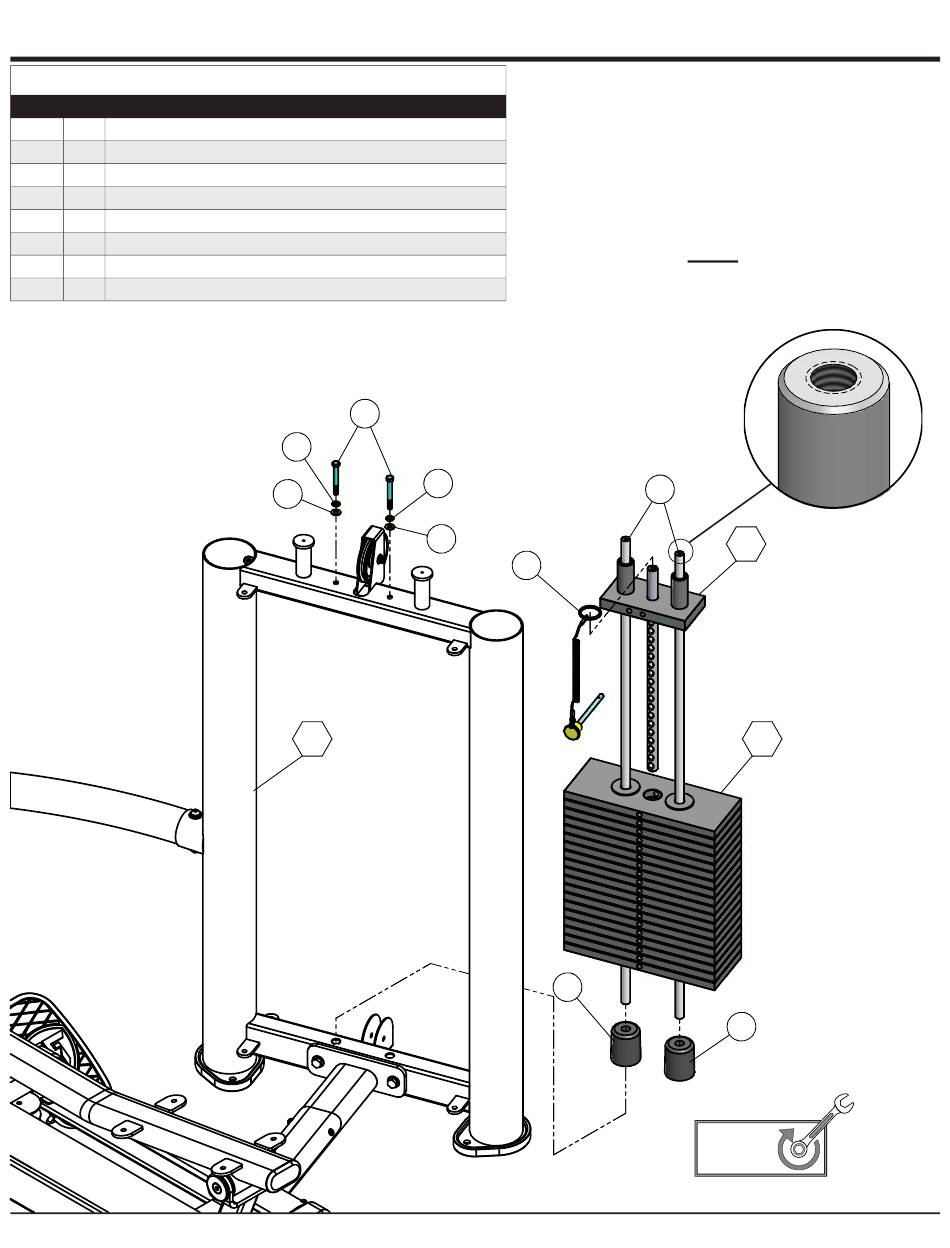

Step 6
Step 6
Item Qty. Description
9 2 GUIDE ROD 3/4 X 47 3/4
10 1 MAGNETIC SELECTOR PIN W/COIL 3/8 X 5
54 2 FLAT WASHER SAE Z/P 3/8"
64 2 HEX HEAD CAP SCREW Z/P 3/8-16 X 3
96 2 RUBBER DONUT 3/4 RD ID X 2 1/2 RD OD X 3
100 2 SPLIT LOCK WASHER Z/P 3/8"
*109 1 10 LB TOP PLATE W/ADJ SLTR BAR 19X 3/4 WTS ASM
*110 19 15 LB STEEL WT PLATE W/FLANGED BSNGS ASM
www.tuffstuffi tness.com
18
Assembly List
64
100
54
*25
100
54
10
96
Note:
Threaded Sockets toward
the top of the unit.
9
*109
*110
96
Fully Tighten
100%
Wrench tighten all hardware in this step.
BA-706 BIO-ARC MID ROW
