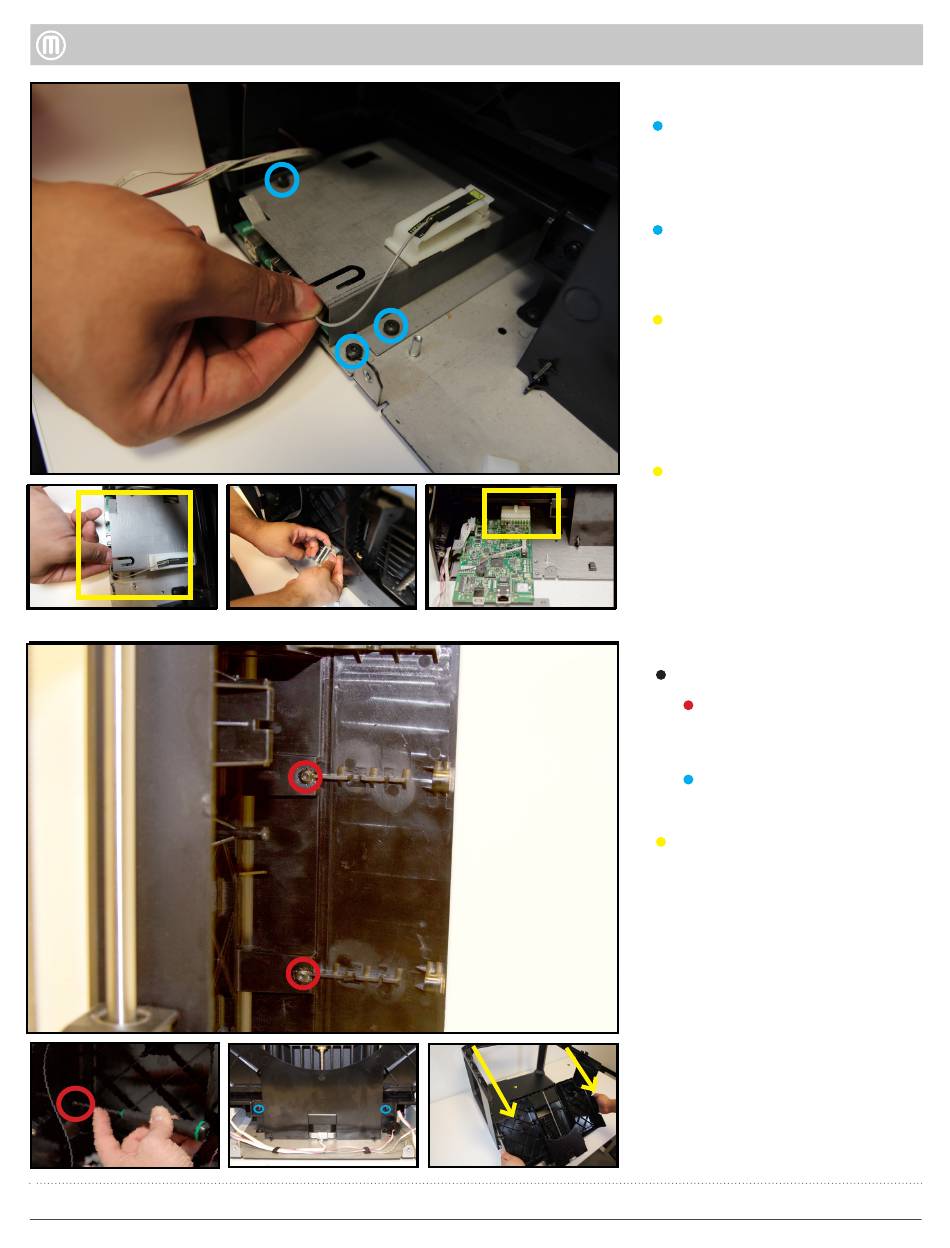

Step 11 -Remove Brooklyn PCB
Unplug the HDMI Cable and
remove the Electrostatic Discharge
Cover (ESD). Remove the two (2)
button heads using a T20.
Remove the one (1) button head
attaching the PCB Adapter Plate
to the Base Plate.
Gently lift the ESD cover and
unplug the WiFi Antenna. Next
open the white cable clip located
on the top of the ESD cover and
remove the Motor Cable Harness.
Unplug the Z-Motor and set aside.
Pull the Brooklyn PCB towards
yourself to give some slack. Press
down the white tab on the 20 pin
Power Supply connector and pull
out of Brooklyn PCB. Slide out of
metal slot to remove.
Step 12 - Remove the Z-Case
Remove the following screws:
Four (4) thread forming screws
that attach the Z-Back to the side
panels
Two (2) button heads that attach
the Z-Back to the Floor Plate.
Pull Z-back towards you
away from the body of the
Replicator+and set aside.
