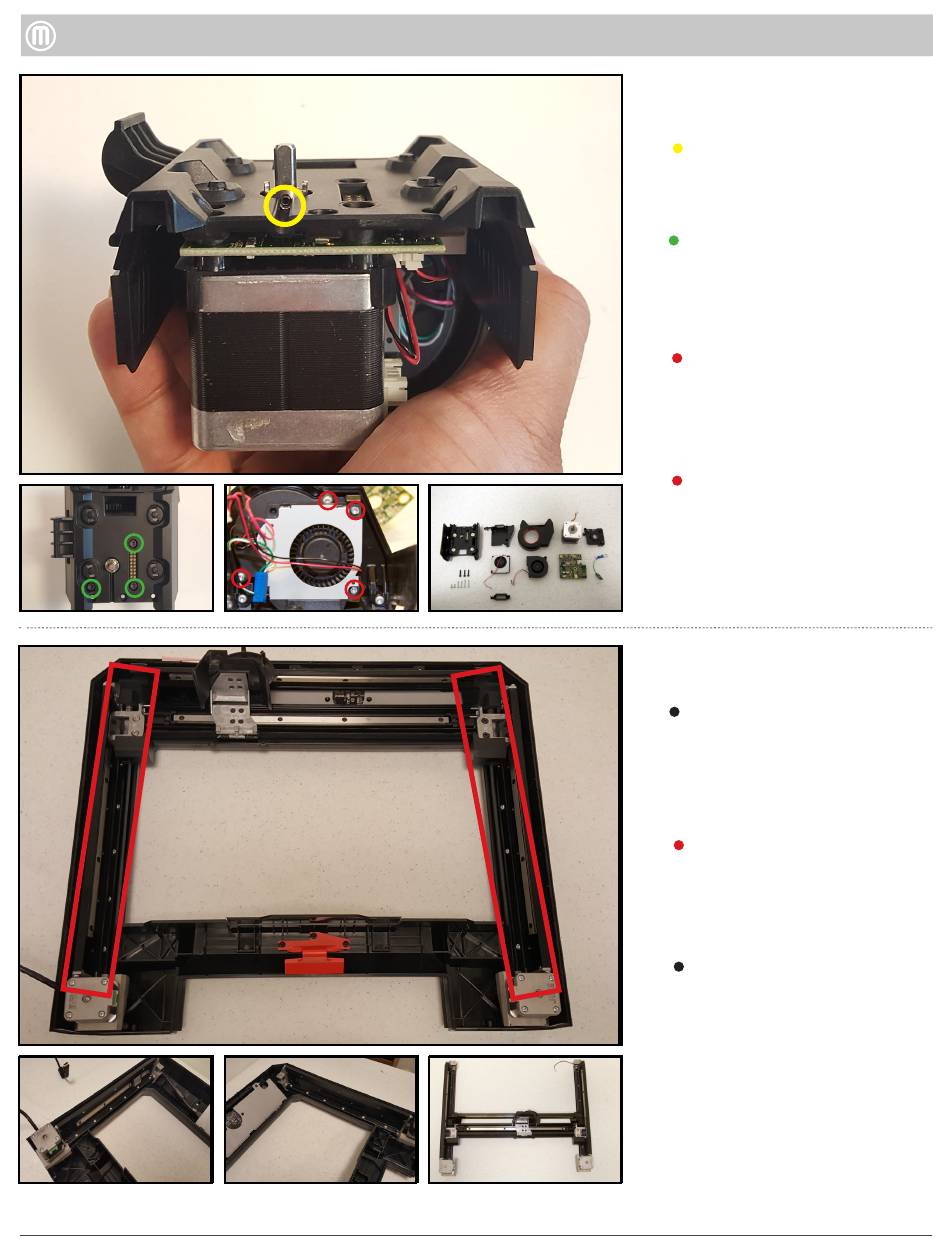

Step 7 -Disassemble Carriage
Assembly (optional)
Remove loosen up the set screw
holding the castle nut on to the
motor axle.
Remove the three (3) socket cap
screws attaching the motor to the
Carriage assembly and set
motor aside.
Remove the two (2) silver thread
forming screws attaching the
Extruder Fan to the fan mount and
set aside.
Remove the two (2) silver thread
forming screws attaching the
Active Cooling Fan to the fan
mount and set aside.
Step 8 - Remove Gantry
Assembly
Note: For this example we have
removed the X Gantry Extrusion
for better visual access to the
screws that will need to be
removed.
Remove six (12) thread forming
screws that attach the Gantry
Assembly to the Top Cover of the
Replicator+ using a T15 Torx Driver
Lift Gantry Assembly and set
6
