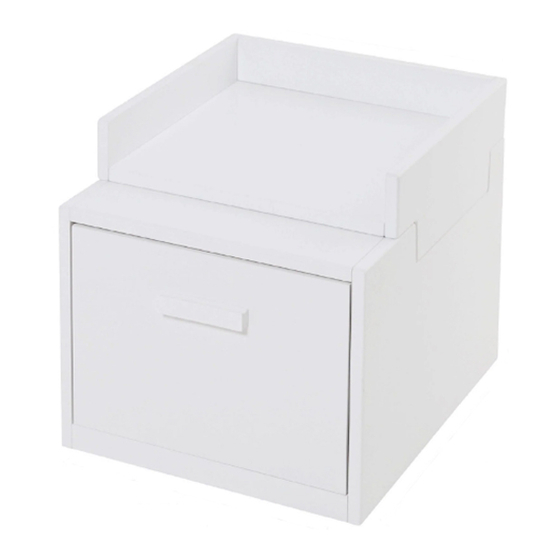

Alba Narrow - Toybox & Top Shelf, White
L4464
Assembly Difficulty
one-person job
easy -
medium
- hard
Thank you for shopping with GLTC, we hope you enjoy
having this product in your home.
We know assembling furniture, toys or accessories is not everyone's
favourite way to spend their time, so we've tried to make assembling
this item as quick and painless as possible.
Hopefully our efforts will have been worthwhile and you'll sail
through the whole process. But if it all feels a bit too much
like hard work, then we do have an assembly company we
can recommend: the Flatpack Construction Company offers a
nationwide service and can be contacted on 0843 289 4951 or
www.flatpackconstruction.co.uk.
A few important pointers before you start:
•
Please read the instructions right through before you start, and check
that all the components have been included in the pack; we find
separating all the hardware into piles makes it easier to be sure that
everything is present and correct.
•
Make sure you have the right tools. Allen keys are provided if required,
but screw drivers and other tools are not. You'll find details of the
tools you need at the beginning of the instructions.
•
It's a good idea to build the unit in the room where you are going to be
using it, to avoid the need to move it after it's been assembled.
•
Do not throw away any packing materials until assembly is complete,
just in case you accidentally discard smaller parts or hardware.
V1
29/05/2019
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Great Little Trading Alba Narrow Toybox & Top Shelf
Summary of Contents for Great Little Trading Alba Narrow Toybox & Top Shelf
- Page 1 Thank you for shopping with GLTC, we hope you enjoy having this product in your home. We know assembling furniture, toys or accessories is not everyone’s favourite way to spend their time, so we’ve tried to make assembling this item as quick and painless as possible. Hopefully our efforts will have been worthwhile and you’ll sail Alba Narrow - Toybox &...
-
Page 2: Safety Warnings
Safety Warnings: • To Avoid possible injury from tipping - DO NOT allow children to step • Please read these instructions carefully before assembly. or climb on the product. • Warning! Not suitable for children under 3 years due to small parts •... -
Page 3: Component Checklist
Component Check List Component Check List 18x CamDowels 18x Wooden Dowels 1x Top Shelf - Back Upstand 1x Top Shelf - Base 35mmL 25mmL 1x Top Shelf - LH Side Panel 1x Top Shelf - RH Side Panel 18x Cam Locks 8x Domed Head Screws 12mmL 14mmL... - Page 4 Hardware for Step 1: STEP 3: IMPORTANT: Make sure that the small drill holes Insert 2x wooden dowels (#2) into the innermost holes on BOTH edges of on the edge of panel A are next to the connection 2x #2 Wooden Dowels to panel B - they will be needed at a later step.
- Page 5 STEP 5: Now build the Toy Box Surround. Attach the flat runners (#6) to the toy box side panels G & H using the flat head screws (#5). The position of the runners is important. - The wheel of the runner needs to be at the front of the panels (with the flat edge) and close to the straight edge of the panel (this is the base edge).
- Page 6 Hardware for Step 6: Hardware for Step 7: 4x #2 Wooden Dowels 4x #2 Wooden Dowels Grooved edges on panels to line up 4x #3 Cam Locks 4x #3 Cam Locks BACK BASE BASE FRONT STEP 6: STEP 7: Lay side panel G down and insert 4x wooden dowels (#2) into the holes in the four Insert 4x wooden dowels (#2) into the outer drill holes on the edges of corners of the panel.
- Page 7 Hardware for Step 9: Hardware for Step 8: 6x #5 Flat Head Screws 8x #4 Domed Head Screws 2x #7 L-Shaped runners STEP 9: Make the toy box drawer. Attach the L-shaped runners (#7) to the drawer side panels J & K with the flat head screws (#5).
- Page 8 Hardware for Step 10: Hardware for Step 12: 2x #2 Wooden Dowels 4x #1 Cam dowels 4x #10 Screws 2x #9 Flat ended screws 1x #8 Handle STEP 10: Add the back panel L to the drawer sides. Line up the grooves on the inside of the drawer and use a wooden dowel (#2) to position the back panel L against the side panel J.
- Page 9 Insert 4x cam locks into the holes on panels J & K and lock to secure. Copyright© 2019 G.L.T.C. Ltd. All rights reserved. Great Little Trading Company and GLTC are registered trade marks of G.L.T.C. Limited.
