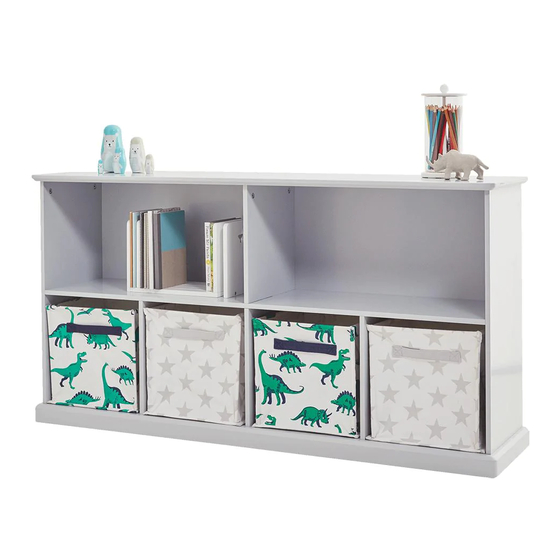

Abbeville Storage - Long Shelf Unit
Assembly Difficulty
two-person job
easy -
medium
- hard
Thank you for shopping with GLTC, we hope you enjoy having
this product in your home.
We know assembling furniture, toys or accessories is not everyone's
favourite way to spend their time, so we've tried to make assembling
this item as quick and painless as possible.
Hopefully our efforts will have been worthwhile and you'll sail through
the whole process. But if it all feels a bit too much like hard work, then
we do have an assembly company we can recommend: the Flatpack
Construction Company offers a nationwide service and can be
contacted on 0843 289 4951 or www.flatpackconstruction.co.uk.
Good luck!
A few important pointers before you start:
It might be worth checking on our website that there are no updates
or revisions to these instructions (if we have had helpful feedback from
other customers we pass it on via the product web page). Simply check
the date and version number on the front of this leaflet against that of
any site updates.
Please read the instructions right through before you start, and check
that all the components have been included in the pack; we find
separating all the hardware into piles makes it easier to be sure that
everything is present and correct.
Make sure you have the right tools. Allen keys are provided if required,
but screw drivers and other tools are not. You'll find details of the
tools you need at the beginning of the instructions.
It's a good idea to build the unit in the room where you are going to be
using it, to avoid the need to move it after it's been assembled.
V4
Do not throw away any packing materials until assembly is complete,
just in case you accidentally discard smaller parts or hardware.
25/10/2017
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Abbeville L4406 and is the answer not in the manual?

Questions and answers

Summary of Contents for Great Little Trading Abbeville L4406

  • Page 1 Thank you for shopping with GLTC, we hope you enjoy having this product in your home. We know assembling furniture, toys or accessories is not everyone’s favourite way to spend their time, so we’ve tried to make assembling this item as quick and painless as possible. Hopefully our efforts will have been worthwhile and you’ll sail through Abbeville Storage - Long Shelf Unit the whole process.
  • Page 2: Customer Service

    Safety Warnings: Customer Service: • If you find that any components are missing or damaged, please do • Adult assembly required. not begin assembly and do not use the item. Please contact GLTC • Unassembled product contains small parts which may present a Customer Services on 0344 848 6000 immediately.
  • Page 3: Component Checklist

    Component Check List Component Check List 14x Cam Dowels 14x Cam Locks 1x Shelf Panel 1x Large Divider Panel 35mmL 14mm Diameter 24x Wooden Dowels 10x Barrel Nuts 2x Small Divider Panels 1x RH Side Panel 20mmL 10x Threaded Bolts 18x Screws 1x LH Side Panel 1x Base Panel...
  • Page 4 NOTE: STEP 2: You will be building this unit face down. To make later steps easier and also to protect Slot in the larger divider panel B, making sure the smaller drill holes are positioned at the product during the building process, we suggest laying the polystyrene packing the base end (the holes are visible on the other side of the panel).
  • Page 5 STEP 3: STEP 4: Position the two smaller divider panels C as shown, again ensuring that the smaller Prepare both side panels. holes are at the base of the unit. When the panels are in place over the fixed hardware and the wooden dowels, insert cam locks into the large drill holes of the divider panels and turn clockwise to secure.
  • Page 6 STEP 6: STEP 5: Position the LH side panel E on the unit with the smaller drill holes at the base of the Position the RH side panel D on the unit with the smaller drill holes positioned at the unit and the grooved edge facing upwards.
  • Page 7 STEP 7: STEP 8: Attach the base panel F to the rest of the unit using wooden dowels, bolts and barrel Prepare the top panel G. nuts as shown. Tighten the bolts using the Allen key provided. BASE BASE NOTE: Hardware for Step 7: This is where it helps building on the polystyrene packaging.
  • Page 8 STEP 10: STEP 9: Attach the back panels using the longer, thinner screws (#6). Please note that the Position the top panel G onto the unit using the fixed hardware and wooden dowels. 2x pilot holes indicated at the top of the unit are to attach anti-tip straps included Once in place, insert 6x cam dowels into the larger holes on the side and divider separately with this item.
  • Page 9 Attach the anti tip straps to the back of the unit using the remaining drill holes. For details on securing the unit to the wall see the anti-tip kit guidance. Copyright© 2016 G.L.T.C. Ltd. All rights reserved. Great Little Trading Company and GLTC are registered trade marks of G.L.T.C. Limited.
